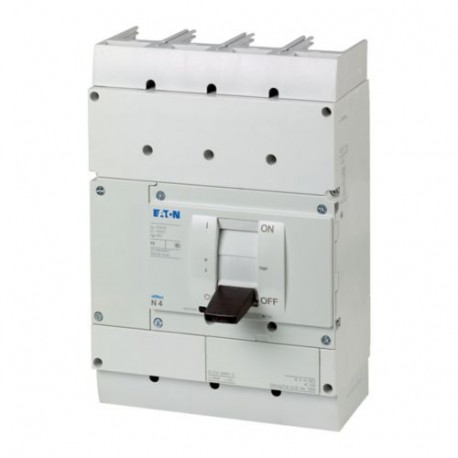

N4-4-1600 266032 Y7-266032 EATON ELECTRIC Sezionatore di potenza 4p 1600A BG4
N4-4-1600
266032
Y7-266032
EATON-MOELLER
Sezionatore di potenza 4p 1600A BG4
Sezionatore Internazionale Tipo N, 4P 1600A
Eaton Moeller series NZM - Molded Case Circuit Breaker. Switch-disconnector 4p 1600A BG4
Interruttori-sezionatori N.. - Rispettare le proprietà di isolamento anche per le reti IT con messa a terra. Accessori come i kit di ponticelli, i terminali di collegamento e le maniglie di accoppiamento delle porte girevoli consentono l'installazione individuale in un'ampia varietà di sistemi di distribuzione. Interruttori ausiliari, sganciatori di tensione e operatori remoti facilitano la segnalazione e l'automazione. Note: Caratteristiche principali dell'interruttore, incluso l'azionamento positivo secondo IEC/EN 60204 e VDE 0113. Caratteristiche di isolamento secondo IEC/EN 60947-3 e VDE 0660. Coperchio dell'etichetta delle sbarre secondo VDE 0160 parte 100.
Apparecchi elettrici a bassa tensione > Sezionatore
Interruttori automatici con custodia modellata NZM
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series NZM switch-disconnector
Catalog Number
266032
EAN
4015082660321
Product Length/Depth
401 mm
Product Height
207 mm
Product Width
280 mm
Product Weight
22 kg
Compliances
RoHS conform
Certifications
IEC/EN 60947
IEC
IEC
Model Code
N4-4-1600
Specifiche del prodotto
Type
Switch-disconnector
Special features
Application
Use in unearthed supply systems at 525 V
Amperage Rating
1600 A
Voltage rating
690 V - 690 V
Circuit breaker frame type
N4
Features
Version as main switch
Version as emergency stop installation
Motor drive optional
Version as maintenance-/service switch
Version as emergency stop installation
Motor drive optional
Version as maintenance-/service switch
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
3
Mounting Method
Fixed
Ground mounting
Intermediate mounting
Distribution board installation
Built-in device fixed built-in technique
Ground mounting
Intermediate mounting
Distribution board installation
Built-in device fixed built-in technique
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Equipment heat dissipation, current-dependent
284 W
Isolation
300 V AC (between the auxiliary contacts)
500 V AC (between auxiliary contacts and main contacts)
500 V AC (between auxiliary contacts and main contacts)
Rated short-time withstand current (Icw)
25 kA
Degree of protection
IP20 (basic protection type, in the area of the HMI devices)
Other
Other
Direction of incoming supply
As required
Electrical connection type of main circuit
Bolt connection
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-40 °C
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Protection against direct contact
Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 263
Rated insulation voltage (Ui)
1000 V
Rated operating frequency
50 Hz
Rated operating power at AC-23, 400 V
800 kW
Rated operating power at AC-3, 400 V
0 kW
Switch positions
I, +, 0
Lifespan, mechanical
10000 operations
Overvoltage category
III
Rated operational current
1600 A (415 V AC-22/23A, making and breaking capacity)
1600 A (690 V AC-22/23A, making and breaking capacity)
1600 A (690 V AC-22/23A, making and breaking capacity)
Degree of protection (IP), front side
IP20
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and band terminal)
IP10 (tunnel terminal)
IP10 (tunnel terminal)
Number of poles
Four-pole
Terminal capacity (copper strip)
10 segments of 80 mm x 1 mm (2x) at rear-side width extension
Max. 10 segments of 32 mm x 1 mm (2x) at flat conductor terminal
10 segments of 50 mm x 1 mm (2x) at 1-hole module plate
Max. 10 segments of 50 mm x 1 mm (2x) at rear-side connection (punched)
Min. 10 segments of 50 mm x 1 mm (2x) at rear-side connection (punched)
Min. 6 segments of 16 mm x 0.8 mm at flat conductor terminal
Max. 10 segments of 32 mm x 1 mm (2x) at flat conductor terminal
10 segments of 50 mm x 1 mm (2x) at 1-hole module plate
Max. 10 segments of 50 mm x 1 mm (2x) at rear-side connection (punched)
Min. 10 segments of 50 mm x 1 mm (2x) at rear-side connection (punched)
Min. 6 segments of 16 mm x 0.8 mm at flat conductor terminal
Handle color
Black
Lifespan, electrical
2000 operations at 415 V AC-3
1000 operations at 690 V AC-3
3000 operations at 400 V AC-1
3000 operations at 415 V AC-1
2000 operations at 400 V AC-3
2000 operations at 690 V AC-1
1000 operations at 690 V AC-3
3000 operations at 400 V AC-1
3000 operations at 415 V AC-1
2000 operations at 400 V AC-3
2000 operations at 690 V AC-1
Functions
Disconnectors/main switches
Interlockable
Voltage release optional
Interlockable
Voltage release optional
Shock resistance
15 g (half-sinusoidal shock 11 ms)
Number of switches
1
Rated conditional short-circuit current (Iq)
0 kA
Rated conditional short-circuit current with back-up fuse
100 kA at 400/415 V
N4-630…1600: 2 x 800 AgGgL
80 kA at 690 V
N4-630…1600: 2 x 800 AgGgL
80 kA at 690 V
Rated conditional short-circuit current with downstream fuse
80 kA at 690 V
N4-630…1600: 2 x 800 AgGgL
100 kA at 400/415 V
N4-630…1600: 2 x 800 AgGgL
100 kA at 400/415 V
Rated operating voltage (Ue) at AC - max
690 V
Rated operational current for specified heat dissipation (In)
1600 A
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
0 A
Rated short-time withstand current (t = 0.3 s)
25 kA
Rated short-time withstand current (t = 1 s)
25 kA
Switching power at 400 V
0 kW
Handle type
Rocker lever
Number of operations per hour - max
60
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
53 kA
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Standard terminals
Screw terminal
Optional terminals
Connection on rear. Strip terminal. Tunnel terminal
Short-circuit protective device fuses - max
1600 A gL
Terminal capacity (copper busbar)
Max. 50 mm x 10 mm (2x) at rear-side 1-hole module plate
Max. 80 mm x 10 mm (2x) at rear-side width extension
50 mm x 10 mm (2x) at rear-side 2-hole module plate
Min. 60 mm x 10 mm at rear-side width extension
Max. 50 mm x 10 mm (2x) direct at switch rear-side connection
Min. 25 mm x 5 mm at rear-side 1-hole module plate
Min. 25 mm x 5 mm direct at switch rear-side connection
M10 at rear-side screw connection
Max. 80 mm x 10 mm (2x) at rear-side width extension
50 mm x 10 mm (2x) at rear-side 2-hole module plate
Min. 60 mm x 10 mm at rear-side width extension
Max. 50 mm x 10 mm (2x) direct at switch rear-side connection
Min. 25 mm x 5 mm at rear-side 1-hole module plate
Min. 25 mm x 5 mm direct at switch rear-side connection
M10 at rear-side screw connection
Terminal capacity (copper solid conductor/cable)
300 mm² (4x) at rear-side width extension
50 mm² - 240 mm² (4x) at 4-hole tunnel terminal
50 mm² (4x) at rear-side 2-hole module plate
95 mm² - 240 mm² (6x) at rear-side width extension
35 mm² - 185 mm² (4x) at rear-side 2-hole module plate
70 mm² - 185 mm² (2x) at rear-side 1-hole module plate
185 mm² - 240 mm² (1x) at rear-side 1-hole module plate
50 mm² - 240 mm² (4x) at 4-hole tunnel terminal
50 mm² (4x) at rear-side 2-hole module plate
95 mm² - 240 mm² (6x) at rear-side width extension
35 mm² - 185 mm² (4x) at rear-side 2-hole module plate
70 mm² - 185 mm² (2x) at rear-side 1-hole module plate
185 mm² - 240 mm² (1x) at rear-side 1-hole module plate
Terminal capacity (aluminum solid conductor/cable)
70 mm² - 240 mm² (6x) at rear-side width extension
240 mm² (2x) at rear-side width extension
240 mm² (2x) at rear-side width extension
Terminal capacity (copper stranded conductor/cable)
50 mm² - 185 mm² (4x) direct at switch rear-side connection
120 mm² - 185 mm² (1x) direct at switch rear-side connection
120 mm² - 185 mm² (1x) direct at switch rear-side connection
Terminal capacity (aluminum stranded conductor/cable)
50 mm² - 240 mm² (4x) at 4-hole tunnel terminal
| Caratteristica | Valore |
|---|---|
| versione interruttore principale (EF006981) | Sì |
| versione interruttore di manutenzione/riparazione (EF006986) | Sì |
| versione interruttore di sicurezza (EF006985) | No |
| versione dispositivo di arresto d'emergenza (EF006959) | Sì |
| versione invertitore (EF009408) | No |
| numero di interruttori (EF005586) | 1 |
| max. tensione d'esercizio nominale Ue per AC (EF007355) | 690 V |
| tensione d'esercizio nominale (EF001435) | 690 V |
| corrente nominale permanente per AC-23, 400V (EF011777) | 0 A |
| corrente nominale permanente per AC-21, 400 V (EF009165) | 0 A |
| potenza d'esercizio nominale per AC-3, 400 V (EF001364) | 0 kW |
| resistenza a corrente di breve durata Icw (EF007050) | 25 kA |
| potenza d'esercizio nominale per AC-23, 400V (EF007027) | 800 kW |
| potenza di interruzione a 400 V (EF009166) | 0 kW |
| corrente di corto circuito nominale condizionale Iq (EF001444) | 0 kA |
| numero di poli (EF001391) | 4 |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 0 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 0 |
| numero di contatti ausiliari, invertitori (EF003531) | 0 |
| azionamento a motore opzionale (EF007386) | Sì |
| azionamento a motore integrato (EF006697) | No |
| sganciatore di tensione opzionale (EF007491) | Sì |
| tipologia costruttiva dell'apparecchio (EF008240) | apparecchio da incasso, tecnica a installazione fissa |
| adatto per fissaggio frontale a 4 fori (EF007247) | No |
| adatto per fissaggio frontale centrale (EF007248) | No |
| adatto per montaggio distributore (EF007262) | Sì |
| adatto per costruzione intermedia (EF007264) | Sì |
| colore dell'elemento di azionamento (EF007167) | nero |
| tipo di elemento di azionamento (EF006976) | bilanciere |
| bloccabile (EF006281) | Sì |
| tipo di collegamento circuito elettrico principale (EF006819) | raccordo a bullone |
| con cablaggio premontato (EF016444) | No |
| grado di protezione (IP), lato frontale (EF003118) | IP20 |
| larghezza (EF000008) | 280 mm |
| altezza (EF000040) | 207 mm |
| profondità (EF000049) | 401 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| N4-4-1600 Y7-266032 266032 EN_189634.pdf | 7 Mbytes |
|
Recensioni: (0) ▲
Nessun commento per il momento.
Inserisci recensione
nascondi form
| Valutazione: |
|
| Nome: | |
| Email: | |
| Titolo: | |
| Testo: | |
| Mi consiglia questo prodotto da acquistare? | |
|
|
|
| Inserisci recensione | |
Tutti i feedback che riceviamo dagli elementi che offriamo sono reali e verificati. Un piccolo gesto, ma di grande valore. Quindi grazie per quel minuto si spende in noi lasciare il vostro parere e punteggio sui prodotti, perché ci aiuta a continuare a migliorare e di offrire ancora maggiore qualità del servizio.
