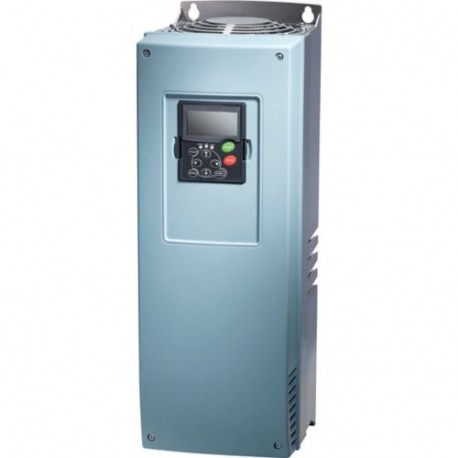

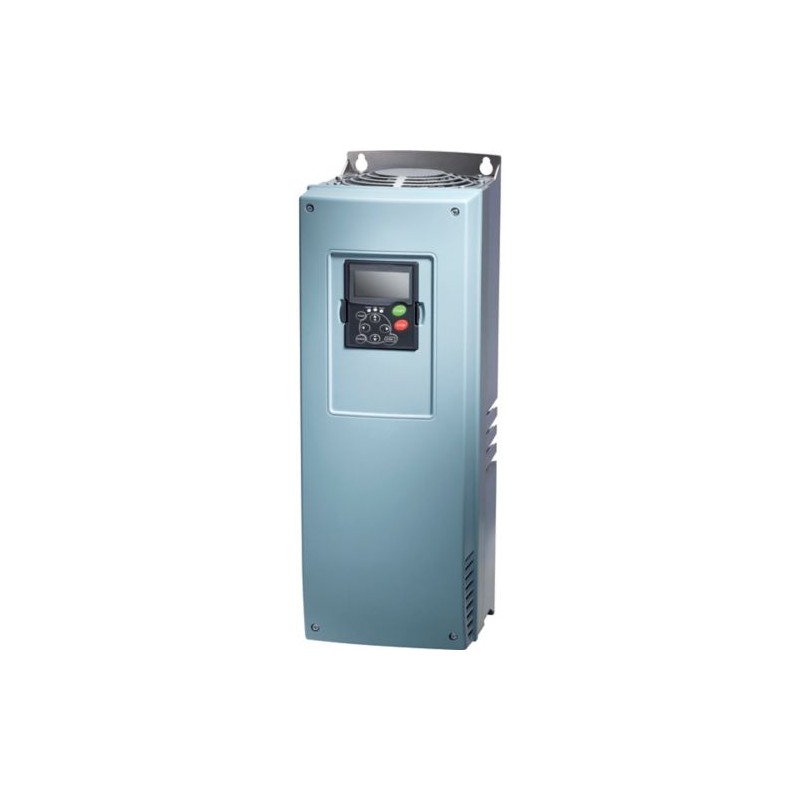

SVX005A1-5A4B2 180538 EATON ELECTRIC Convertitore di frequenza
SVX005A1-5A4B2
180538
EATON-MOELLER
Convertitore di frequenza
SVX FreqD 5.5kW 690V IP21 c/Br c/cappotto
Apparecchi elettrici a bassa tensione > Convertitore di frequenza inferiore a 1 Kv
Convertitori di frequenza Eaton
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton SVX Variable frequency drive
Catalog Number
180538
EAN
4015081757039
Product Length/Depth
558 mm
Product Height
237 mm
Product Width
195 mm
Product Weight
18.5 kg
Certifications
IEC/EN61800-5
RoHS, ISO 9001
UL Listed
RCM
CSA Class No.: 3211-06
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL File No.: E134360
UL report applies to both US and Canada
CSA-C22.2 No. 14
CE marking
UL 508C
DNV
IEC/EN 61800-2
IEC/EN 61800-3
Certified by UL for use in Canada
CUL
UL
CE
IEC/EN 61800-5-1
RoHS, ISO 9001
UL Listed
RCM
CSA Class No.: 3211-06
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL File No.: E134360
UL report applies to both US and Canada
CSA-C22.2 No. 14
CE marking
UL 508C
DNV
IEC/EN 61800-2
IEC/EN 61800-3
Certified by UL for use in Canada
CUL
UL
CE
IEC/EN 61800-5-1
Model Code
SVX005A1-5A4B2
Informazioni generali
Communication interface
BACnet MS/TP, optional
LonWorks, optional
Modbus-TCP, optional
CANopen®, optional
PROFIBUS-DP
DeviceNet, optional
Ethernet IP, optional
Modbus-RTU, optional
EtherCAT, optional
PROFINET, optional
LonWorks, optional
Modbus-TCP, optional
CANopen®, optional
PROFIBUS-DP
DeviceNet, optional
Ethernet IP, optional
Modbus-RTU, optional
EtherCAT, optional
PROFINET, optional
Connection to SmartWire-DT
No
Degree of protection
IP21
NEMA Other
NEMA Other
Electromagnetic compatibility
1st and 2nd environments (according to EN 61800-3)
Environmental class
3C2, 3S2 (Air quality)
Fitted with:
OLED display
Internal DC link
IGBT inverter
Additional PCB protection
Brake chopper
Radio interference suppression filter
Internal DC link
IGBT inverter
Additional PCB protection
Brake chopper
Radio interference suppression filter
Frame size
FR6
Mounting position
Vertical
Product Category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Radio interference class
C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.
Suitable for
Branch circuits, (UL/CSA)
Condizioni ambientali e climatiche
Altitude
Max. 1000 m
Above 1000 m with 1 % performance reduction per 100 m
Max. 3000 m
Above 1000 m with 1 % performance reduction per 100 m
Max. 3000 m
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
< 95 % relative humidity, no condensation, no corrosion, no dripping water
Circuito principale
Mains voltage - min
525 V
Mains voltage - max
690 V
Operating mode
Sensorless vector control (SLV)
U/f control
U/f control
Output frequency - min
0 Hz
Output frequency - max
320 Hz
Output voltage (U2)
600 V AC, 3-phase
690 V AC, 3-phase
690 V AC, 3-phase
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Rated frequency - min
45 Hz
Rated frequency - max
66 Hz
Rated operational current (Ie) at 110% overload
10 A
Rated operational current (Ie) at 150% overload
7.5 A
Rated operational power at 690 V, 50 Hz
5.5 kW
Rated operational power at 690 V, 50 Hz, 110% overload
7.5 kW
Rated operational voltage
690 V AC, 3-phase
600 V AC, 3-phase
600 V AC, 3-phase
Resolution
0.01 Hz (Frequency resolution, setpoint value)
Supply frequency
50/60 Hz
Switching frequency
1.5 kHz, 1 - 6 kHz adjustable, fPWM, Power section, Main circuit
System configuration type
AC supply systems with earthed center point
Voltage rating - max
690 V
Potenza nominale d'impiego (Motore)
Assigned motor current IM at 690 V, 50 Hz, 110% overload
8.8 A
Assigned motor current IM at 690 V, 60 Hz, 110% overload
8 A
Assigned motor current IM at 690 V, 60 Hz, 150% overload
5.3 A
Assigned motor power at 690 V, 60 Hz
5 HP
Assigned motor power at 690 V, 60 Hz, 110% overload
7.5 HP
Circuito di controllo
Number of inputs (analog)
2 (parameterizable, 0 - 10 V DC, 0/4 - 20 mA)
Number of inputs (digital)
6 (parameterizable, max. 30 V DC)
Number of outputs (analog)
1
Number of outputs (digital)
1 (parameterizable, 48 V DC/50 mA)
Number of relay outputs
2 (parameterizable, N/O, 8 A (24 V DC) / 8 A (250 V AC) / 0,4 A (125 V DC))
Rated control voltage (Uc)
24 V DC (external, max. 250 mA)
Verifica di progetto
Equipment heat dissipation, current-dependent Pvid
138 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
7.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| tensione di rete (EF006780) | 525 V |
| frequenza di rete (EF006783) | 50/60 Hz |
| max. frequenza d'uscita (EF007350) | 320 Hz |
| numero di uscite analogiche (EF001995) | 1 |
| con elemento di comando (EF001538) | No |
| impiego ammesso in ambito industriale (EF007294) | No |
| impiego ammesso in ambito residenziale e commerciale (EF007295) | No |
| supporta il protocollo per TCP/IP (EF003050) | No |
| supporta il protocollo per PROFIBUS (EF003052) | No |
| supporta il protocollo per CAN (EF003053) | No |
| supporta il protocollo per INTERBUS (EF003054) | No |
| supporta il protocollo per ASI (EF003051) | No |
| supporta il protocollo per EIB (EF003055) | No |
| supporta il protocollo pour Modbus (EF003057) | No |
| supporta il protocollo per Data-Highway (EF003058) | No |
| supporta il protocollo per DeviceNet (EF003059) | No |
| supporta il protocollo per SUCONET (EF003060) | No |
| supporta il protocollo per LON (EF003017) | No |
| supporta il protocollo per PROFINET IO (EF007525) | No |
| supporta il protocollo per PROFINET CBA (EF007524) | No |
| supporta il protocollo per SERCOS (EF006657) | No |
| supporta il protocollo per Foundation Fieldbus (EF007522) | No |
| supporta il protocollo per EtherNet/IP (EF007521) | No |
| supporta il protocollo per AS-Interface Safety at Work (EF007519) | No |
| supporta il protocollo per DeviceNet Safety (EF007520) | No |
| supporta il protocollo per INTERBUS-Safety (EF006662) | No |
| supporta il protocollo per PROFIsafe (EF007526) | No |
| supporta il protocollo per SafetyBUS p (EF007527) | No |
| supporta il protocollo per BACnet (EF011944) | No |
| supporta il protocollo per altri sistemi bus (EF003062) | No |
| con interfaccia ottica (EF003028) | No |
| con collegamento PC (EF006107) | No |
| chopper di frenatura integrato (EF007293) | No |
| funzionamento a 4 quadranti possibile (EF006803) | No |
| tipo di convertitore (EF006978) | altro |
| grado di protezione (IP) (EF005474) | IP21 |
| indice di protezione (NEMA) (EF011959) | altro |
| altezza (EF000040) | 237 mm |
| larghezza (EF000008) | 195 mm |
| profondità (EF000049) | 558 mm |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| SVX005A1-5A4B2 180538 ES_125486.pdf | 5 Mbytes |
|
