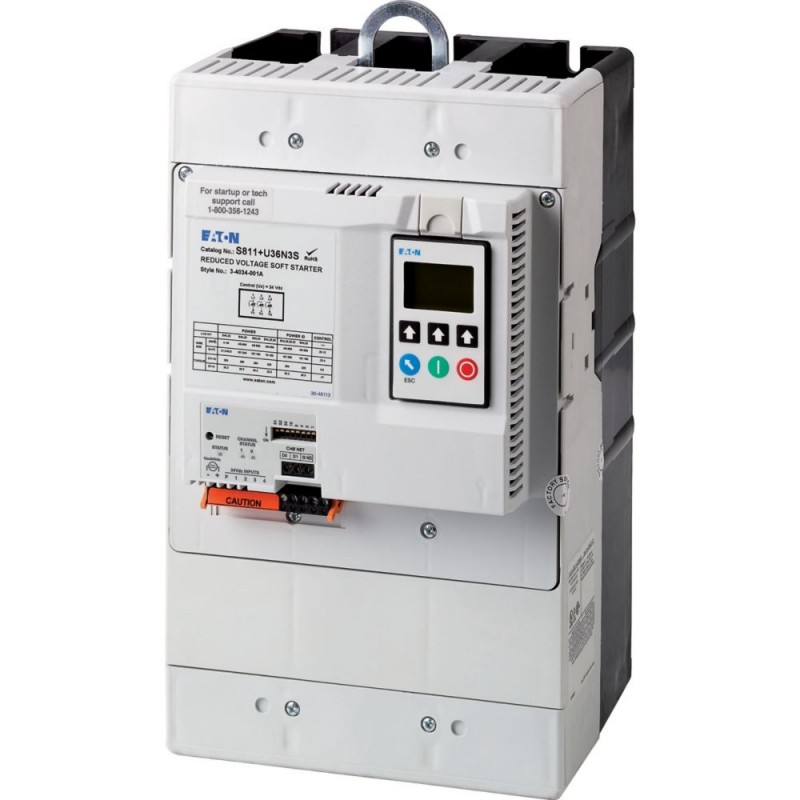

S811+U36P3S 169872 Y7-169872 EATON ELECTRIC Softstarter, 361 A, 200 600 V AC, Us 24 V DC con organo di coman.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

S811+U36P3S 169872 Y7-169872 EATON ELECTRIC Softstarter, 361 A, 200 600 V AC, Us 24 V DC con organo di coman..

S811+U36P3S

169872

Y7-169872

EATON-MOELLER

Softstarter, 361 A, 200 - 600 V AC, Us= 24 V DC con organo di comando e algoritmo pompa, Grandezza U

S811+ Avviatore progressivo ad alte prestazioni a 3 poli 360 A 200-600 V CA

Eaton S811 Soft starter, 361 A, 200 - 600 V AC, Us= 24 V DC, with control unit and pump algorithm, Frame size U

Soft starter, Descrizione: Con contatti di bypass interni, Funzione: Soft starter per carichi trifase, con centralina e algoritmo della pompa, Tensione di alimentazione (50/60 Hz): ULN= 200 - 600 V AC, Tensione di alimentazione: Us= 24 V DC, Tensione di controllo: UC= 24 V DC, Potenza nominale del motore assegnata (standard, collegamento in linea) a 400 V, 50 Hz: P= 200 kW, a 460 V, 60 Hz: P= 300 CV, AC-53 Corrente nominale di impiego: Ie= 361 A, AC-53 Corrente nominale di impiego, In-Delta: Ie= 623 A, Classe di avviamento: CLASS 10 (sostituzione stella-triangolo), CLASS 20 (servizio di avviamento pesante 3 x Ie per 45 s), CLASS 30 (6 x Ie per 30 s), Tensione nominale di esercizio: Ue= 200 V, 230 V, 400 V, 480 V, 600 V, Collegamento SmartWire-DT: no, Dimensioni del telaio: U, Informazioni per l'ordine: I morsetti componibili sono necessari per i terminali per le dimensioni del telaio T, U e V -> Accessori, Norme: IEC/EN 60947-4-2, UL 508, CSA22.2-14-1995, GB14048

Maggiori dettagli


Apparecchi elettrici a bassa tensione > starter progressivo

Softstarter ad alte prestazioni

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $5,181.68
Prezzo unitario: $5,181.68
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton S811 Soft starter
Catalog Number
169872
EAN
4015081663699
Product Length/Depth
182 mm
Product Height
323.1 mm
Product Width
194.4 mm
Product Weight
18.6 kg
Certifications
CSA22.2-14-1995
CSA File No.: LR 353
UL 508
CCC
UL
UL File No.: E202571
CSA-C22.2 No. 14
IEC/EN 60947-4-2
C-Tick
CSA
CSA Class No.: 3211-06
CE
GB14048
UL Category Control No.: NMFT
Model Code
S811+U36P3S

Modelli & Funzioni

Fault memory
10 Faults
Fitted with:
Internal bypass
Display
Internal bypass contacts
Motor overload protection
Functions
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of closing transients
Underload monitoring
Single direction
Potential isolation between power and control sections
Soft start function
Overload monitoring
Suppression of DC components for motors
Current limitation
Interfaces
Modbus RTU (built-in)

Informazioni generali

Class
Adjustable
Connection to SmartWire-DT
No
Degree of protection
IP00
NEMA Other
Frame size
U
Mains voltage - min
200 V
Mains voltage - max
600 V
Mounting position
As required
Overvoltage category
II
Pollution degree
3
Radio interference class
Class A (EN 55011)
Rated impulse withstand voltage (Uimp)
4000 V
Rated insulation voltage (Ui)
660 V
Shock resistance
15 g, Mechanical
Startup class
CLASS 10 (star-delta replacement)
CLASS 30 (6 x Iₑ for 30 s)
CLASS 20 (heavy starting duty 3 x Iₑ for 45 s)
Suitable for
Branch circuits, not as BCPD, (UL/CSA)
Type
Soft starter for three-phase loads, with control unit and pump algorithm
Voltage type
DC

Condizioni ambientali e climatiche

Altitude
Max. 2000 m
Above 2000 m with 0.5 % derating per 100 m
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - max
70 °C
Ambient storage temperature - min
-50 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Damp heat, cyclic, to IEC 60068-2-30

Parti conduttive principali

Overload cycle
AC-53a: 4.0 - 32: 99 - 3
Rated operational current (Ie) at AC-53
360 A
Rated operational current (Ie) at AC-53, in-delta
623 A
Rated operational voltage (Ue) - min
200 V
Rated operational voltage (Ue) - max
600 V
Short-circuit protection rating
NZMN3-S400, Type “1” coordination, Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
600 V

Potenza nominale d'impiego (Motore)

Assigned motor power at 200/208 V, 60 Hz, 3-phase
125 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
125 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
300 HP
Assigned motor power at 600 V, 60 Hz, 3-phase
350 HP
Assigned motor power in-delta at 220/230 V, 60 Hz
250 HP
Assigned motor power in-delta at 460/480 V, 60 Hz
500 HP
Assigned motor power in-delta at 575/600 V, 60 Hz
600 HP
Rated operational power at 220/230 V, 50 Hz
110 kW
Rated operational power at 400 V, 50 Hz
200 kW
Rated operational power at 500 V, 50 Hz
250 kW
Rated operational power in-delta at 220/230 V, 50 Hz
200 kW
Rated operational power in-delta at 400 V, 50 Hz
315 kW
Rated operational power in-delta at 500 V, 50 Hz
450 kW

Sezioni di collegamento

Terminal capacity (flexible with ferrule)
2 x (1 - 2.5) mm², Control circuit cables
2 x (25 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
1 x (70 - 240) mm², Main cables
Terminal capacity (solid)
1 x (2.5 - 4) mm², Control circuit cables
2 x (1 - 2.5) mm², Control circuit cables
1 x (70 - 240) mm², Main cables
2 x (25 - 240) mm², Main cables
Terminal capacity (solid/stranded AWG)
1 x (4 - 500 kcmil), Main cables
1 x (14 - 12), Control circuit cables
2 x (4 - 500 kcmil), Main cables
2 x (14 - 12), Control circuit cables
Terminal capacity (stranded)
2 x (1 - 2.5) mm², Control circuit cables
2 x (25 - 240) mm², Main cables
1 x (2.5 - 4) mm², Control circuit cables
1 x (70 - 150) mm², Main cables
Screwdriver size
0.6 x 3.5 mm, Terminal screws, Control circuit cables
Tightening torque
0.4 Nm, Screw terminals, Control circuit cables

Circuito di comando

Current consumption
100 mA, Control circuit, Digital inputs, External 24 V (no-load)
150 mA, Control circuit, Digital inputs, External 24 V
10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC
1000 mA, Control circuit, Regulator supply
Drop-out time
100 ms, DC operated
Drop-out voltage
0 - 3 V, DC operated
Pick-up time
100 ms at DC
Pick-up voltage
21.6 - 26.4 V DC
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
24 V

Ingresso / uscita

Input current
4 - 20 mA (Analog inputs)
Number of inputs
1 (current input)
Number of outputs
2 Relay Outputs (programmable)
Output voltage
120 V AC/DC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V DC
24 V DC (-10 %/+10 %)
Rated operational current (Ie) at AC-11
3 A

Funzione soft start

Application
Delay time
0 - 120 s, Soft start function, Ramp times
Kickstart
100% (Kickstart voltage)
Max. 2000 ms (Kickstart Duration)
Ramp/run-up time
360 s
Start voltage
Max. 85 %, Soft start function, Start voltage = turn-off voltage

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
25 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
361 A
Static heat dissipation, non-current-dependent Pvs
25 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 169872 Apparecchi elettrici a bassa tensione (EC000640)
Caratteristica Valore
corrente d'esercizio nominale Ie a 40°C Tu (EF007039) 360 A
tensione d'esercizio nominale Ue (EF002418) 200 V
potenza nominale motore trifase, circuito standard, a 230 V (EF007053) 110 kW
potenza nominale motore trifase, circuito standard, a 400 V (EF007054) 200 kW
potenza nominale motore trifase, circuito a radice di 3, a 230 V (EF007055) 200 kW
potenza nominale motore trifase, circuito a radice di 3, a 400 V (EF007056) 315 kW
funzione (EF000030) senso di rotazione unico
cavallottamento interno (EF009214) Sì
con display (EF000458) Sì
controllo della coppia (EF009215) No
temperatura ambiente nominale senza derating (EF007074) 50 °C
tensione di alimentazione pilota nominale AC 50 Hz (EF003978) 0 V
tensione di alimentazione pilota nominale AC 60 Hz (EF003979) 0 V
tensione di alimentazione pilota nominale DC (EF003980) 24 V
tipo di tensione per l'azionamento (EF008242) DC
protezione integrata contro il sovraccarico del motore (EF007297) Sì
classe di intervento (EF006668) regolabile
grado di protezione (IP) (EF005474) IP00
indice di protezione (NEMA) (EF011959) altro
