> EATON - MOELLER>Motor Protective Switches>PKZM0-XDM32-PI 199465 Y7-199465 ELECTRIC PKZM0-XDM32-PI
ANUNCIAR
Prodotto precedente Prodotto successivo

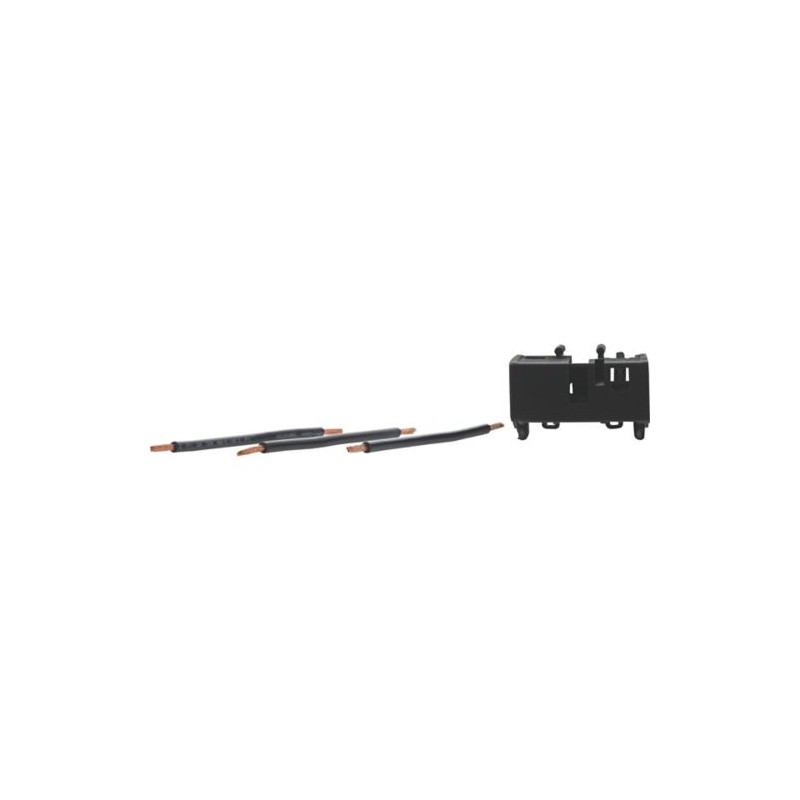

PKZM0-XDM32-PI 199465 Y7-199465 EATON ELECTRIC PKZM0-XDM32-PI Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

PKZM0-XDM32-PI 199465 Y7-199465 EATON ELECTRIC PKZM0-XDM32-PI

PKZM0-XDM32-PI

199465

Y7-199465

EATON-MOELLER

PKZM0-XDM32-PI

Eaton Moeller® series PKZM0 Wiring set, For DOL Starter, Push in terminals PKZM0-XDM32-PI

Il set di cavi può essere utilizzato per l'avviatore di emergenza DOL per PKZM0 + DILM17, PKZM0 + DILM25, PKZM0 + DILM32

Maggiori dettagli


Apparecchi elettrici a bassa tensione > set di cablaggio per breaker

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $7.94
Prezzo unitario: $7.94
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series PKZM0 Accessory Wiring module
Catalog Number
199465
EAN
4015081978717
Product Length/Depth
42 mm
Product Height
63.7 mm
Product Width
45 mm
Product Weight
0.058 kg
Compliances
CE Marked
RoHS conform
Certifications
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA File No.: 165628
UL 508
CSA-C22.2 No. 14
IEC/EN 60947-4-1
CE
CSA
UL
UL File No.: E36332
Catalog Notes
Suitable for PKZM0…-PI / SPI32 and contactor DILM8-11…38-11-PI
Model Code
PKZM0-XDM32-PI

General

Connection
Push in terminals
Model
Direct circuit
Product category
Accessories
Type
Wiring set

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Electrical rating

Rated operational voltage (Ue) - max
690 VAC

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 199465 Apparecchi elettrici a bassa tensione (EC002050)
Caratteristica Valore
adatto per numero di poli (EF001589) 3
versione (EF000010) circuito diretto

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKZM0-XDM32-PI Y7-199465 199465 EN_199465.pdf 2 Mbytes PKZM0-XDM32-PI Y7-199465 199465 EN_199465.pdf
