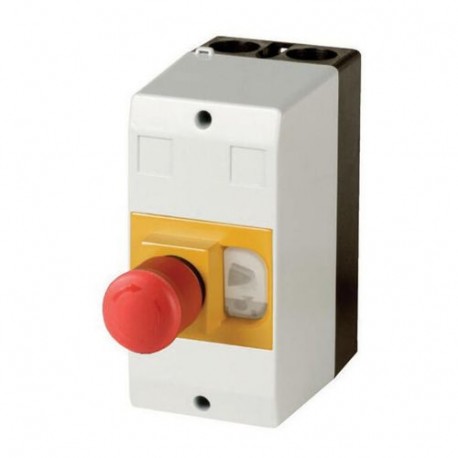

CI-PKZ01-PVT 281406 Y7-281406 EATON ELECTRIC Custodia in materiale isolante, IP65, +pulsante d'emergenza, pe.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

CI-PKZ01-PVT 281406 Y7-281406 EATON ELECTRIC Custodia in materiale isolante, IP65, +pulsante d'emergenza, pe..

CI-PKZ01-PVT

281406

Y7-281406

EATON-MOELLER

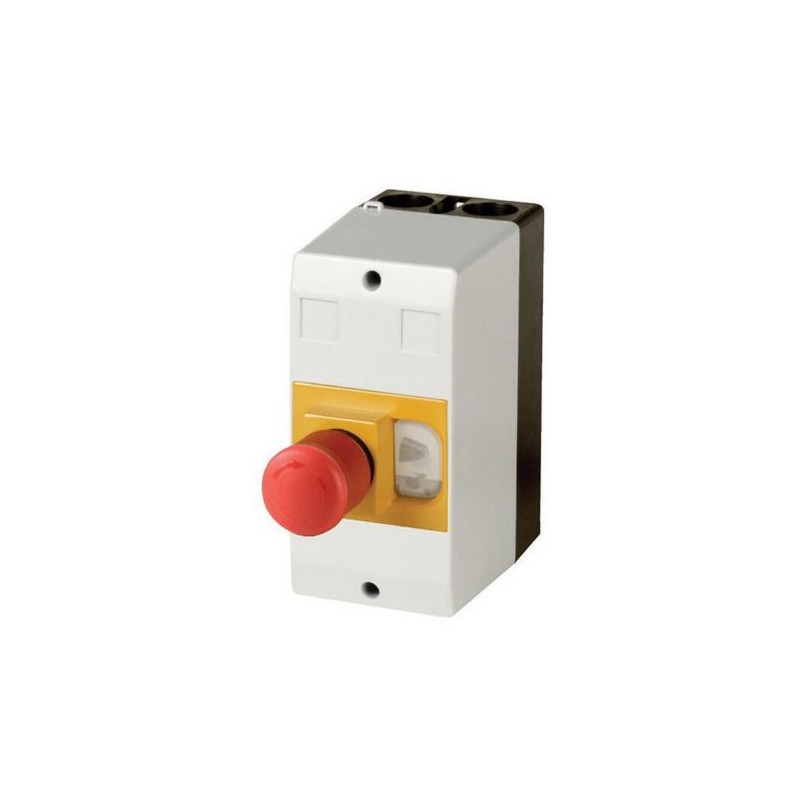

Custodia in materiale isolante, IP65, +pulsante d'emergenza, per PKZ01

Scatola isolante superficiale; AxLxP=160x97x80 mm; IP65; per PKZ01; Con pulsante di arresto di emergenza

Eaton Moeller® series CI Insulated enclosure, IP65_x, +emergency switching off mushroom push-button, for PKZ01

Scatola isolata per PKZM01, grado di protezione IP65 morsetto integrato per collegamento PE(N)., Con pulsante a fungo di disconnessione di emergenza, manutenzione, 2 ingressi cavo cieco superiore e inferiore M25 ciascuno

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Scatola per stazione di comando a sospensione

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $40.16
Prezzo unitario: $40.16
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

Comprati di solito insieme

Più venduti

Dettagli



General specifications

Product Name
Eaton Moeller® series CI Insulated enclosure
Catalog Number
281406
EAN
4015082814069
Product Length/Depth
177 mm
Product Height
158 mm
Product Width
80 mm
Product Weight
0.3 kg
Compliances
CE
Model Code
CI-PKZ01-PVT

Specifiche del prodotto

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
PE(N) terminal
Emergency switching off mushroom push-button
Enclosure material
Plastic
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
10 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Accessories
Degree of protection
IP65
NEMA Other
Model
Surface mounting
Suitable for
Emergency stop
Functions
Maintained
Knockouts
2 x M25 (cable entry knockout with thread at the bottom)
2 x M25 (cable entry knockout with thread at the top)
2 x M20 (cable entry knockouts at the rear)
Hard mirror with cable entry knockouts (can be cut out)

ETIM for 281406 Apparecchi elettrici a bassa tensione (EC000712)
Caratteristica Valore
materiale della scatola (EF001596) materiale sintetico
larghezza (EF000008) 80 mm
altezza (EF000040) 158 mm
profondità (EF000049) 177 mm
con coperchio trasparente (EF001094) No
adatto per arresto d'emergenza (EF001433)
versione (EF000010) sporgente
grado di protezione (IP) (EF005474) IP65
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF
