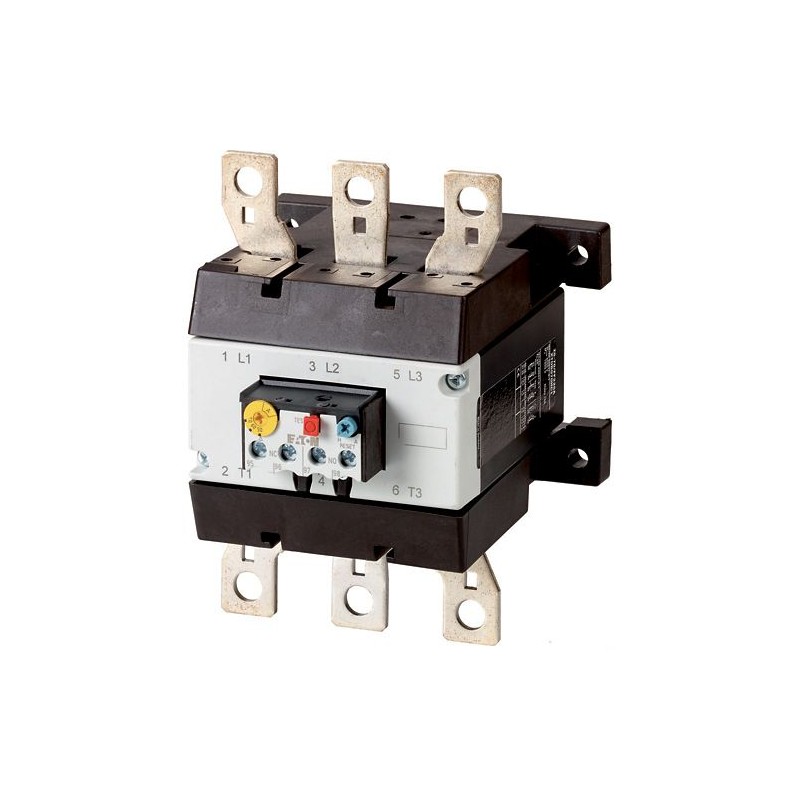

Z5-100/FF225A 139573 Y7-139573 EATON ELECTRIC Relè termico, 70-100A, 1NA+1NC
Z5-100/FF225A
139573
Y7-139573
EATON-MOELLER
Relè termico, 70-100A, 1NA+1NC
Relè di sovraccarico 70-100 A 1 NO + 1 NC Montaggio indipendente
Eaton Moeller® series Z5 Overload relay, Ir= 70 - 100 A, 1 N/O, 1 N/C, For use with: DILM185A, DILM225A
Relè di sovraccarico, Gamma prodotti: Relè di sovraccarico Z5, Sensibilità ai guasti di fase: IEC/EN 60947, VDE 0660 Part 102, Descrizione: Pulsante di prova/spegnimento, Pulsante di reset manuale/automatico, Sblocco non a scatto, Tipo di montaggio: Montaggio diretto, Montaggio separato, Contatti ausiliari NA = Normalmente aperto: 1 NA, Contatti ausiliari NA = Normalmente chiuso: 1 N/C, Compatibile con: DILM185A, DILM225A, Norme: IEC/EN 60947, VDE 0660, UL, CSA, Grado di protezione: IP00
Apparecchi elettrici a bassa tensione > relè di sovraccarico termico
Relè termici
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series Z5 Thermal overload relay
Catalog Number
139573
EAN
4015081363513
Product Length/Depth
146 mm
Product Height
164 mm
Product Width
128 mm
Product Weight
1.47 kg
Certifications
CSA Class No.: 3211-03
IEC/EN 60947
UL Category Control No.: NKCR
UL File No.: E29184
IEC/EN 60947-4-1
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CE
CSA
UL
CSA File No.: 012528
UL 60947-4-1
IEC/EN 60947
UL Category Control No.: NKCR
UL File No.: E29184
IEC/EN 60947-4-1
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CE
CSA
UL
CSA File No.: 012528
UL 60947-4-1
Model Code
Z5-100/FF225A
Specifiche del prodotto
Features
Trip-free release
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Test/off button
Reset pushbutton manual/auto
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Test/off button
Reset pushbutton manual/auto
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
3
Class
CLASS 10 A
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Rated impulse withstand voltage (Uimp)
8000 V AC
4000 V (auxiliary and control circuits)
4000 V (auxiliary and control circuits)
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
0.9 A
Rated operational current (Ie) at DC-13, 110 V
0.4 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational current (Ie) at DC-13, 24 V
0.9 A
Rated operational current (Ie) at DC-13, 60 V
0.75 A
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (control circuit cable)
8 mm
Voltage rating - max
600 VAC
Product category
Overload relay Z5
Protection
With terminal cover, Protection against direct contact when actuated from front (EN 50274)
Adjustable current range - max
100 A
Adjustable current range - min
70 A
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient operating temperature (enclosed) - min
25 °C
Conventional thermal current ith of auxiliary contacts (1-pole, open)
6 A
Equipment heat dissipation, current-dependent Pvid
23.7 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
7.9 W
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Overload release current setting - max
100 A
Overload release current setting - min
70 A
Rated operational voltage (Ue) - max
1000 V
Rated operational current (Ie) at AC-15, 120 V
1.5 A
Electrical connection type of main circuit
Screw connection
Reset function
Automatic
Push-button
Push-button
Screwdriver size
2, Terminal screw, Control circuit cables, Pozidriv screwdriver
1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver
1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver
Mounting method
Direct mounting
Direct attachment
Separate mounting
Direct attachment
Separate mounting
Degree of protection
IP00
Overvoltage category
III
Safe isolation
500 V AC, Between main circuits, According to EN 61140
240 V AC, Between auxiliary contacts, According to EN 61140
440 V, Between auxiliary contacts and main contacts, According to EN 61140
240 V AC, Between auxiliary contacts, According to EN 61140
440 V, Between auxiliary contacts and main contacts, According to EN 61140
Screw size
M10 x 35, Terminal screw, Main connections
M3.5, Terminal screw, Control circuit cables
M3.5, Terminal screw, Control circuit cables
Shock resistance
10 g, Mechanical, Sinusoidal, Shock duration 10 ms
Short-circuit current rating (basic rating)
10 kA, SCCR (UL/CSA)
400 A Class J, max. Fuse, SCCR (UL/CSA)
400 A, max. CB, SCCR (UL/CSA)
400 A Class J, max. Fuse, SCCR (UL/CSA)
400 A, max. CB, SCCR (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
B600 at opposite polarity, AC operated (UL/CSA)
R300, DC operated (UL/CSA)
B300 at opposite polarity, AC operated (UL/CSA)
R300, DC operated (UL/CSA)
B300 at opposite polarity, AC operated (UL/CSA)
Short-circuit protection rating
Max. 6 A gG/gL, fuse, Without welding, Auxiliary and control circuits
315 A gG/gL, Fuse, Type “1” coordination
200 A gG/gL, Fuse, Type “2” coordination
315 A gG/gL, Fuse, Type “1” coordination
200 A gG/gL, Fuse, Type “2” coordination
Suitable for
Branch circuits, (UL/CSA)
Temperature compensation
Continuous
≤ 0.25 %/K, residual error for T > 40°
≤ 0.25 %/K, residual error for T > 40°
Terminal capacity (busbar)
25 mm width, Main connection
Terminal capacity (flexible with cable lug)
185 mm²
Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm², Control circuit cables
1 x (0.75 - 2.5) mm², Control circuit cables
1 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid)
2 x (0.75 - 4) mm², Control circuit cables
1 x (0.75 - 4) mm², Control circuit cables
1 x (0.75 - 4) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
2/0 - 500 MCM, Main cables
2 x (18 - 14), Control circuit cables
2 x (18 - 14), Control circuit cables
Terminal capacity (stranded with cable lug)
185 mm²
Tightening torque
1.2 Nm, Screw terminals, Control circuit cables
18 Nm, Main cable connection screw/bolt
18 Nm, Main cable connection screw/bolt
Width across flats
16 mm (Hexagon head spanner SW)
| Caratteristica | Valore |
|---|---|
| intervallo di corrente regolabile (EF008211) | 70 A |
| max. tensione d'esercizio nominale Ue (EF007357) | 1000 V |
| modo di montaggio (EF000003) | applicazione diretta |
| tipo di collegamento circuito elettrico principale (EF006819) | raccordo a vite |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 1 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 1 |
| numero di contatti ausiliari, invertitori (EF003531) | 0 |
| classe di intervento (EF006668) | classe 10 A |
| ingresso a funzione reset (EF011940) | No |
| funzione reset automatica (EF011941) | Sì |
| tasto di funzione reset (EF011942) | Sì |
