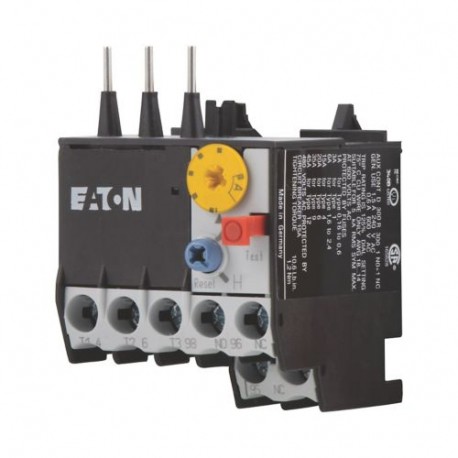

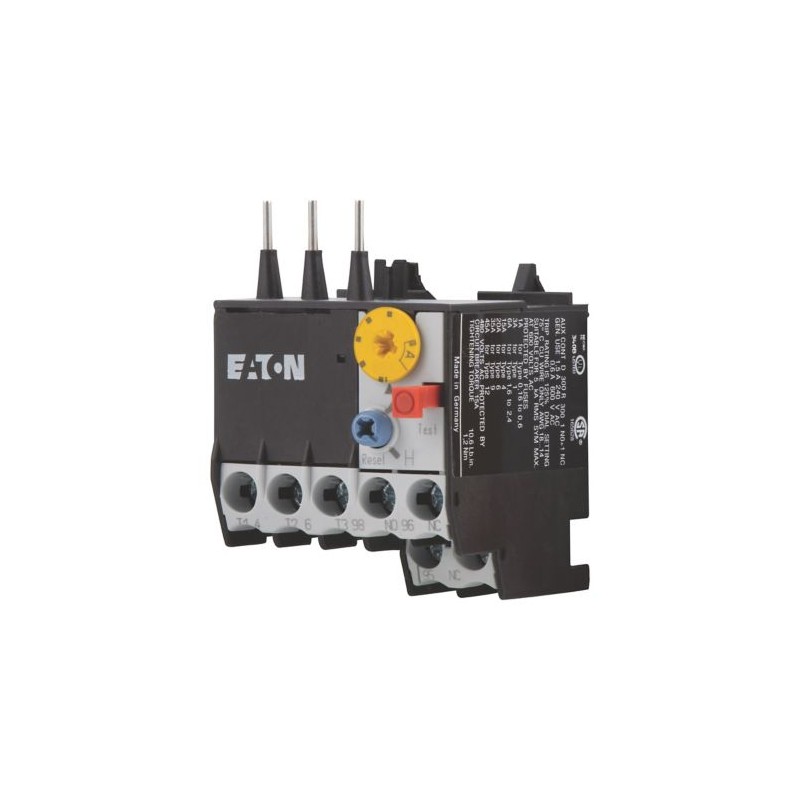

ZE-0,4 014300 Y7-14300 EATON ELECTRIC Relè termico, 0.24-0.4A, 1NA+1NC
ZE-0,4
014300
Y7-14300
EATON-MOELLER
Relè termico, 0.24-0.4A, 1NA+1NC
Relè di sovraccarico; 0,24-0,4 A; 1 NO + 1 NC; Assemblaggio diretto in DILE.. M
Eaton Moeller® series ZE Overload relay, Ir= 0.24 - 0.4 A, 1 N/O, 1 N/C, Direct mounting
Relè di sovraccarico, Gamma prodotti: Relè di sovraccarico ZE per relè mini-contattori, Sensibilità ai guasti di fase: IEC/EN 60947, VDE 0660 Part 102, Descrizione: Pulsante di prova/spegnimento, Pulsante di reset manuale/automatico, Sblocco non a scatto, Tipo di montaggio: Montaggio diretto, Contatti ausiliari NA = Normalmente aperto: 1 NA, Contatti ausiliari NA = Normalmente chiuso: 1 N/C, Utilizzabile con: DILEM, DIULEM/21/MV, Norme: IEC/EN 60947, VDE 0660, UL, CSA, Grado di protezione: IP20
Apparecchi elettrici a bassa tensione > relè di sovraccarico termico
Relè termici
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series ZE Thermal overload relay
Catalog Number
014300
EAN
4015080143000
Product Length/Depth
52 mm
Product Height
65 mm
Product Width
45 mm
Product Weight
0.075 kg
Certifications
IEC/EN 60947
CSA-C22.2 No. 14
UL
UL 508
CSA
CSA Class No.: 3211-03
UL Category Control No.: NKCR
IEC/EN 60947-4-1
VDE 0660
CE
IEC/EN 60947-5-1
CSA File No.: 012528
UL File No.: E29184
CSA-C22.2 No. 14
UL
UL 508
CSA
CSA Class No.: 3211-03
UL Category Control No.: NKCR
IEC/EN 60947-4-1
VDE 0660
CE
IEC/EN 60947-5-1
CSA File No.: 012528
UL File No.: E29184
Model Code
ZE-0,4
Specifiche del prodotto
Features
Trip-free release
Test/off button
Reset pushbutton manual/auto
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
Test/off button
Reset pushbutton manual/auto
Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
3
Class
CLASS 10 A
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Rated impulse withstand voltage (Uimp)
4000 V (auxiliary and control circuits)
6000 V AC
6000 V AC
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
0.7 A
Rated operational current (Ie) at AC-15, 500 V
0.5 A
Rated operational current (Ie) at DC-13, 110 V
0.4 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.2 A
Rated operational current (Ie) at DC-13, 24 V
0.9 A
Rated operational current (Ie) at DC-13, 60 V
0.75 A
Rated operational current for specified heat dissipation (In)
0.4 A
Static heat dissipation, non-current-dependent Pvs
0 W
Stripping length (control circuit cable)
8 mm
Stripping length (main cable)
8 mm
Voltage rating - max
600 VAC
Product category
ZE overload relays for mini contactor relays
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Adjustable current range - max
0.4 A
Adjustable current range - min
0.24 A
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient operating temperature (enclosed) - min
25 °C
Conventional thermal current ith of auxiliary contacts (1-pole, open)
6 A
Equipment heat dissipation, current-dependent Pvid
5.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.8 W
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Overload release current setting - max
0.4 A
Overload release current setting - min
0.24 A
Rated operational voltage (Ue) - max
690 V
Rated operational current (Ie) at AC-15, 120 V
1.5 A
Electrical connection type of main circuit
Screw connection
Reset function
Automatic
Push-button
Push-button
Screwdriver size
0.8 x 5.5 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
2, Terminal screw, Pozidriv screwdriver
Mounting method
Direct attachment
Direct mounting
Direct mounting
Degree of protection
IP20
Overvoltage category
III
Safe isolation
250 V AC, Between auxiliary contacts, According to EN 61140
300 V AC, Between main circuits, According to EN 61140
300 V AC, Between auxiliary contacts and main contacts, According to EN 61140
300 V AC, Between main circuits, According to EN 61140
300 V AC, Between auxiliary contacts and main contacts, According to EN 61140
Screw size
M3.5, Terminal screw
Shock resistance
10 g, Mechanical, Sinusoidal, Shock duration 10 ms
Short-circuit current rating (basic rating)
15 A, max. CB, CB for max. 480 V, SCCR (UL/CSA)
1 A, max. Fuse, SCCR (UL/CSA)
5 kA, SCCR (UL/CSA)
1 A, max. Fuse, SCCR (UL/CSA)
5 kA, SCCR (UL/CSA)
Switching capacity (auxiliary contacts, general use)
0.6 A, 600V AC, (UL/CSA)
1.5 A, 240V AC, (UL/CSA)
1.5 A, 240V AC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
R300, DC operated (UL/CSA)
D300, AC operated (UL/CSA)
D300, AC operated (UL/CSA)
Short-circuit protection rating
Max. 4 A gG/gL, Fuse, Auxiliary contacts
20 A gG/gL, Fuse, Type “1” coordination
2 A gG/gL, Fuse, Type “2” coordination
20 A gG/gL, Fuse, Type “1” coordination
2 A gG/gL, Fuse, Type “2” coordination
Suitable for
Branch circuits, (UL/CSA)
Temperature compensation
≤ 0.25 %/K, residual error for T > 40°
Continuous
Continuous
Terminal capacity (flexible with ferrule)
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (0.5 - 1.5) mm², Main cables
2 x (0.5 - 1.5) mm², Main cables
1 x (0.5 - 1.5) mm², Main cables
2 x (0.5 - 1.5) mm², Main cables
Terminal capacity (solid)
1 x (0.75 - 2.5) mm², Main cables
2 x (0.75 - 2.5) mm², Control circuit cables
1 x (0.75 - 2.5) mm², Control circuit cables
2 x (0.75 - 2.5) mm², Control circuit cables
1 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
18 - 14, Main cables
2 x (18 - 12), Control circuit cables
2 x (18 - 12), Control circuit cables
Tightening torque
1.2 Nm, Screw terminals
| Caratteristica | Valore |
|---|---|
| intervallo di corrente regolabile (EF008211) | 0.24 A |
| max. tensione d'esercizio nominale Ue (EF007357) | 690 V |
| modo di montaggio (EF000003) | applicazione diretta |
| tipo di collegamento circuito elettrico principale (EF006819) | raccordo a vite |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 1 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 1 |
| numero di contatti ausiliari, invertitori (EF003531) | 0 |
| classe di intervento (EF006668) | classe 10 A |
| ingresso a funzione reset (EF011940) | No |
| funzione reset automatica (EF011941) | Sì |
| tasto di funzione reset (EF011942) | Sì |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ZE-0,4 Y7-14300 014300 IT_014432.pdf | 981 Kbytes |
|
