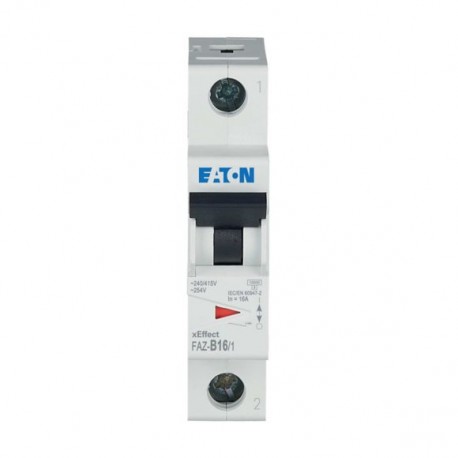

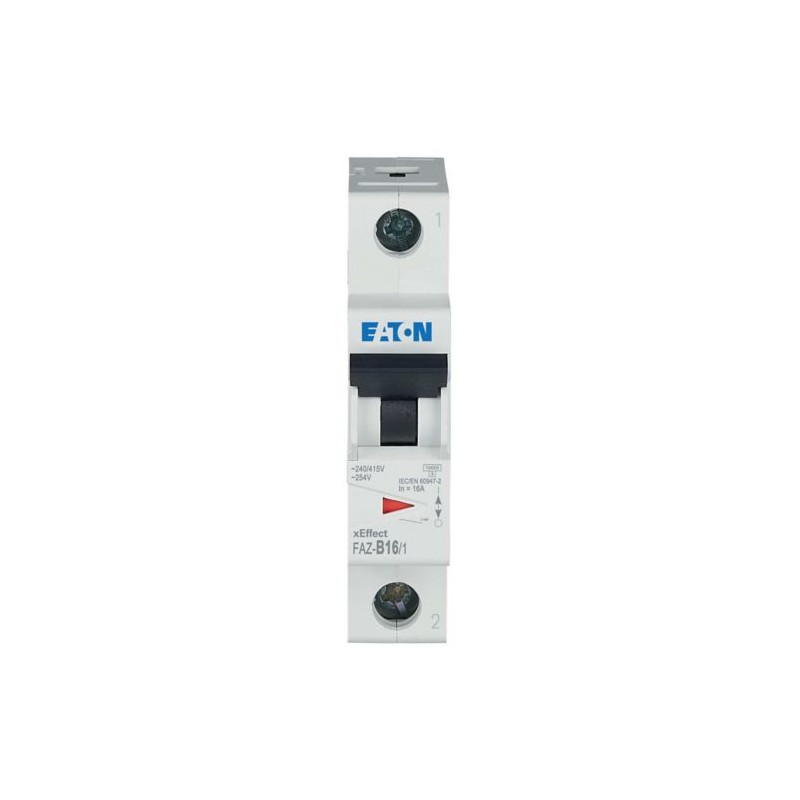

FAZ-B16/1 278535 Y7-278535 EATON ELECTRIC Interruttore LS, 16A, 1p, curva caratteristica B, AC
FAZ-B16/1
278535
Y7-278535
EATON-MOELLER
Interruttore LS, 16A, 1p, curva caratteristica B, AC
Interruttore automatico FAZ, 16A, 1P, curva B
Eaton Moeller series xEffect - FAZ MCB. FAZ, 1-pole, tripping characteristic: B, rated current In: 16 A
Interruttore magnetotermico, FAZ, 1 polo, caratteristica di sgancio: B, corrente nominale a: 16 A, quadro elettrico per applicazioni industriali e commerciali avanzate
disgiuntori, fusibili, apparecchi per l’installazione in serie/su parete > Interruttore magnetotermico
Quadri modulari - industriali
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series xEffect - FAZ MCB
Catalog Number
278535
EAN
4015082785352
Product Length/Depth
80 mm
Product Height
75.5 mm
Product Width
17.7 mm
Product Weight
0.11 kg
Compliances
UL CSA09 (with supplementary protector only)
RoHS conform
RoHS conform
Certifications
CSA (Class No. 3215-30)
IEC/EN 60898
UL 1077
UL (Category Control Number QVNU2, QVNU8)
CSA (File No. 204453)
CE marking
CSA-C22.2 No. 235
UL (File No. E177451)
North America (UL recognized, CSA certified)
IEC/EN 60947-2
EN45545-2
IEC 61373
IEC/EN 60898
UL 1077
UL (Category Control Number QVNU2, QVNU8)
CSA (File No. 204453)
CE marking
CSA-C22.2 No. 235
UL (File No. E177451)
North America (UL recognized, CSA certified)
IEC/EN 60947-2
EN45545-2
IEC 61373
Model Code
FAZ-B16/1
Delivery Program
Application
Number of poles
Single-pole
Number of poles (total)
1
Number of poles (protected)
1
Tripping characteristic
B
Release characteristic
B
Amperage Rating
16 A
Type
- FAZ
- Miniature circuit breaker
Technical data - electrical
Voltage type
AC
Voltage rating
240 V AC / 415 V AC
Voltage rating at DC
60 V DC (per pole)
Voltage rating (IEC/EN 60898-1)
240 VAC
Voltage rating (UL)
277 V
Voltage rating (UL CSA 13)
277 V AC; 48 V DC
Rated operational voltage (Ue) - max
230 V
Operational voltage (IEC/EN 60947-2) - max
254 VAC
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Frequency rating - min
50 Hz
Frequency rating - max
60 Hz
Rated switching capacity (IEC/EN 60947-2) at max voltage rating
10 kA
Rated switching capacity (IEC/EN 60947-2)
15 kA
Rated switching capacity (IEC/EN 60898-1)
10 kA
Operational switching capacity
7.5 kA
Breaking capacity
10 kA (UL1077)
Rated service short-circuit breaking capacity (IEC/EN 60898-1)
7.5 kA
Rated service short-circuit breaking capacity (IEC/EN 60947-2)
7.5 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
10 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
15 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
15 kA
Admissible back-up fuse - max
125 A gL/gG
Selectivity class
3
Overvoltage category
III
Pollution degree
2
Lifespan, electrical
10000 operations
Direction of incoming supply
As required
Technical data - mechanical
Frame
45 mm
Enclosure width
80 mm
Width in number of modular spacings
1
Built-in depth
70.5 mm
Mounting width per pole
17.5 mm
Mounting width
17.5 mm
Mounting Method
Top-hat rail IEC/EN 60715
Mounting position
As required
Degree of protection
IP20 (IEC)
IP40 (when fitted)
IP20
UL/CSA Type: -
IP40 (when fitted)
IP20
UL/CSA Type: -
Terminals (top and bottom)
Twin-purpose terminals
Connectable conductor cross section (solid-core) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (multi-wired) - max
25 mm²
Terminal capacity of screw terminals for main cable
10 mm² (2x)
Terminal capacity (control cable)
25 mm² (1x)
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Busbar material thickness
0.8 mm - 2 mm
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
16 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
2.2 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
75 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Current limiting class
3
Features
Additional equipment possible
Special features
Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Used with
Miniature circuit breaker
FAZ
FAZ
| Caratteristica | Valore |
|---|---|
| profondità di montaggio (EF000218) | 70.5 mm |
| caratteristica di intervento (EF000889) | B |
| numero di poli (totale) (EF008618) | 1 |
| numero di poli protetti (EF005548) | 1 |
| corrente nominale (EF000227) | 16 A |
| tensione nominale (EF000228) | 230 V |
| tensione di isolamento nominale Ui (EF001366) | 440 V |
| resistenza nominale a tensione ad impulso (Uimp) (EF011980) | 4 kV |
| potere di interruzione nominale Icn secondo EN 60898 a 230 V (EF009556) | 10 kA |
| tipo di tensione (EF000187) | AC |
| potere di interruzione nominale Icn secondo EN 60898 a 400 V (EF009555) | 10 kA |
| potere di interruzione nominale Icu secondo IEC 60947-2 a 230 V (EF009557) | 15 kA |
| potere di interruzione nominale Icu secondo IEC 60947-2 a 400 V (EF009558) | 15 kA |
| frequenza (EF000416) | 50 Hz |
| potenza dissipata (EF005387) | 2.3 W |
| classe di limitazione energetica (EF002568) | 3 |
| montaggio a incasso (EF007517) | No |
| conduttore neutro a commutazione (EF005997) | No |
| categoria di sovratensione (EF002569) | 3 |
| grado di inquinamento (EF002570) | 2 |
| dispositivi supplementari possibili (EF008148) | Sì |
| numero di unità modulari (EF002950) | 1 |
| grado di protezione (IP) (EF005474) | IP20 |
| temperatura ambiente durante il funzionamento (EF007515) | -25 °C |
| sezione conduttore collegabile multifilare (EF007343) | 1 mm² |
| sezione conduttore collegabile unifilare (EF007337) | 1 mm² |
| antideflagrante (EF004663) | No |
