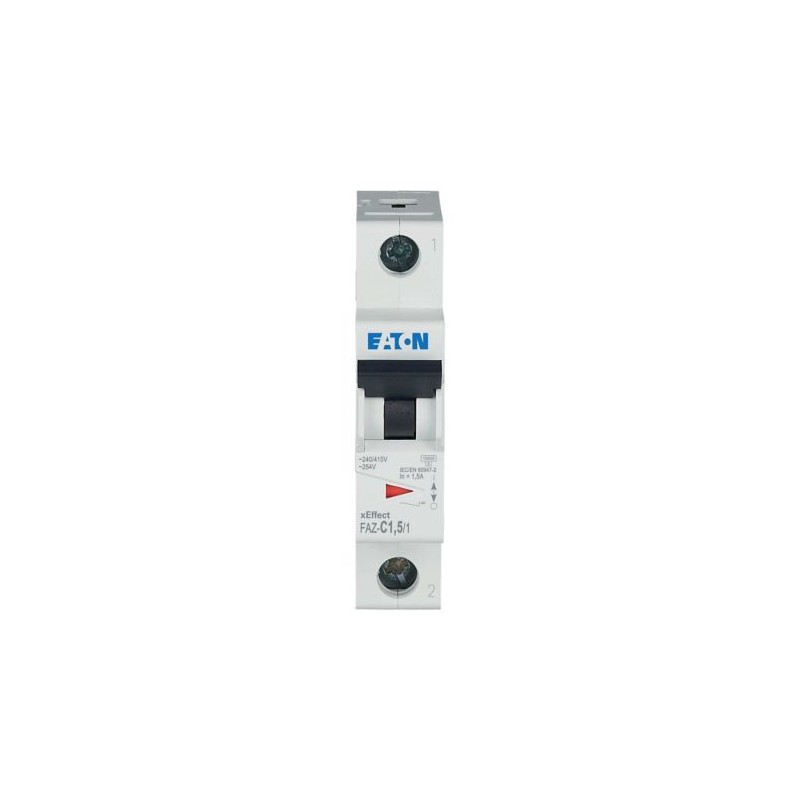

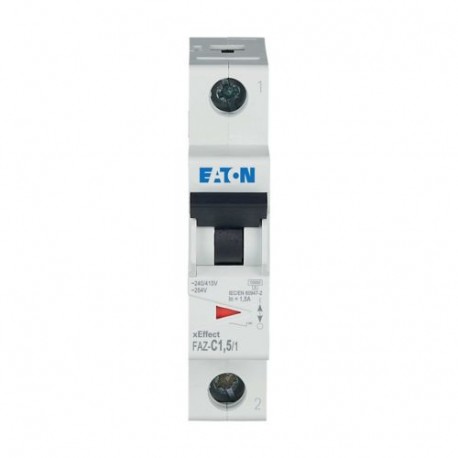

FAZ-C1,5/1 278547 Y7-278547 EATON ELECTRIC Interruttore protettore, 1,5A, 1p, curva caratteristica C
FAZ-C1,5/1
278547
Y7-278547
EATON-MOELLER
Interruttore protettore, 1,5A, 1p, curva caratteristica C
Interruttore automatico internazionale FAZ, 1.5A, 1P, curva C
Eaton Moeller series xEffect - FAZ MCB. FAZ, 1-pole, tripping characteristic: C, rated current In: 1.5 A
Interruttore automatico miniaturizzato, FAZ, 1 polo, Caratteristica di sgancio: C, Corrente nominale in: 1,5 A, Quadro elettrico per applicazioni industriali e commerciali avanzate
disgiuntori, fusibili, apparecchi per l’installazione in serie/su parete > Interruttore magnetotermico
Quadri modulari - industriali
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Related products
▲Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series xEffect - FAZ MCB
Catalog Number
278547
EAN
4015082785475
Product Length/Depth
80 mm
Product Height
75.5 mm
Product Width
17.7 mm
Product Weight
0.112 kg
Compliances
UL CSA09 (with supplementary protector only)
RoHS conform
RoHS conform
Certifications
UL 1077
CSA-C22.2 No. 235
IEC/EN 60947-2
North America (UL recognized, CSA certified)
IEC/EN 60898
UL (File No. E177451)
CSA (Class No. 3215-30)
UL (Category Control Number QVNU2, QVNU8)
CE marking
CSA (File No. 204453)
EN45545-2
IEC 61373
CSA-C22.2 No. 235
IEC/EN 60947-2
North America (UL recognized, CSA certified)
IEC/EN 60898
UL (File No. E177451)
CSA (Class No. 3215-30)
UL (Category Control Number QVNU2, QVNU8)
CE marking
CSA (File No. 204453)
EN45545-2
IEC 61373
Model Code
FAZ-C1,5/1
Specifiche del prodotto
Type
Special features
Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Application
- Branch circuits, not as BCPD
- Switchgear for industrial and advanced commercial applications
- xEffect - Switchgear for industrial and advanced commercial applications
Amperage Rating
1.5 A
Voltage rating
240 V AC / 415 V AC
Features
Additional equipment possible
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Pollution degree
2
Used with
FAZ
Miniature circuit breaker
Miniature circuit breaker
Degree of protection
IP20
IP20 (IEC)
UL/CSA Type: -
IP20 (IEC)
UL/CSA Type: -
Equipment heat dissipation, current-dependent
1.5 W
Rated impulse withstand voltage (Uimp)
4 kV
Breaking capacity
10 kA (UL1077)
Tripping characteristic
C
Voltage rating (UL CSA 13)
277 V AC; 48 V DC
Ambient operating temperature - max
75 °C
Ambient operating temperature - min
-25 °C
Built-in depth
70.5 mm
Connectable conductor cross section (multi-wired) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (solid-core) - min
1 mm²
Current limiting class
3
Frequency rating - max
60 Hz
Frequency rating - min
50 Hz
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Voltage rating (IEC/EN 60898-1)
240 VAC
Width in number of modular spacings
1
Voltage rating (UL)
277 V
Voltage type
AC
Overvoltage category
III
Number of poles
Single-pole
Release characteristic
C
Number of poles (protected)
1
Number of poles (total)
1
Operational voltage (IEC/EN 60947-2) - max
254 VAC
Rated insulation voltage (Ui)
440 V
Rated operational current for specified heat dissipation (In)
1.5 A
Rated operational voltage (Ue) - max
230 V
Rated service short-circuit breaking capacity (IEC/EN 60898-1)
7.5 kA
Rated service short-circuit breaking capacity (IEC/EN 60947-2)
7.5 kA
Rated short-circuit breaking capacity (EN 60898) at 230 V
10 kA
Rated short-circuit breaking capacity (EN 60898) at 400 V
10 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 230 V
15 kA
Rated short-circuit breaking capacity (IEC 60947-2) at 400 V
15 kA
Rated switching capacity (IEC/EN 60898-1)
10 kA
Rated switching capacity (IEC/EN 60947-2)
15 kA
Rated switching capacity (IEC/EN 60947-2) at max voltage rating
10 kA
Static heat dissipation, non-current-dependent
0 W
Power loss
1.3 W
| Caratteristica | Valore |
|---|---|
| profondità di montaggio (EF000218) | 70.5 mm |
| caratteristica di intervento (EF000889) | C |
| numero di poli (totale) (EF008618) | 1 |
| numero di poli protetti (EF005548) | 1 |
| corrente nominale (EF000227) | 1.5 A |
| tensione nominale (EF000228) | 230 V |
| tensione di isolamento nominale Ui (EF001366) | 440 V |
| resistenza nominale a tensione ad impulso (Uimp) (EF011980) | 4 kV |
| potere di interruzione nominale Icn secondo EN 60898 a 230 V (EF009556) | 10 kA |
| tipo di tensione (EF000187) | AC |
| potere di interruzione nominale Icn secondo EN 60898 a 400 V (EF009555) | 10 kA |
| potere di interruzione nominale Icu secondo IEC 60947-2 a 230 V (EF009557) | 15 kA |
| potere di interruzione nominale Icu secondo IEC 60947-2 a 400 V (EF009558) | 15 kA |
| frequenza (EF000416) | 50 Hz |
| potenza dissipata (EF005387) | 1.3 W |
| classe di limitazione energetica (EF002568) | 3 |
| montaggio a incasso (EF007517) | No |
| conduttore neutro a commutazione (EF005997) | No |
| categoria di sovratensione (EF002569) | 3 |
| grado di inquinamento (EF002570) | 2 |
| dispositivi supplementari possibili (EF008148) | Sì |
| numero di unità modulari (EF002950) | 1 |
| grado di protezione (IP) (EF005474) | IP20 |
| temperatura ambiente durante il funzionamento (EF007515) | -25 °C |
| sezione conduttore collegabile multifilare (EF007343) | 1 mm² |
| sezione conduttore collegabile unifilare (EF007337) | 1 mm² |
| antideflagrante (EF004663) | No |
