Visualizza ingrandito

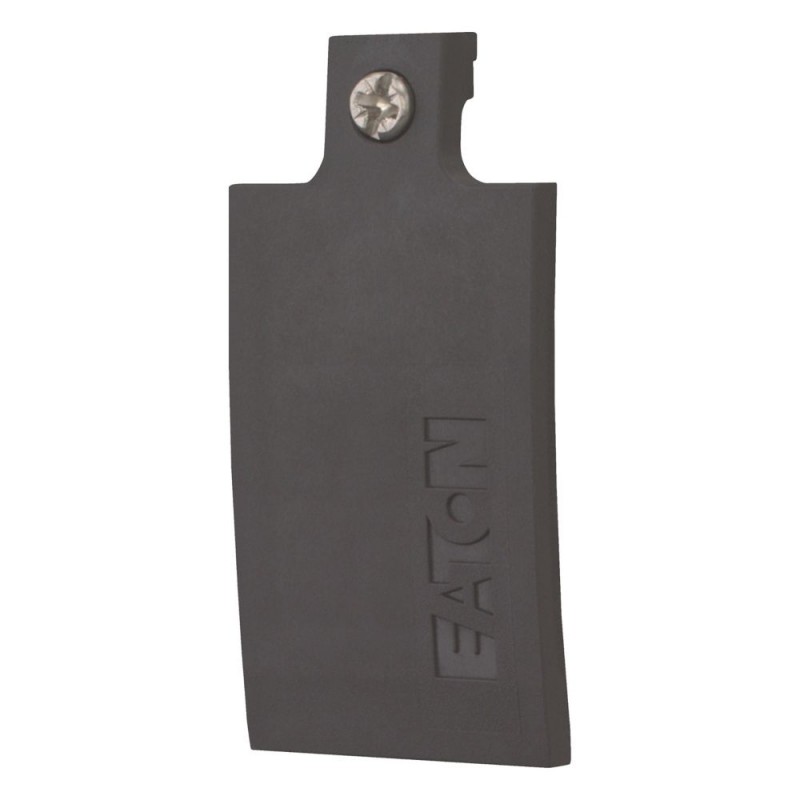

LS-XSD-S 280909 EATON ELECTRIC Coperchio a vite, materiale isolante, nero
LS-XSD-S
280909
EATON-MOELLER
Coperchio a vite, materiale isolante, nero
Coperchio di ricambio per LS-Titan; Plastica; Nero
Eaton Moeller® series LS Screw-on cover, insulated material, black
sensori > accessori per interruttore di posizione
Interruttori di posizione
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series LS Accessory Screw-on cover
Catalog Number
280909
EAN
4015082809096
Product Length/Depth
65 mm
Product Height
10 mm
Product Width
30 mm
Product Weight
0.008 kg
Compliances
CE
Model Code
LS-XSD-S
Specifiche del prodotto
Accessory/spare part type
Cover without LED
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
IP65
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| LS-XSD-S LS-XSD-S 280909 IT_280909.pdf | 107 Kbytes |
|
