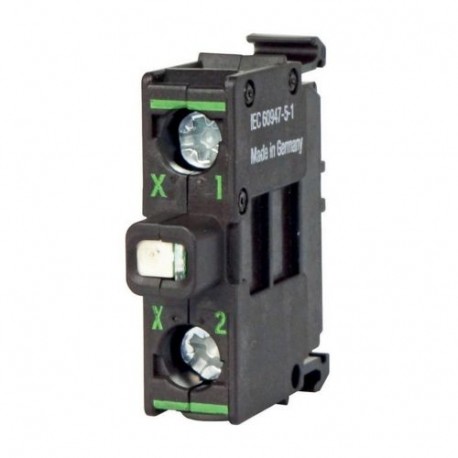

M22-LEDC-B 218058 Y7-218058 EATON ELECTRIC Elemento luminoso, LED, azzurro, fissaggio a pavimento, 12-30VAC/.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-LEDC-B 218058 Y7-218058 EATON ELECTRIC Elemento luminoso, LED, azzurro, fissaggio a pavimento, 12-30VAC/..

M22-LEDC-B

218058

Y7-218058

EATON-MOELLER

20

Elemento luminoso, LED, azzurro, fissaggio a pavimento, 12-30VAC/DC, collegamento a vite

Elemento LED Blu Montaggio posteriore 12-30 V AC/DC Collegamento a vite

Eaton Moeller® series M22 Light element, LED, blue, base fixing, 12-30VAC/DC, screw connection

Elemento LED, Fissaggio: Fissaggio alla base, Tecnica di collegamento: Morsetti a vite, Tensione nominale di esercizio: Ue= 12 - 30 V AC/DC, 50/60 Hz V, Corrente nominale di esercizio: Ie= 8 - 15 mA, Potenza assorbita: Pmax.= 0,26 W, a 24 V, Grado di protezione: IP20, Collegamento a SmartWire-DT: no, Norme: IEC 60947-5-1

Maggiori dettagli
