> EATON - MOELLER>Ausili di controllo e segnalazione >LEDWB-W 208728 Y7-208728 ELECTRIC LED, W2x4.6d, 18-30VDC, 7-12.5mA, bianco
ANUNCIAR
Prodotto precedente Prodotto successivo

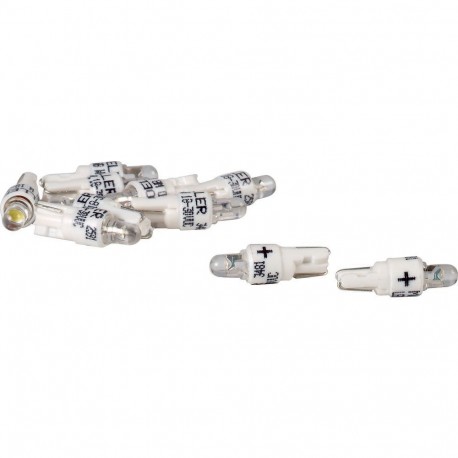

LEDWB-W 208728 Y7-208728 EATON ELECTRIC LED, W2x4.6d, 18-30VDC, 7-12.5mA, bianco Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

LEDWB-W 208728 Y7-208728 EATON ELECTRIC LED, W2x4.6d, 18-30VDC, 7-12.5mA, bianco

LEDWB-W

208728

Y7-208728

EATON-MOELLER

10

LED, W2x4.6d, 18-30VDC, 7-12.5mA, bianco

Lampada LED Bianca 18-30 V 7-12 mA

Eaton Moeller® series RMQ16 LED, W2x4.6d, 18-30VDC, 7-12.5mA, white

LED di ricambio con attacco a cuneo, adatto ad es. per luci di segnalazione RMQ16 e pulsanti luminosi, colore bianco

Maggiori dettagli


Lampade e sorgenti luminose > LED singolo

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $130.25
Prezzo unitario: $13.02
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Single chip LED
Catalog Number
208728
EAN
4015082087289
Product Length/Depth
17 mm
Product Height
5 mm
Product Width
5 mm
Product Weight
0.7 g
Certifications
UL/CSA certification not required
Model Code
LEDWB-W

Features & Functions

Color
White

General

Average nominal lifespan
100000 hour
Lifespan, electrical
100,000 h (at 25°C, according to EN60064)
Product category
Accessories
Voltage type
DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Electrical rating

Nominal current
12500 mA
Nominal voltage - min
18 V
Nominal voltage - max
30 V
Power consumption
0.2505 W

Actuator

Actuator diameter
0 mm

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.12 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208728 Lampade (EC001019)
Caratteristica Valore
colore (EF000007) bianco
flusso luminoso (EF000078) 0 lm
tensione nominale (EF000002) 30 V
tipo di tensione (EF000187) DC
corrente nominale (EF000001) 12500 mA
assorbimento di potenza (EF000346) 0.2505 W
diametro (EF000551) 0 mm
lunghezza (EF001438) 17 mm
angolo di irraggiamento (EF000128) 360 °
classe di efficienza energetica secondo la direttiva europea 2019/2015 (EF017139) F
consumo energetico ponderato in 1000 ore (EF009483) 240 kWh
durata di vita nominale media (EF008342) 100000 h

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LEDWB-W Y7-208728 208728 EN_025434.pdf 1 Mbytes LEDWB-W Y7-208728 208728 EN_025434.pdf
