> EATON - MOELLER>Accessori KDIL>DILM150-XMVE 107020 XTCEXMLGB ELECTRIC Interblocco, meccanico, per DILM80-150
Prodotto precedente Prodotto successivo

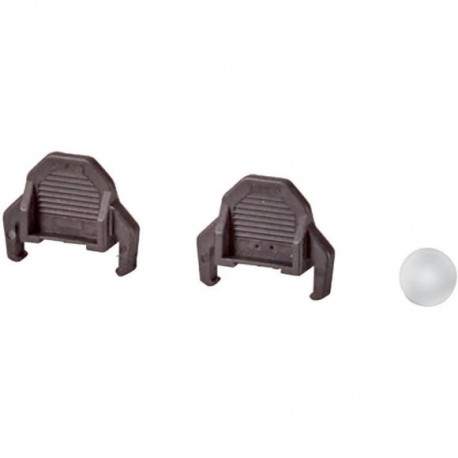

DILM150-XMVE 107020 XTCEXMLGB EATON ELECTRIC Interblocco, meccanico, per DILM80-150 Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM150-XMVE 107020 XTCEXMLGB EATON ELECTRIC Interblocco, meccanico, per DILM80-150

DILM150-XMVE

107020

XTCEXMLGB

EATON-MOELLER

Interblocco, meccanico, per DILM80-150

Interblocco meccanico per contattori DILM80... 170

Eaton Moeller® series DILM Interlock, mechanical, for DILM80-150 DILM150-XMVE

Maggiori dettagli


apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Accessori KDIL

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $11.54
Prezzo unitario: $11.54

Quantità Prezzo
1+$11.54
2+$11.55
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM interlock
Catalog Number
107020
EAN
4015081067886
Product Length/Depth
18 mm
Product Height
8 mm
Product Width
18 mm
Product Weight
0.004 kg
Certifications
UL/CSA certification not required
Catalog Notes

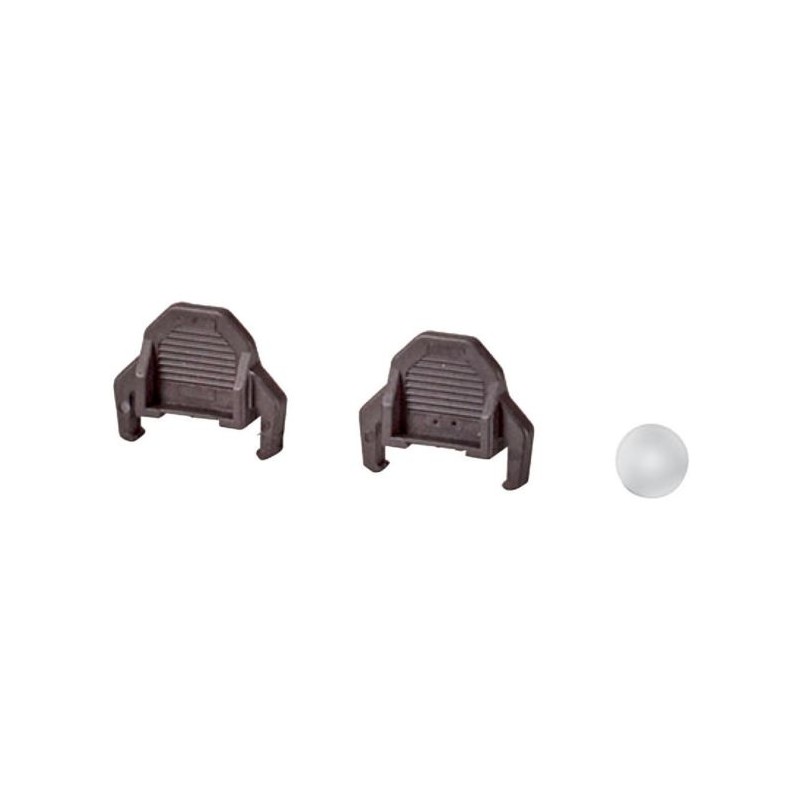

Ball for mechanical interlock, incl. contactor connector.
Model Code
DILM150-XMVE

Informazioni generali

Accessory/spare part type
Mechanical locking
Product category
Accessories

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 34 Mbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
DILM150-XMVE XTCEXMLGB 107020 ES_240081.pdf 2 Mbytes DILM150-XMVE XTCEXMLGB 107020 ES_240081.pdf
