E-PKZ0-GR 072908 Y7-72908 EATON ELECTRIC Custodia in materiale isolante, da incasso, maniglia rotativa rossa..
E-PKZ0-GR
072908
Y7-72908
EATON-MOELLER

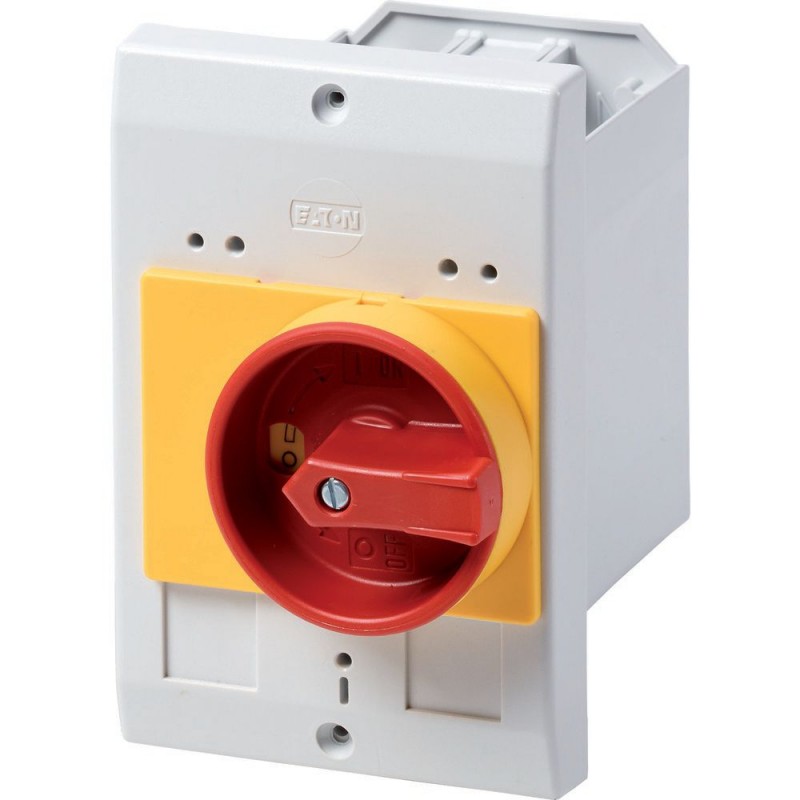

Custodia in materiale isolante, da incasso, maniglia rotativa rossa gialla, IP55
IP55 Scatola isolante da incasso per PKZ01 + manopola rotante
Eaton Moeller® series E-PKZ0 Insulated enclosure, E-PKZ0, H x W x D = 129 x 85 x 124 mm, flush mounted, rotary handle, red/yellow, IP55
Scatola isolata per montaggio ad incasso, per PKZM0, grado di protezione IP55 morsetto integrato per collegamento PE(N)., tramite 2 ingressi cavo ciechi M25, con maniglia girevole rosso-gialla
Apparecchi elettrici a bassa tensione > Scatola per stazione di comando a sospensione
Motor Protective Switches
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Comprati di solito insieme
▲Più venduti
▲Dettagli
▲General specifications
| Product Name | Eaton Moeller® series E-PKZ0 Accessory Insulated enclosure |
| Catalog Number | 072908 |
| EAN | 4015080729082 |
| Product Length/Depth | 124 mm |
| Product Height | 129 mm |
| Product Width | 85 mm |
| Product Weight | 0.224 kg |
| Certifications | UL UL File No.: E36332 UL 508 CSA CSA Class No.: 3211-05 CSA File No.: 165628 UL Category Control No.: NLRV IEC/EN 60947-4-1 CE CSA-C22.2 No. 14 |
| Model Code | E-PKZ0-GR |
Features & Functions
| Enclosure material | Plastic |
| Fitted with: | Red-yellow rotary knob, for use as EMERGENCY STOP switch (according to EN 60204) PE(N) terminal |
General information
| Degree of protection (front side) | IP55 NEMA 12 NEMA 1 NEMA 3R |
| Model | Built-in |
| Product category | Accessories |
| Product category | Accessories |
| Suitable for | Emergency stop |
Climatic environmental conditions
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 40 °C |
Design verification
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Caratteristica | Valore |
|---|---|
| materiale della scatola (EF001596) | materiale sintetico |
| larghezza (EF000008) | 85 mm |
| altezza (EF000040) | 129 mm |
| profondità (EF000049) | 124 mm |
| con coperchio trasparente (EF001094) | No |
| adatto per arresto d'emergenza (EF001433) | Sì |
| versione (EF000010) | inseribile |
| grado di protezione (IP) (EF005474) | IP55 |
| indice di protezione (NEMA) (EF011959) | altro |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| E-PKZ0-GR Y7-72908 072908 IT_072908.pdf | 75 Kbytes |
|
