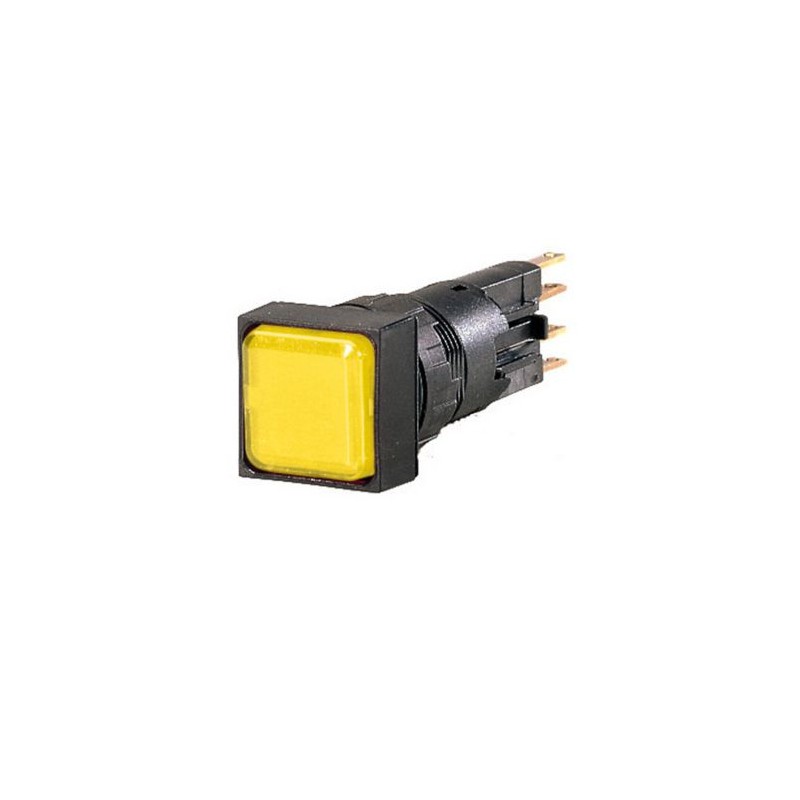

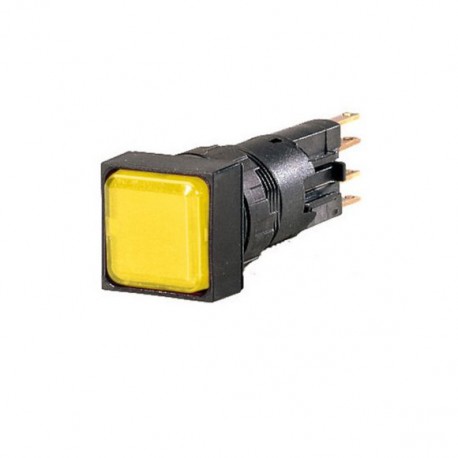

Q18LF-GE/WB 087915 Y7-87915 EATON ELECTRIC Indicatore luminoso, piatto, giallo, +lampada a filamento, 24 V Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

Q18LF-GE/WB 087915 Y7-87915 EATON ELECTRIC Indicatore luminoso, piatto, giallo, +lampada a filamento, 24 V

Q18LF-GE/WB

087915

Y7-87915

EATON-MOELLER

10

Indicatore luminoso, piatto, giallo, +lampada a filamento, 24 V

Indicatore luminoso da incasso 16 mm 18x18 mm giallo con lampada bassa

Eaton Moeller® series RMQ16 Indicator light, flush, yellow, +filament lamp, 24 V Q18LF-GE/WB

Spia di segnalazione, Gamma prodotti: RMQ16, Unità singola, Design: Piatto, Colore lente: giallo, Grado di protezione: IP65, Collegamento SmartWire-DT: no, Dimensioni frontali: Dimensioni frontali 18 × 18 mm

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Lampada da quadro

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $137.93
Prezzo unitario: $13.79
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series RMQ16 Indicator light
Catalog Number
087915
EAN
4015080879152
Product Length/Depth
59 mm
Product Height
18 mm
Product Width
18 mm
Product Weight
0.009 kg
Certifications
UL File No.: E29184
CSA
CSA File No.: 46552
IEC/EN 60947
CSA-C22.2 No. 14-05
UL 508
IEC/EN 60947-5
CE
CSA Class No.: 3211-03
UL Category Control No.: NKCR
UL
Model Code
Q18LF-GE/WB

Features & Functions

Bezel color
Black
Bezel material
Plastic
Design
Flat
Fitted with:
Front ring
Lens color
Yellow

General

Degree of protection
NEMA 1
Degree of protection (front side)
IP65
Opening diameter
16 mm
Overvoltage category
III
Pollution degree
3
Product category
RMQ16
Rated impulse withstand voltage (Uimp)
800 V AC
Size
Front dimensions: 18 x 18 mm
Terminal capacity
0.5 - 1.0 mm²
Terminal size
2.8 x 0.8 mm to DIN 46244, Blade terminal
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Type
Indicator lights

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Electrical rating

Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - max
24 V

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 087915 Apparecchi elettrici a bassa tensione (EC000223)
Caratteristica Valore
numero di segnalatori luminosi installabili (EF006669) 1
colore della lente (EF000207) giallo
tipo di lente (EF006253) quadratico
diametro del foro (EF000079) 16 mm
larghezza dell'apertura (EF004565) 0 mm
altezza dell'apertura (EF004778) 16 mm
con anello frontale (EF006014) Sì
materiale dell'anello frontale (EF005972) materiale sintetico
colore dell'anello frontale (EF002429) nero
versione della lente (EF008343) piatto
grado di protezione (IP), lato frontale (EF003118) IP65
indice di protezione (NEMA) (EF011959) 1

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
Q18LF-GE/WB Y7-87915 087915 EN_025434.pdf 1 Mbytes Q18LF-GE/WB Y7-87915 087915 EN_025434.pdf
