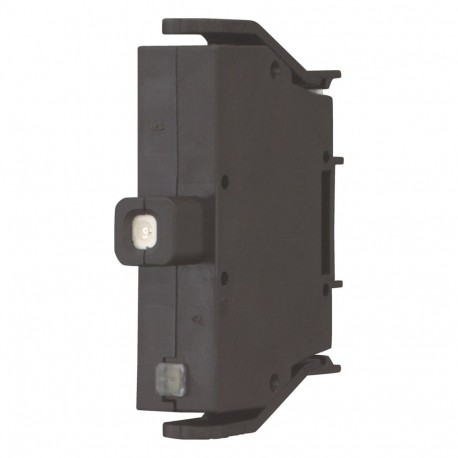

M22-SWD-LEDC-B 115998 Y7-115998 EATON ELECTRIC Elemento funzionale di illuminazione, SmartWire-DT, LED, azzu..
M22-SWD-LEDC-B
115998
Y7-115998
EATON-MOELLER
Elemento funzionale di illuminazione, SmartWire-DT, LED, azzurro, fissaggio a pavimento
SmartWire-DT Elemento LED Blu Montaggio Posteriore
Eaton Moeller® series M22 LED element, for combination with RMQ-Titan operating elements M22-..., Base fixing, blue
Elemento LED, Montaggio: Montaggio su base, Collegamento a SmartWire-DT: sì
Apparecchi elettrici a bassa tensione > Portalampada per lampada di controllo circuiti
Ausili di controllo e segnalazione
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series M22 LED element
Catalog Number
115998
EAN
4015081157389
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
UL File No.: E29184
CSA File No.: 2324643
IEC/EN 61131-2
UL
CSA
UL Category Control No.: NKCR
CSA Class No.: 3211-07
EN 50178
CSA File No.: 2324643
IEC/EN 61131-2
UL
CSA
UL Category Control No.: NKCR
CSA Class No.: 3211-07
EN 50178
Model Code
M22-SWD-LEDC-B
Features & Functions
Fitted with:
Light source
Functions
For combination with RMQ-Titan operating elements M22-...
Light color
Blue
General
Degree of protection
IP20
Overvoltage category
Not applicable
Pollution degree
2
Voltage type
DC
Ambient conditions, mechanical
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
55 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)
Electro magnetic compatibility
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)
Electrical rating
Rated operational voltage (Ue) at AC - max
0 V
Rated operational voltage (Ue) at AC - min
0 V
Rated operational voltage (Ue) at DC - max
30 V
Rated operational voltage (Ue) at DC - min
30 V
Communication
Connection
SmartWire-DT plug connector M22-SWD-I…LP
Connection to SmartWire-DT
Yes
Connection type
SWD: Plug, 8-pole
Base fixing
Base fixing
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.3 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caratteristica | Valore |
|---|---|
| trasformatore integrato (EF001358) | No |
| con preresistenza integrata (EF001399) | No |
| con corpo luminoso (EF005905) | Sì |
| con diodo integrato (EF001400) | No |
| portalampada (EF000048) | senza |
| tensione d'esercizio nominale Ue per AC 50 Hz (EF007029) | 0 V |
| tensione d'esercizio nominale Ue per AC 60 Hz (EF007030) | 0 V |
| tensione d'esercizio nominale Ue per DC (EF007031) | 30 V |
| tipo di tensione per l'azionamento (EF008242) | DC |
| sorgente luminosa (EF002423) | LED |
| tipo di collegamento circuito elettrico ausiliario (EF006820) | collegamento a connettore piatto |
| colore del corpo luminoso (EF001402) | blu |
| tipo di fissaggio (EF002442) | fissaggio a pavimento |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22-SWD-LEDC-B Y7-115998 115998 IT_115973.pdf | 2 Mbytes |
|
