> EATON - MOELLER>Sezionatori e interruttori a camme>H-T8 200184 ELECTRIC Coprimorsetti (6 pez.)
Prodotto precedente Prodotto successivo

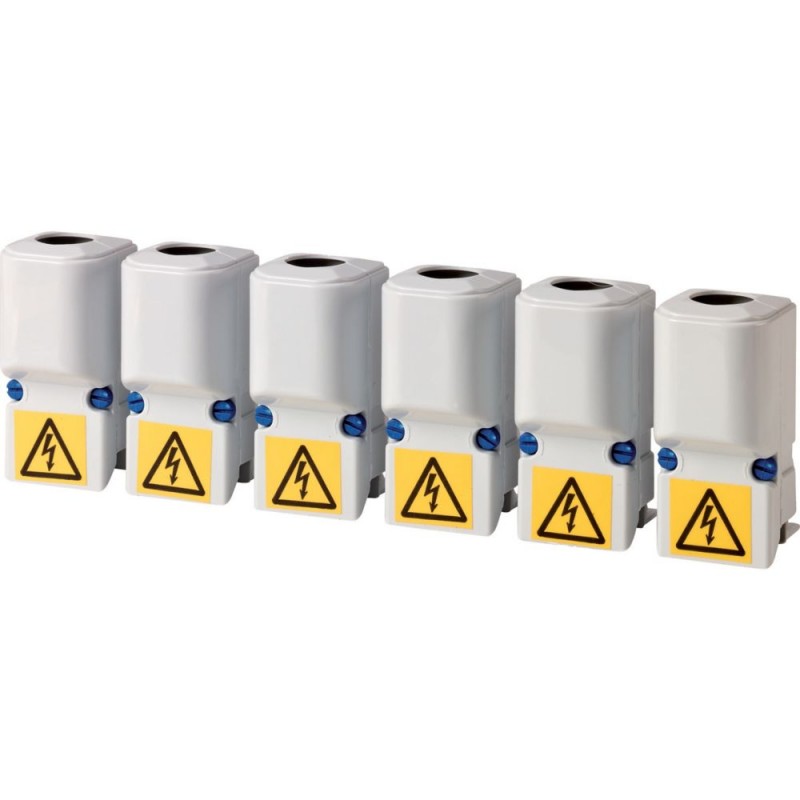

H-T8 200184 EATON ELECTRIC Coprimorsetti (6 pez.) Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

H-T8 200184 EATON ELECTRIC Coprimorsetti (6 pez.)

H-T8

200184

Y7-200184

EATON-MOELLER

6

Coprimorsetti (6 pez.)

Cubrebornes T8; 6 unità

Eaton Moeller® series Terminal shroud, T8-3-8342/…

Maggiori dettagli


apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Sezionatori e interruttori a camme

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $129.13
Prezzo unitario: $21.52

Quantità Prezzo
6+$21.52
12+$18.57
18+$17.61
*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series Accessory Terminal shroud
Catalog Number
200184
EAN
4015082001841
Product Length/Depth
81 mm
Product Height
53 mm
Product Width
228 mm
Product Weight
0.16 kg
Certifications
UL/CSA certification not required
Model Code
H-T8

Specifiche del prodotto

Type
Terminal cover
Accessories
Shroud for connection terminals for (busbar tag shroud)
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Cover
Used with
T8-3-8342/…
T8-3-8342/...
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SAFE SWITCHING EN.pdf 928 Kbytes
PDF CATALOGUE EATON EN.pdf 51 Mbytes
H-T8 Y7-200184 200184 ES_200183.pdf 2 Mbytes H-T8 Y7-200184 200184 ES_200183.pdf
