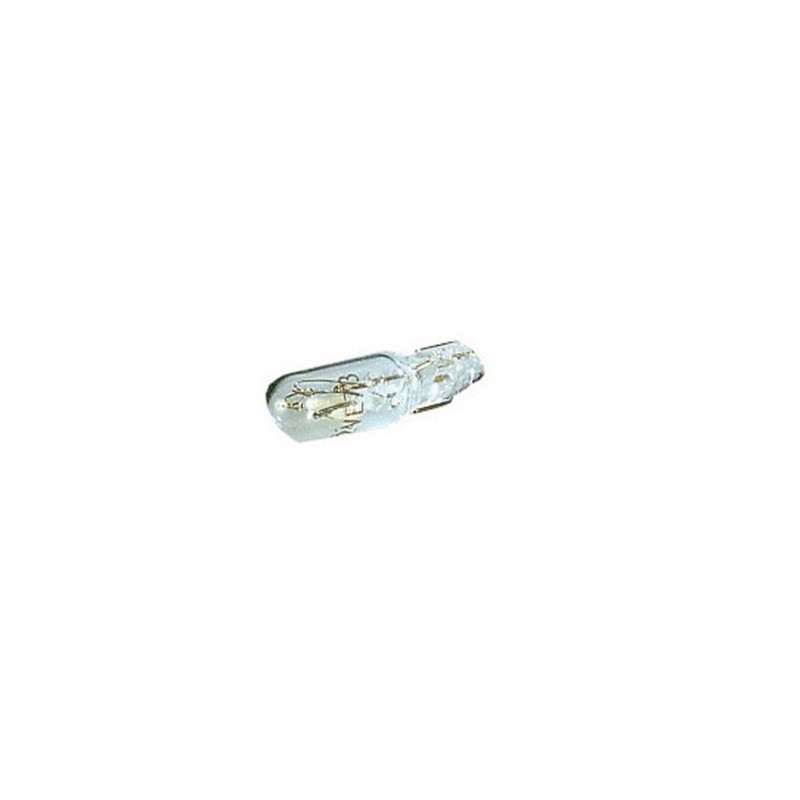

WBGL24 089247 Y7-89247 EATON ELECTRIC Lampada a filamento, 24-28V, W2x4, 6d, 1W Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

WBGL24 089247 Y7-89247 EATON ELECTRIC Lampada a filamento, 24-28V, W2x4, 6d, 1W

WBGL24

089247

Y7-89247

EATON-MOELLER

100

Lampada a filamento, 24-28V, W2x4, 6d, 1W

Lampada a incandescenza 24-28V W2x4 6 d 1W

Eaton Moeller® series RMQ16 Filament lamp, 24-28V, W2x4, 6 d, 1W

Maggiori dettagli


Lampade e sorgenti luminose > Lampada di indicazione e segnalazione

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $149.13
Prezzo unitario: $1.49
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series RMQ16 Accessory Filament lamp
Catalog Number
089247
EAN
4015080892472
Product Length/Depth
19 mm
Product Height
6 mm
Product Width
6 mm
Product Weight
0.005 kg
Certifications
UL/CSA certification not required
Model Code
WBGL24

Features & Functions

Color
Colorless

General

Average nominal lifespan
3000 hour
Lifespan, electrical
7,000 h (at 25°C, according to EN60064)
Product Category
Accessories
Suitable for
Pointer

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Electrical rating

Nominal current
40 mA

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
1 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 089247 Lampade (EC000399)
Caratteristica Valore
potenza della lampada (EF011586) 1 W
tensione della lampada (EF008856) 24 V
flusso luminoso (EF000078) 0 lm
base (EF000042) W2×4,6d
tecnologia (EF002370) lampada a incandescenza
forma della lampada (EF001360) forma a pera
alogeno (EF002365) No
Krypton (EF002329) No
xeno (EF008331) No
colore (EF000007) incolore
temperatura di colore (EF000103) 2800 K
diametro (EF000551) 5 mm
lunghezza totale (EF000369) 19 mm
adatto per torce (EF002359) No
adatto per scopi di visualizzazione (EF002360) Sì
adatto per lampada rotante (EF012517) No
corrente nominale (EF000001) 40 mA
durata di vita nominale media (EF008342) 3000 h
classe di efficienza energetica secondo la direttiva europea 2019/2015 (EF017139) G

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
WBGL24 Y7-89247 089247 EN_025434.pdf 1 Mbytes WBGL24 Y7-89247 089247 EN_025434.pdf
