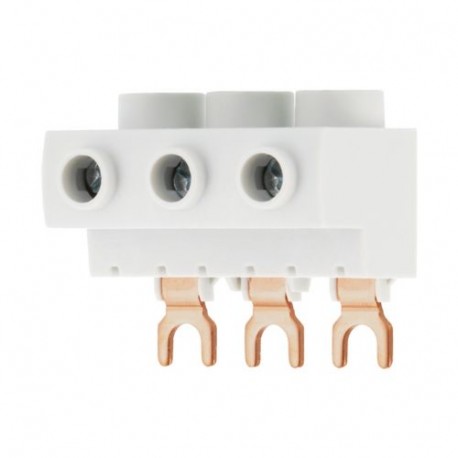

BK25/3-PKZ0 032720 Y7-32720 EATON ELECTRIC Morsetto di alimentazione, 3p, 25mm² Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

BK25/3-PKZ0 032720 Y7-32720 EATON ELECTRIC Morsetto di alimentazione, 3p, 25mm²

BK25/3-PKZ0

032720

Y7-32720

EATON-MOELLER

Morsetto di alimentazione, 3p, 25mm²

Morsetto di potenza 3 poli 25 mm² 63 A

Eaton Moeller® series PKZ Extension terminal, 3p, 25mm² BK25/3-PKZ0

Morsetto di prolunga per blocco sbarre trifase che protegge dai contatti diretti., Ue = 690 V, Iu = 63 A, per il collegamento di: o 2,5-25 mm2 trecciato o 2,5-16 mm2 flessibile con ghiera

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Accessori per la tecnologia degli interruttori a bassa tensione

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $12.35
Prezzo unitario: $12.35
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

Comprati di solito insieme

Più venduti

Dettagli



General specifications

Product Name
Eaton Moeller® series PKZ Connection clamp
Catalog Number
032720
EAN
4015080327202
Product Length/Depth
25 mm
Product Height
38 mm
Product Width
45 mm
Product Weight
0.041 kg
Certifications
CSA Class No.: 3211-05
UL
CSA-C22.2 No. 14
CSA File No.: 165628
CSA
CE
UL 508
UL Category Control No.: NLRV
UL File No.: E36332
IEC/EN 60947-4-1
Model Code
BK25/3-PKZ0

General

Accessory/spare part type
Connection terminal
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
5.4 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.8 W
Rated operational current for specified heat dissipation (In)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 032720 Apparecchi elettrici a bassa tensione (EC002498)
Caratteristica Valore
tipo di accessori/pezzi di ricambio (EF000215) morsetto di raccordo
accessorio (EF013236)
pezzo di ricambio (EF013237) No

Datasheet - PDF
