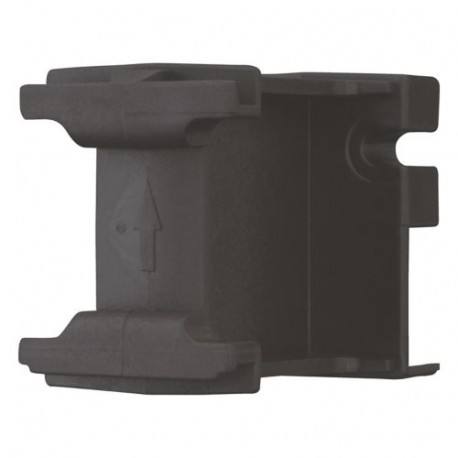

M22-TCV 225527 Y7-225527 EATON ELECTRIC Prolunga, per clip telescopica Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-TCV 225527 Y7-225527 EATON ELECTRIC Prolunga, per clip telescopica

M22-TCV

225527

Y7-225527

EATON-MOELLER

Prolunga, per clip telescopica

Prolunga telescopica a clip

Eaton Moeller® series M22 Extension, for telescopic clip

Prolunga a clip telescopica con una profondità di montaggio di 205 mm

Maggiori dettagli


Apparecchi elettrici a bassa tensione > accessori per apparecchi di comando

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $3.61
Prezzo unitario: $3.61
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

Più venduti

Dettagli



General specifications

Product Name
Eaton Moeller® series M22 Accessory Telescopic clip extension
Catalog Number
225527
EAN
4015082255275
Product Length/Depth
55 mm
Product Height
30 mm
Product Width
40 mm
Product Weight
0.023 kg
Certifications
UL 508
IEC/EN 60947-5
UL File No.: E29184
CSA Class No.: 3211-03
UL
CSA
CSA File No.: 012528
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
Model Code
M22-TCV

General

Accessory/spare part type
Accessory

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 225527 Apparecchi elettrici a bassa tensione (EC002024)
Caratteristica Valore
tipo di accessori/pezzi di ricambio elettrici (EF005722) altro
tipo di accessori/pezzi di ricambio meccanici (EF005994) altro
accessorio (EF013236)
pezzo di ricambio (EF013237) No

Datasheet - PDF
