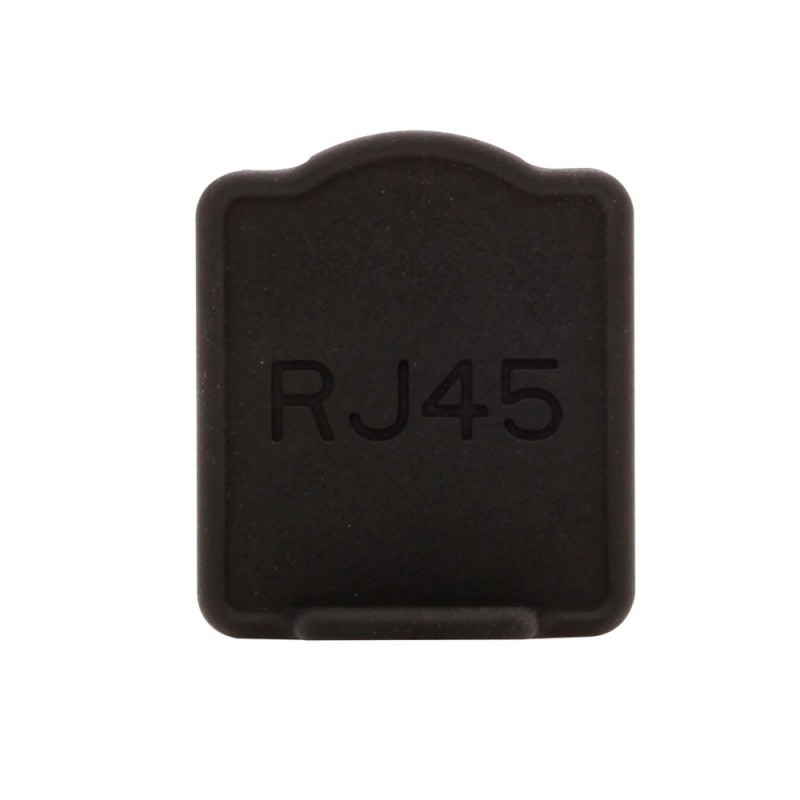

DXG-KEY-N12PLUG 730-32038-00P EATON ELECTRIC DXG-KEY-N12PLUG DG1 COPERT IP54 ALL TAST
DXG-KEY-N12PLUG
7303203800P
EATON-MOELLER
20
DXG-KEY-N12PLUG DG1 COPERT IP54 ALL TAST
IP54 RJ45 Spina di collegamento della tastiera per convertitori DG1
Eaton DG1 Stopper for keypad connection, type 12/IP54; DG1 variable frequency drive
Convertitori di frequenza Power XL
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Dettagli
▲General specifications
Product Name
Eaton DXG Keypad option
Catalog Number
730-32038-00P
EAN
4015081721719
Product Length/Depth
45 mm
Product Height
130 mm
Product Width
105 mm
Product Weight
0.005 kg
Compliances
CE
Model Code
DXG-KEY-N12PLUG
Specifiche del prodotto
Product Category
Accessories
Type
Cover for RJ45 interface
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DG1
Accessory/spare part type
Cover
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
