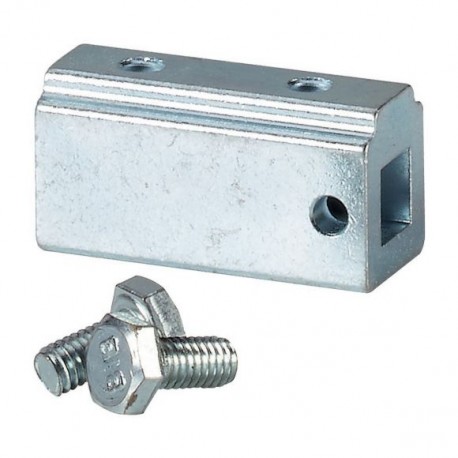

Coupling 8x8mm 1319332 Y8-1319332 EATON ELECTRIC Accoppiamento azionamento, per albero, 8x8mm Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

Coupling 8x8mm 1319332 Y8-1319332 EATON ELECTRIC Accoppiamento azionamento, per albero, 8x8mm

Coupling 8x8mm

1319332

Y8-1319332

EATON-MOELLER

Accoppiamento azionamento, per albero, 8x8mm

Kit per asse 8x8mm

Eaton Drive coupling, for shaft, 8x8 mm

Accessori: Maglie di accoppiamento per prolunga albero cardanico (anche tipo QSA), 8x8 mm

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Maniglia di chiusura porte per quadri

Disconnettori per interruttori DUMECO

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $36.64
Prezzo unitario: $36.64
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

Dettagli



General specifications

Product Name
Eaton Accessory Connection piece for shaft extension
Catalog Number
1319332
EAN
8711426105379
Product Length/Depth
200 mm
Product Height
11 mm
Product Width
115 mm
Product Weight
0.03 kg
Compliances
CE
Model Code
Coupling 8x8mm

Specifiche del prodotto

Type
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Degree of protection
NEMA Other
Shaft diameter
8 x 8 mm

ETIM for 1319332 Apparecchi elettrici a bassa tensione (EC000230)
Caratteristica Valore
con prolungamento d'asse (EF001968) No
con bloccaggio porta (EF001969) No
chiudibile (EF000113) No
con maniglia rossa/gialla (EF001970) No
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF
