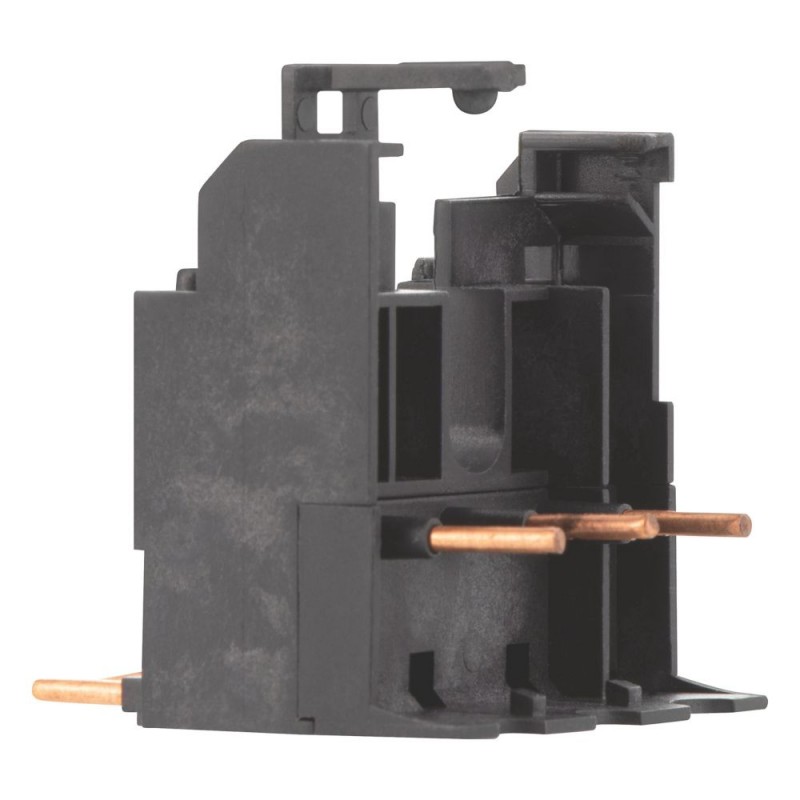

MVS-LBM0-EM 220219 Y7-220219 EATON ELECTRIC Elemento di collegamento, longitudinale, per PKZM0+DILE(E)M(-G) Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

MVS-LBM0-EM 220219 Y7-220219 EATON ELECTRIC Elemento di collegamento, longitudinale, per PKZM0+DILE(E)M(-G)

MVS-LBM0-EM

220219

Y7-220219

EATON-MOELLER

Elemento di collegamento, longitudinale, per PKZM0+DILE(E)M(-G)

Collegamento elettromeccanico per PKZM0 + DILEM

Eaton Moeller® series MVS Connector, lengthwise, for PKZM0+DILE(E)M(-G)

Connettore elettrico e meccanico per circuito di protezione motore PKZM0 e contattore DILE, 3 poli

Maggiori dettagli


Apparecchi elettrici a bassa tensione > set di cablaggio per breaker

Motor Protective Switches

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $6.31
Prezzo unitario: $6.31
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series MVS Accessory Connector
Catalog Number
220219
EAN
4015082202194
Product Length/Depth
51 mm
Product Height
46 mm
Product Width
45 mm
Product Weight
0.019 kg
Compliances
CE
Model Code
MVS-LBM0-EM

General

Model
Direct circuit
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0.3 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.1 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 220219 Apparecchi elettrici a bassa tensione (EC002050)
Caratteristica Valore
adatto per numero di poli (EF001589) 3
versione (EF000010) circuito diretto

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
MVS-LBM0-EM Y7-220219 220219 DE_220219.pdf 667 Kbytes MVS-LBM0-EM Y7-220219 220219 DE_220219.pdf
