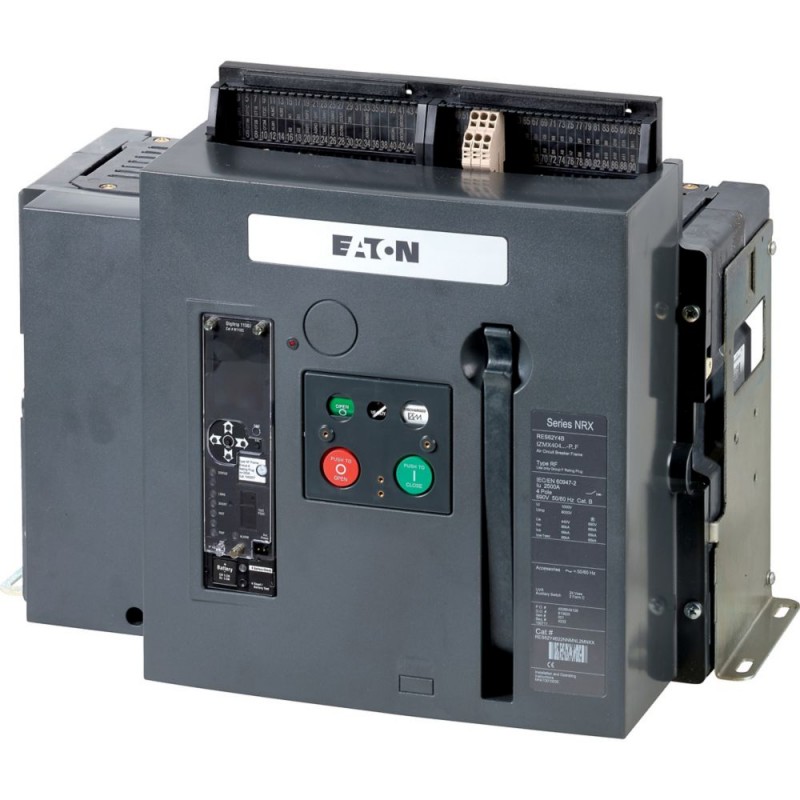

IZMX40B4-P32F 149883 EATON ELECTRIC Interruttore automatico di potenza, 4p, 3200 A, fisso
IZMX40B4-P32F
149883
EATON-MOELLER
Interruttore automatico di potenza, 4p, 3200 A, fisso
IZMX40 Interruttore automatico (Interruttori automatici/Interruttori-Sezionatori), 4 poli, Campo di corrente: fino a 4000 A, Corrente nominale = corrente nominale ininterrotta ( In = Iu): 3200 A, fino a 440 V 50/60 Hz ( Icu): 66 kA, fino a 440 V 50/60 Hz ( Ics): 66 kA, Sezionatore per sovraccarico, min. ( Ir): 1600 A, Sezionatore per sovraccarico, max. ( Ir): 3200 A, Tipo di installazione: Fisso, Standard/Approvazione: IEC, Funzione di protezione: Protezione professionale
Apparecchi elettrici a bassa tensione > Breaker per trasformatori / generatori / impianti
Home > EATON - MOELLER
Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number
149883
EAN
4015081462711
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
56 kg
Compliances
IEC
IEC/EN 60947
IEC/EN 60947
Model Code
IZMX40B4-P32F
Delivery program
Type
Air circuit breakers/switch-disconnectorOpen circuit breaker
Frame
IZMX40
Number of poles
Four-pole
Amperage Rating
3200 A
Release system
Electronic release
Technical data - electrical
Voltage rating at AC
690 V AC
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp)
12 kV AC
Rated uninterrupted current (Iu)
3200 A
Rated uninterrupted current (Iu) at 50°C
3200 A
Rated uninterrupted current (Iu) at 60°C
3200 A
Rated uninterrupted current (Iu) at 70°C
3200 A
Rated short-time withstand current (t = 1 s)
66 kA
Rated short-time withstand current at 50/60 Hz (t = 3 s)
53 kA
Overload release current setting - min
1600 A
Overload release current setting - max
3200 A
Short-circuit release delayed setting - min
3200 A
Short-circuit release delayed setting - max
32000 A
Short-circuit release non-delayed setting
2 - 10 x Ir
Short-circuit release non-delayed setting - min
0 A
Short-circuit release non-delayed setting - max
38400 A
Adjustment range short-term delayed short-circuit release - min
6400 A
Adjustment range short-term delayed short-circuit release - max
32000 A
Adjustment range undelayed short-circuit release - min
6400 A
Adjustment range undelayed short-circuit release - max
38400 A
Rated short-circuit breaking capacity at 400 V, 50 Hz
66 kA
Rated short-circuit making capacity up to 440 V, 50/60 Hz
145 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
145 kA
Closing delay via spring release
35 ms
Electrical connection type of main circuit
Rail connection
Number of standard mechanical operations per hour - max
60
Operating sequence up to 690 V, 50/60 Hz (IEC/EN 60947)
66 kA
Utilization category
B
Overvoltage category
III
Pollution degree
3
Direction of incoming supply
As required
Technical data - mechanical
Device construction
Built-in device fixed built-in technique
Mounting Method
Fixed
Degree of protection
IP41 with door sealing frame
IP55 with protective cover
IP20
IP55 with protective cover
IP20
Protection
Professional protection
Number of auxiliary contacts (change-over contacts)
2
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Back side
Weight of fixed mounting version (3-pole)
43 kg
Weight of fixed mounting version (4-pole)
56 kg
Actuator type
Push button
Terminal capacity (copper bar)
80 mm x 10 mm (3x) for fixed mounting (black)
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
3200 A
Equipment heat dissipation, current-dependent
385 W
Heat dissipation at rated current with fixed mounting
385 W
Ambient operating temperature details
Device with LCD-display -20 °C - 70 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Motor drive optional
Fitted with:
Switched-off indicator
Special features
IZMX-DTP-PTM external voltage measuring module requiredsuitable for zone selectivitysuitable for communicationwith integrated system monitorwith integrated test possibilitywith graphic LCD color displayoptionally fittable by user with comprehensive accessoriesThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Suitable for
Main conducting paths with 57.6 kA in IT electrical power networks up to U = 440 V
Used with
Air circuit breakers/switch-disconnector
Open circuit breaker
Open circuit breaker
| Caratteristica | Valore |
|---|---|
| corrente permanente nominale Iu (EF001389) | 3200 A |
| corrente limite nominale di disinserzione al corto circuito a 400 V, 50 Hz (EF007048) | 66 kA |
| campo di corrente dell'interruttore di sovraccarico (EF002336) | 1600 A |
| intervallo di regolazione dell'attivatore di corto circuito con ritardo breve (EF007129) | 6400 A |
| intervallo di regolazione dell'attivatore di corto circuito non ritardato (EF007131) | 6400 A |
| tipologia costruttiva dell'apparecchio (EF008240) | apparecchio da incasso, tecnica a installazione fissa |
| protezione dalle dispersioni a terra integrata (EF007296) | No |
| tipo di collegamento circuito elettrico principale (EF006819) | collegamento su guida |
| adatto per montaggio su guida a cappello (EF007250) | No |
| montaggio su guida a DIN opzionale (EF008904) | No |
| numero di contatti ausiliari, contatti di riposo (EF001377) | 0 |
| numero di contatti ausiliari, contatti di chiusura (EF001376) | 0 |
| numero di contatti ausiliari, invertitori (EF003531) | 2 |
| con segnalatore di intervento presente (EF007006) | Sì |
| con sganciatore di minima tensione integrato (EF001390) | No |
| numero di poli (EF001391) | 4 |
| posizione del collegamento per circuito elettrico principale (EF006671) | dietro |
| tipo di elemento di azionamento (EF006976) | contatto a pressione |
| apparecchio completo con unità di sicurezza (EF008906) | No |
| azionamento a motore integrato (EF006697) | No |
| azionamento a motore opzionale (EF007386) | Sì |
| grado di protezione (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Titolo: | Dimensione: | Tipo: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| IZMX40B4-P32F 149883 149883_DE.pdf | 265 Kbytes |
|
