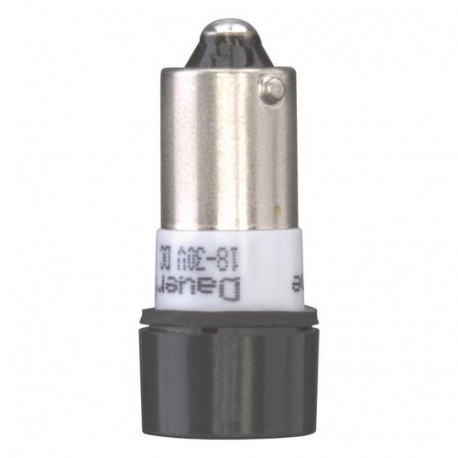

M22-XAM 229025 Y7-229025 EATON ELECTRIC Ronzatore BA9s, 18-30V, suono continuo Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

M22-XAM 229025 Y7-229025 EATON ELECTRIC Ronzatore BA9s, 18-30V, suono continuo

M22-XAM

229025

Y7-229025

EATON-MOELLER

Ronzatore BA9s, 18-30V, suono continuo

BA9s 18-30 V DC Cicalino a tono continuo

Eaton Moeller® series M22 Buzzer BA9s.18-30V DC, continuous tone

Cicalino BA9s, 18-30V, tono continuo, per dispositivo acustico M22-AMC

Maggiori dettagli


Apparecchi elettrici a bassa tensione > segnalatore acustico

Ausili di controllo e segnalazione

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $20.08
Prezzo unitario: $20.08
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series M22 Accessory Acoustic indicator
Catalog Number
229025
EAN
4015082290252
Product Length/Depth
30 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
0.014 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 14-05
UL 508
IEC 60947-5
IEC/EN 60947-5
CSA Class No.: 3211-03
CSA File No.: 012528
UL File No.: E29184
CSA
CE
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
Catalog Notes
Model Code
M22-XAM

General

Degree of protection
NEMA Other
Product Category
Accessories
Voltage type
DC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Electrical rating

Rated operational voltage (Ue) at AC - max
0 V
Rated operational voltage (Ue) at AC - min
0 V
Rated operational voltage (Ue) at DC - max
30 V
Rated operational voltage (Ue) at DC - min
18 V

Communication

Connection to SmartWire-DT
No

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.4 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 229025 Apparecchi elettrici a bassa tensione (EC001026)
Caratteristica Valore
tipo di segnale acustico (EF002751) tono continuo
volume (EF000144) 83 dB
tensione d'esercizio AC 50 Hz (EF008206) 0 V
tensione d'esercizio AC 60 Hz (EF008207) 0 V
tensione d'esercizio DC (EF008208) 18 V
tipo di tensione (EF000187) DC
indice di protezione (NEMA) (EF011959) altro

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-XAM Y7-229025 229025 EN_289241.pdf 3 Mbytes M22-XAM Y7-229025 229025 EN_289241.pdf
