> EATON - MOELLER>Convertitori di frequenza Power XL>DX-BR047-5K1 171925 ELECTRIC Reostato di frenatura, IP20, 47 Ω, 5.1 kW, utilizzo con: DC1, DA1, DL1, D..
Prodotto precedente Prodotto successivo

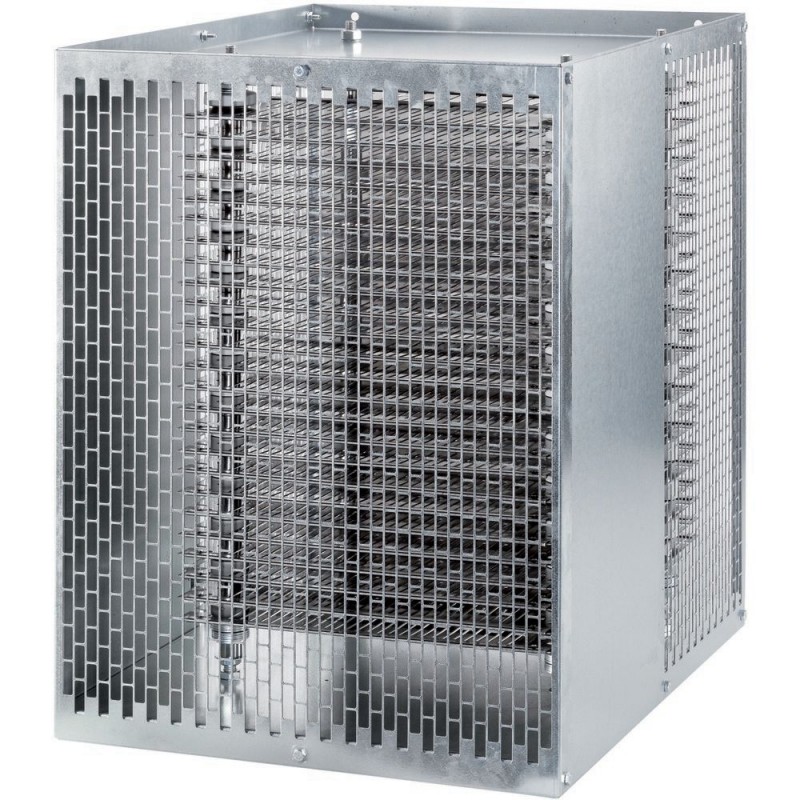

DX-BR047-5K1 171925 EATON ELECTRIC Reostato di frenatura, IP20, 47 Ω, 5.1 kW, utilizzo con: DC1, DA1, DL1, D.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DX-BR047-5K1 171925 EATON ELECTRIC Reostato di frenatura, IP20, 47 Ω, 5.1 kW, utilizzo con: DC1, DA1, DL1, D..

DX-BR047-5K1

171925

EATON-MOELLER

Reostato di frenatura, IP20, 47 Ω, 5.1 kW, utilizzo con: DC1, DA1, DL1, DG1, SVX, SPX

Resistenza di frenatura per convertitore di frequenza 47 Ohm 5.100 W

Eaton DX Braking resistance, IP20, 47 Ω, 5.1 kW, For use with: DC1, DA1, DL1, DG1, SVX, SPX

Maggiori dettagli


apparecchi elettrici a bassa tensione > accessori per controllo di frequenza

Convertitori di frequenza Power XL

* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $889.64
Prezzo unitario: $889.64

*Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Dettagli

▲


General specifications

Product Name
Eaton DX Braking resistor
Catalog Number
171925
EAN
4015081684236
Product Length/Depth
310 mm
Product Height
450 mm
Product Width
400 mm
Product Weight
15.5 kg
Certifications
UL
UL Category Control No.: NMTR2, NMTR8
UL report applies to both US and Canada
UL File No.: E300273
Certified by UL for use in Canada
C22.2
UL508
Model Code
DX-BR047-5K1

Specifiche del prodotto

Accessories
Braking resistances
Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DG1
DA1
DC1
DM1
Accessory/spare part type
Breaking resistance
Braking resistance
47 Ω
Continuous braking rating
5.1 kW
Degree of protection
IP20
IP00
Voltage rating - max
1000 V
Suitable for
Branch circuits, (UL/CSA)

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 32 Mbytes
DX-BR047-5K1 DX-BR047-5K1 171925 FR_171922.pdf 2 Mbytes DX-BR047-5K1 DX-BR047-5K1 171925 FR_171922.pdf
