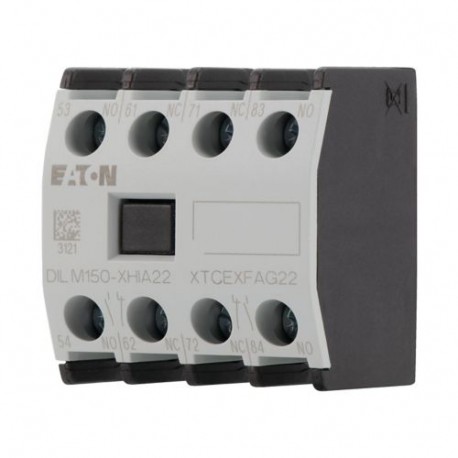

DILM150-XHIA22 283464 Y7-283464 EATON ELECTRIC Modulo contatti ausiliari, 2NA+2NC, in custodia, collegamento.. Visualizza ingrandito
Le immagini sono solo per fini illustrativi. Si prega di fare riferimento alla scheda tecnica p...

DILM150-XHIA22 283464 Y7-283464 EATON ELECTRIC Modulo contatti ausiliari, 2NA+2NC, in custodia, collegamento..

DILM150-XHIA22

283464

Y7-283464

EATON-MOELLER

5

Modulo contatti ausiliari, 2NA+2NC, in custodia, collegamento a vite

Blocco contatti ausiliari 2 NO + 2 NC Collegamento per montaggio anteriore a

Eaton Moeller® series DILM Auxiliary contact module, 4 pole, Ith= 16 A, 2 N/O, 2 NC, Front fixing, Screw terminals, DILM40 - DILM170, XHIA

Modulo contatti ausiliari, con contatti contrapposti interlacciati, Funzione: per applicazioni standard, 4 poli, Tecnologia di connessione: Morsetti a vite, Corrente nominale di esercizio AC-15 220 V 230 V 240 V: Ie= 6 A, Corrente nominale di esercizio AC-15 380 V 400 V 415 V: Ie= 4 A, Contatti NA = Normalmente aperto: 2 NA, Contatti N/A = Normalmente chiuso: 2 NC, Tipo di montaggio: Montaggio frontale, Utilizzabile con: DILM40..., DILM50..., DILM65..., DILM72..., DILM80..., DILM95..., DILM115..., DILM150..., DILM170..., DILMP63..., DILMP80..., DILMP125..., DILMP160..., DILMP200..., DILMF40..., DILMF50..., DILMF65..., DILMF80..., DILMF95..., DILMF115..., DILMF150..., Tipo: Contatto ausiliario a montaggio frontale, Istruzioni: Contatti opposti interbloccati secondo IEC/EN 60947-5-1 Appendice L, all'interno del modulo di contatto ausiliari, contatti ausiliari utilizzati come contatti a specchio secondo IEC/EN 60947-4-1 Appendice F (non N/C aperto in ritardo)

Maggiori dettagli


Apparecchi elettrici a bassa tensione > Modulo contatti ausiliario

Contattori fino a 170A

Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER

Prezzo totale: $108.78
Prezzo unitario: $21.76
Questo prezzo è per unità e mostra il valore netto ( escluse le imposte indirette se applicabile ).

Se il nostro prezzo non è il migliore, chiedici un preventivo Richiedi un preventivo

Related products

▲

Comprati di solito insieme

▲

Più venduti

▲

Dettagli

▲


General specifications

Product Name
Eaton Moeller® series DILM auxiliary contact module
Catalog Number
283464
EAN
4015082834647
Product Length/Depth
39 mm
Product Height
46 mm
Product Width
45 mm
Product Weight
0.055 kg
Certifications
CSA-C22.2 No. 14-05
CE
IEC/EN 60947-4-1
UL File No.: E29184
UL 508
CSA
UL Category Control No.: NKCR
CSA Class No.: 3211-03
VDE 0660
IEC/EN 60947
UL
CSA File No.: 012528
Model Code
DILM150-XHIA22

Caratteristiche e Funzioni

Features
Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Functions
For standard applications
Fitted with:
Interlocked opposing contacts
Number of poles
Four-pole
Electric connection type
Screw connection

Informazioni generali

Lifespan, electrical
1,300,000 Operations (at 230 V, AC-15, 3 A)
Model
Top mounting
Mounting method
Front fastening
Overvoltage category
III
Pollution degree
3
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Type
Front mounting auxiliary contact

Condizioni ambientali, dati meccanici

Shock resistance
5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Condizioni ambientali e climatiche

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Sezioni di collegamento

Terminal capacity (flexible with ferrule)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
Terminal capacity (solid)
1 x (0.75 - 2.5) mm²
2 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
18 - 14
Screwdriver size
2, Terminal screw, Pozidriv screwdriver
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
Tightening torque
1.2 Nm, Screw terminals

Dati elettrici

Rated operational current (Ie)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series)
1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)
10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Rated operational current (Ie) at AC-15, 500 V
1.5 A
Rated insulation voltage (Ui)
690 V
Rated operational voltage (Ue) at AC - max
500 V

Resistenza al corto circuito

Short-circuit protection rating
Max. 16 A gG/gL, Fuse, Without welding, Auxiliary contacts
Short-circuit protection rating without welding
16 A gG/gL, 500 V, Max. Fuse, Contacts

Corrente convenzionale termica

Conventional thermal current ith at 60°C (3-pole, open)
16 A

Potere d'inserzione

Switching capacity (auxiliary contacts, general use)
1 A, 250 V DC, (UL/CSA)
15 A, 600 V AC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
P300, DC operated (UL/CSA)
A600, AC operated (UL/CSA)

Comunicazione

Connection
Screw terminals

Contatti

Control circuit reliability
λ < 5 x 1/10⁷ (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
2

Sicurezza

Safe isolation
440 V AC, Between coil and auxiliary contacts, According to EN 61140
440 V AC, Between auxiliary contacts, According to EN 61140

Verifica di progetto

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.23 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 283464 Apparecchi elettrici a bassa tensione (EC000041)
Caratteristica Valore
numero di contatti invertitori (EF008257) 0
numero di contatti di chiusura (EF008256) 2
numero di contatti di riposo (EF008255) 2
numero di commutatori di segnale (EF007613) 0
corrente d'esercizio nominale Ie per AC-15, 230 V (EF001385) 6 A
tipo di collegamento elettrico (EF003961) raccordo a vite
versione (EF000010) attaccabile
modo di montaggio (EF000003) fissaggio frontale
portalampada (EF000048) senza

Datasheet - PDF

▲
Titolo: Dimensione: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM150-XHIA22 Y7-283464 283464 ES_277945.pdf 1 Mbytes DILM150-XHIA22 Y7-283464 283464 ES_277945.pdf
