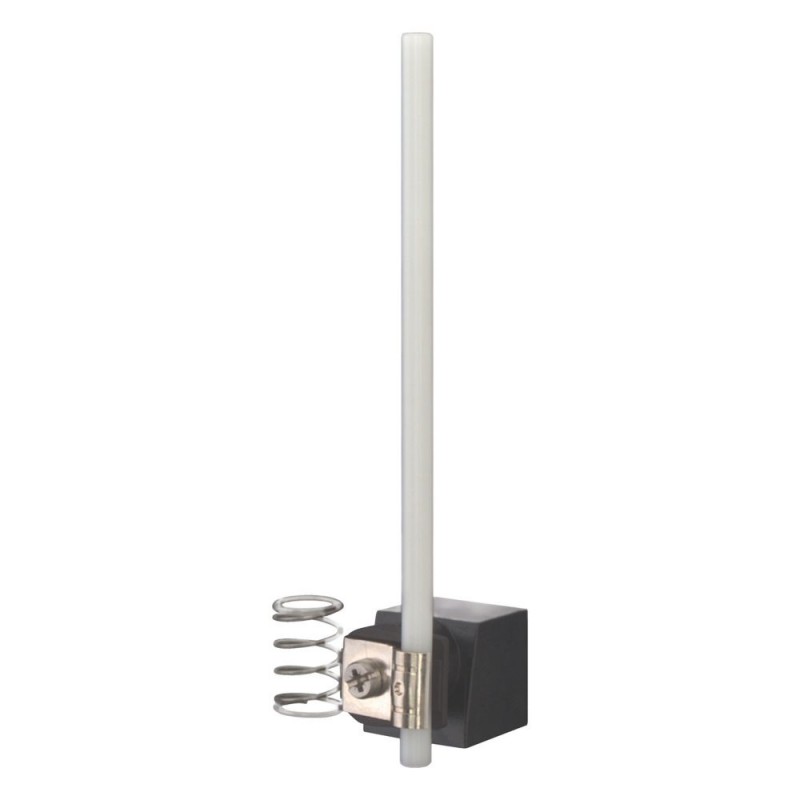

LSM-XRR 266161 EATON ELECTRIC Leva ad asta, metallo, +asta in materiale isolante
LSM-XRR
266161
EATON-MOELLER
4
Leva ad asta, metallo, +asta in materiale isolante
Testa di azionamento; Asta di trasmissione; Metallico; Bacchetta
Eaton Moeller® series LSM Actuating rod, metal, +plastic rod
sensori > Testa di azionamento per interruttori di posizione / interruttori a cerniera
Interruttori di posizione
* Prodotto nuovo nel suo imballaggio d'origine con tutte le garanzie e certificazioni de EATON-MOELLER
Più venduti
▲Dettagli
▲General specifications
Product Name
Eaton Moeller® series LSM Accessory Actuating rod
Catalog Number
266161
EAN
4015082661618
Product Length/Depth
25 mm
Product Height
140 mm
Product Width
46 mm
Product Weight
0.058 kg
Compliances
CE Marked
Certifications
IEC 60947-5
CSA Std. C22.2 No. 14
EN 60947-5
UL 508
CSA-C22.2 No. 14
IEC/EN 60947-5
CSA
CSA Class No.: 3211-03
CSA File No.: 012528
UL Category Control No.: NKCR
UL File No.: E29184
CE
UL
CSA Std. C22.2 No. 14
EN 60947-5
UL 508
CSA-C22.2 No. 14
IEC/EN 60947-5
CSA
CSA Class No.: 3211-03
CSA File No.: 012528
UL Category Control No.: NKCR
UL File No.: E29184
CE
UL
Model Code
LSM-XRR
Specifiche del prodotto
Type
Operating heads
Features
The operating head can be rotated 90° to enable adaptation to the specified approach direction
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Actuator type
Actuating rod
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Actuating rod
Material
Metal insulated plastic bar
Insulated material (Bar)
Insulated material (Bar)
