TC4MHR048-E
681090
TC4MHR048E
OMRON
1
Haute résolution de la lentille télécentrique pour 1.2", les détecteurs de grossissement 0.369 x, mont M42X1 FD=16
Haute résolution de la lentille télécentrique pour 1.2", les détecteurs de grossissement 0.369 x, M42x1 de montage, Bride distance de 16 mm
Vision Systems > Spéciaux Vision
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par OMRON
Merci de vous intéresser à nos produits, nous espérons que le délai indiqué soit de votre convenance.
Pendant le traitement de la commande, vous pouvez sélectionner le type d'envoi qui vous convient. Aérien Express 24Hrs, Terrestres Standard 48/72Hres, etc.

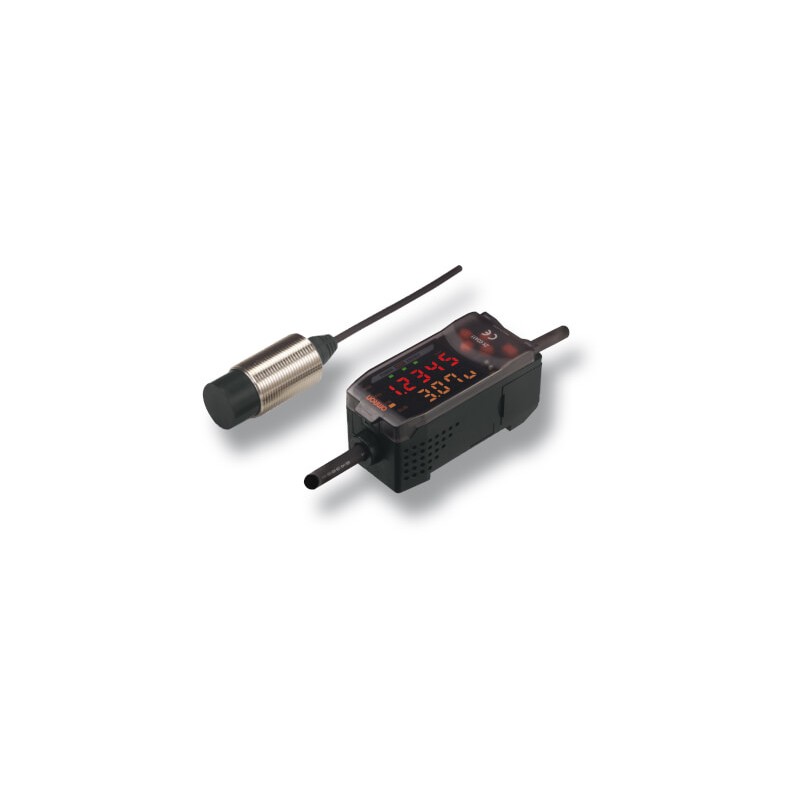

ZX-E est la meilleure solution pour une mesure précise des objets métalliques. Il est fortement recommandé dans les milieux difficiles tels que l'automobile et les machines de traitement des métaux.
Shape | Dimensions | Sensing distance | Resolution | Order code |
---|---|---|---|---|
Cylindrical | 3 dia. × 18 mm | 0.5 mm | 1 μm | ZX-EDR5T |
5.4 dia. × 18 mm | 1 mm | ZX-ED01T | ||
8 dia. × 22 mm | 2 mm | ZX-ED02T | ||
Screw-shaped | M10×22 mm | 2 mm | ZX-EM02T | |
M18×46.3 mm | 7 mm | ZX-EM07MT | ||
Flat | 30×14×4.8 mm | 4 mm | ZX-EV04T, | |
Heat-resistant, cylindrical | M12×22 mm | 2 mm | ZX-EM02HT |
Power supply | Output type | Order code |
---|---|---|
DC | NPN | ZX-EDA11 |
PNP | ZX-EDA41 |
Note:Compatible connection with the sensor head.
Model | |
---|---|
Calculating unit | ZX-CAL2 |
Remarks | Model |
---|---|
Attached to each sensor head | ZX-XBE1 |
For DIN track mounting | ZX-XBE2 |
Name | Model |
---|---|
ZX-series communications interface unit | ZX-SF11 |
ZX-series communications interface unit + setup software (CD-ROM) | ZX-SFW11EV3 |
ZX-series sensor setup and logging software (CD-ROM) | ZX-SW11EV3 |
Cable length | Model |
---|---|
1 m | ZX-XC1A |
4 m | ZX-XC4A |
8 m | ZX-XC8A |
*Robot cable models are also available. The model numbers are ZX-XC_R.
Item | ZX-EDR5T | ZX-ED01T | ZX-ED02T/EM02T | ZX-EM07MT | ZX-EV04T | ZX-EM02HT | ||
---|---|---|---|---|---|---|---|---|
Measurement range | 0 to 0.5 mm | 0 to 1 mm | 0 to 2 mm | 0 to 7 mm | 0 to 4 mm | 0 to 2 mm | ||
Sensing object | Magnetic metals | |||||||
Standard reference object | 18 × 18 × 3 mm | 30 × 30 × 3 mm | 60 × 60 × 3 mm | 45 × 45 × 3 mm | ||||
Material: Ferrous (S50C) | ||||||||
Resolution | 1 µm | |||||||
Linearity | ±0.5% F.S. | ±1% F.S. | ||||||
Linear output range | Same as measurement range. | |||||||
Temperature characteristic(including amplifier unit) | 0.15% F.S./°C | 0.07% F.S./°C | 0.1% F.S./°C | |||||
Ambient temperature | Operating | 0 to 50°C (with no icing or condensation) | -10 to 60°C (with no icing or condensation) | -10 to 200°C | ||||
Storage | -20 to 70°C (with no icing or condensation) | -20 to 200°C | ||||||
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||||||
Insulation resistance | 50 MΩ min. (at 500 DC) | |||||||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between charged parts and case | |||||||
Vibration resistance (destruction) | 10 to 55 Hz with 1.5-mm double amplitude for 2 h each in X, Y, and Z directions | |||||||
Shock resistance (destruction) | 500 m/s2, 3 times each in X, Y, and Z directions | |||||||
Degree of protection (sensor head) | IEC60529, IP65 | IEC60529, IP67 | IEC60529, IP60 | |||||
Connection method | Connector relay (standard cable length: 2 m) | |||||||
Weight (packed state) | Approx. 120 g | Approx. 140 g | Approx. 160 g | Approx. 130 g | Approx. 160 g | |||
Materials | Sensor head | Case | Brass | Stainless steel | Brass | Zinc (nickel-plated) | Brass | |
Sensing surface | Heat-resistant ABS | PEEK | ||||||
Preamplifier | PES | |||||||
Accessories | Amplifier mounting brackets (ZX-XBE1), instruction manual |
Item | ZX-EDA11 | ZX-EDA41 |
---|---|---|
Measurement period | 150 µs | |
Possible average count settings | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096 | |
Linear output | Current output: 4 to 20 mA/F.S., max. load resistance: 300 Ω Voltage output:±4 V (±5 V, 1 to 5 V | |
Judgement outputs | NPN open-collector outputs, 30 VDC, 50 mA max. | PNP open-collector outputs, 30 VDC, 50 mA max. |
Zero reset input, timing input, reset input, judgement output hold input | ON:Short-circuited with 0-V terminal or 1.5 V or less OFF:Open (leakage current: 0.1 mA max.) | ON:Supply voltage short-circuited or supply voltage within 1.5 V OFF:Open (leakage current: 0.1 mA max.) |
Function |
| |
Indications | Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red), | |
Voltage influence | 0.5% F.S. of linear output value at ±20% of power supply voltage | |
Power supply voltage | 12 to 24 VDC±10%, ripple (p-p): 10% max. | |
Current consumption | 140 mA max. with power supply voltage of 24 VDC (with sensor connected) | |
Ambient temperature | Operating and storage: 0 to 50°C (with no icing or condensation) | |
Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |
Insulation resistance | 20 MΩ min. (at 500 DC) | |
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | |
Vibration resistance (destruction) | 10 to 150 Hz with 0.7-mm double amplitude for 80 min each in X, Y, and Z directions | |
Shock resistance (destruction) | 300 m/s2, 3 times each in 6 directions (up, down, left, right, forward, backward) | |
Connection method | Prewired (standard cable length: 2 m) | |
Weight (packed state) | Approx. 350 g | |
Materials | Case: PBT (polybutylene terephthalate), cover: Polycarbonate | |
Accessories | Instruction manual |
1.For an average count of 4,096.
2.Models with protective spiral tubes are also available. Add a suffix of “-S” to the above model numbers when ordering. (Example: ZX-ED01T-S)
3.Be sure to use ZX-EDA amplifier unit version 1,200 or later with the ZX-EV04.
4.Be sure to use ZX-EDA amplifier unit version 1,300 or later with the ZX-EM02H.
5.The ZX-SFW11EV3 SmartMonitor can be used only to set functions and monitor waveforms.
6.Accuracy: The resolution is the deviation (±3σ) in the linear output when connected to the ZX-EDA amplifier unit. The above values indicate the deviations observed 30 minutes after the power is turned ON.
(The resolution is measured with Omron's standard reference object at ½ of the measurement range with the ZX-EDA set for the maximum average count of 4,096 per period.)
The resolution is given at the repeat accuracy for a stationary workpiece, and is not an indication of the distance accuracy. The resolution may be adversely affected under strong electromagnetic fields.
7.Linearity: The linearity is given as the error in an ideal straight line displacement output when measuring the standard reference object. The linearity and measurement values vary with the object being measured.
8.The value given is for an ambient temperature of 25°C.
9.Temperature characteristic: The temperature characteristic is measured with Omron's standard reference object at ½ of the measurement range.
10.The ambient temperature given is only for the sensor head. It is -10 to 60°C for the preamp.
11.Do not use in moist environments because the case is not waterproof.
12.The response speed of the linear output is calculated as the measurement period x (average count setting + 1) (with fixed sensitivity).
The response speed of the judgement outputs is calculated as the measurement period x (average count setting + 1) (with fixed sensitivity).
13.The output can be switched between a current output and voltage output using a switch on the bottom of the amplifier unit.
14.Setting is possible via the monitor focus function.
15.A calculating unit (ZX-CAL or ZX-CAL2) is required.
