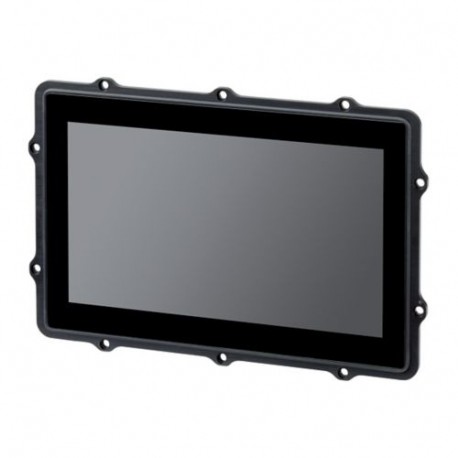

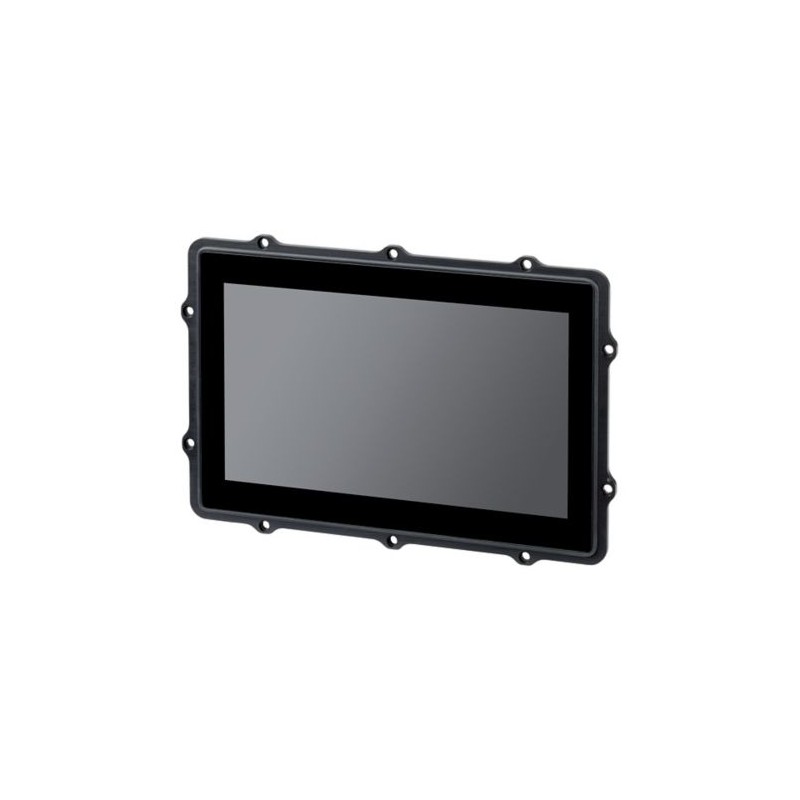

XV-313-10-CE0-A00-1C 191002 EATON ELECTRIC Terminal-opérateur avec API pour montage arrière servant de coord..
XV-313-10-CE0-A00-1C
191002
Y7-191002
EATON-MOELLER
Terminal-opérateur avec API pour montage arrière servant de coordinateur SWD, 24VDC, afficheur PCT 10,1", 1024x600 pixels, 2xEthernet, 1xRS232, 1xRS485, 1xCAN, 1xSWD, 1xProfibus, 1xSD
XV-313-10-CE0-A00-1C
Eaton XV-313 User interface with PLC for rear mounting as an SWD coordinator,24 VDC,10.1-inch PCT displ.,1024x600 pixels,1xEthernet,1xRS232,1xRS485,1xCAN,1xSWD,1xSD
Commande industrielle API > Panneau à écran graphique
Terminaux tactiles IHM
* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton XV-313 Touch panel
Catalog Number
191002
Model Code
XV-313-10-CE0-A00-1C
EAN
7640130099067
Product Length/Depth
282 mm
Product Height
57 mm
Product Width
190 mm
Product Weight
1.21 kg
Certifications
CUL
EMC according to 2014/30/EU
UL 61010-2-201
Certified by UL for use in Canada
CE
DNV GL
UL
IEC/EN 61131-2
EN 50178
UL File No.: E205091
EMC according to 2014/30/EU
UL 61010-2-201
Certified by UL for use in Canada
CE
DNV GL
UL
IEC/EN 61131-2
EN 50178
UL File No.: E205091
Features & Functions
Enclosure material
Insulated material
Features
Ethernet interface
Target and web visualization
USB device
Slot for SD card
Fanless CPU and system cooling, natural convection-based passive cooling
Operating System Windows Embedded Compact 7 pro
Integrated Runtime visualization software license
RS232
USB Host
Portrait format
CAN
RS485
Overload proof
Target and web visualization
USB device
Slot for SD card
Fanless CPU and system cooling, natural convection-based passive cooling
Operating System Windows Embedded Compact 7 pro
Integrated Runtime visualization software license
RS232
USB Host
Portrait format
CAN
RS485
Overload proof
Fitted with:
1 x RS485 (built-in interface)
Message system (incl. buffer and confirmation)
SW interfaces
1 x USB device (built-in interface)
Color display
1 x CANopen®/easyNet (built-in interfaces)
Recipes
Printer output
1 x USB host 2.0 (built-in interface)
1 x SmartWire-DT (built-in interface)
2 x Ethernet 10/100 Mbps (built-in interface)
1 x RS232 (built-in interface)
Message indication
Message system (incl. buffer and confirmation)
SW interfaces
1 x USB device (built-in interface)
Color display
1 x CANopen®/easyNet (built-in interfaces)
Recipes
Printer output
1 x USB host 2.0 (built-in interface)
1 x SmartWire-DT (built-in interface)
2 x Ethernet 10/100 Mbps (built-in interface)
1 x RS232 (built-in interface)
Message indication
Functions
SmartWire-DT coordination
Additional software components, loadable
Process value representation (output) possible
Process default value (input) possible
Additional software components, loadable
Process value representation (output) possible
Process default value (input) possible
General
Battery runtime
Back-up of real-time clock: BR 2330, non-replaceable (soldered)
Degree of protection
NEMA 12
NEMA 4X
IP20, rear (according to EN 60529-1)
NEMA 4X
IP20, rear (according to EN 60529-1)
Degree of protection (front side)
IP65
NEMA 12
NEMA 12
Fuse type
Built-in fuse (not accessible)
Lifespan
50,000 h (Service life of back-lighting)
Model
Plastic enclosure and glass panel in aluminum mounting frame
Mounting method
Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Rear mounting
Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Rear mounting
Potential isolation
Supply voltage UAUX: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Power supply: no
Between UPow and 15 V SmartWire-DT supply voltage: no
Protection against polarity reversal
Yes
Yes, for supply voltage (Siemens MPI optional)
Yes, for supply voltage (Siemens MPI optional)
Product category
HMI-PLC (integrated SPS function)
Repetition rate
1 s
Residual ripple
≤ 5 % (input voltage)
RoHs conformity
Yes
Short-circuit protection
No, external fuse FAZ Z3, Supply voltage UAux
Yes, Short-circuit rating, SmartWire-DT supply voltage
Yes, Short-circuit rating, SmartWire-DT supply voltage
Software
XSOFT-CODESYS-2, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
XSOFT-CODESYS, Visualization software, Engineering
GALILEO, Visualization software, Engineering
XSOFT-CODESYS-3, PLC-Programming software, Engineering
Terminal capacity
0.25 - 1.5 mm², flexible with ferrule
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
24 - 16 AWG, solid or stranded
0.2 - 1.5 mm², solid
Type
Control panel with PLC as a SmartWire-DT coordinator and 2nd Ethernet port
Voltage type
DC
Ambient conditions, mechanical
Shock resistance
15 g, 11 ms, Mechanical
Vibration resistance
9 - 60 Hz, ± 0.15 mm
60 - 150 Hz, ± 2 g
5 - 9 Hz, ± 3.5 mm
60 - 150 Hz, ± 2 g
5 - 9 Hz, ± 3.5 mm
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Ambient operating temperature - min
0 °C
Ambient operating temperature - max
50 °C
Ambient storage temperature - min
-20 °C
Ambient storage temperature - max
60 °C
Climatic proofing
Cold to EN 60068-2-1
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Damp heat, constant, to IEC 60068-2-3
Environmental conditions
Condensation: Non-condensing
Operating temperature - min
0 °C
Operating temperature - max
50 °C
Relative humidity
10 - 95 % (non-condensing)
Electro magnetic compatibility
Emitted interference
According to IEC/EN 61000-6-4
Interference immunity
According to EN 61000-6-2
Voltage dips
5 ms from undervoltage (19.2 V DC)
≤ 10 ms, Bridging voltage dips
≤ 10 ms from rated voltage (24 V DC)
≤ 10 ms, Bridging voltage dips
≤ 10 ms from rated voltage (24 V DC)
Electrical rating
Inrush current
12.5 A (for 6 ms)
Permissible voltage
19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %)
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %)
35 V DC (for a duration of < 100 ms)
18.0 - 31.2 V DC, absolute with ripple
Power consumption
Max. 18 W
18 W typ.
15.5 W
18 W typ.
15.5 W
Rated control supply voltage
24 V DC (UPOW, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
24 V DC (UAUX, -15 %/+20 %)
Rated operational current (Ie)
0.7 A
Rated operational voltage
14.5 V (± 3 % - SmartWire-DT)
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
24 V DC (power-supply - safety extra low voltage)
Typically UAUX -0.2 V (for 24 V DC slaves)
Supply current
0.7 A, Imax, SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
3 A, Imax, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
If contactors with a total power consumption > 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used, Supply voltage UAux
3 A, Imax, Supply voltage UAux
If SmartWire-DT modules with a total power consumption > 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used; SmartWire-DT supply
Supply voltage at AC, 50 Hz - min
0 VAC
Supply voltage at AC, 50 Hz - max
0 VAC
Supply voltage at DC - min
19.2 VDC
Supply voltage at DC - max
30 VDC
Communication
Addressing
Address set automatically
Communication interface
SmartWire-DT master
Connection
SmartWire-DT blade terminal SWD4-8MF2
Connection to SmartWire-DT
Yes
Connection type
SWD: Plug, 8-pole
Push in terminals, Supply voltage
Push in terminals, Supply voltage
Data transfer rate
250 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
125 kBit/s, SmartWire-DT
Interfaces
USB 2.0 device (not galvanically isolated)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
10/100 Mbps Ethernet connection
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC)
USB 2.0 host (not galvanically isolated)
CAN (not galvanically isolated, 9-pin SUB-D plug, UNC)
10/100 Mbps Ethernet connection
RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC)
LED indicator
Status indication of Supply voltage: LED
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Status indication of SmartWire-DT network: Configurable green or red LED
Status indication of SmartWire-DT master: Green and red LEDs
Number of slots
1 (for SD-Card)
Number of SmartWire-DT slaves
99
Protocol
CAN
MODBUS
EtherNet/IP
TCP/IP
EtherCAT
MODBUS
EtherNet/IP
TCP/IP
EtherCAT
Station
SmartWire-DT master, SmartWire-DT network
Display
Display contrast ratio
500:1
Display lighting
LED
Dimmable via software
Dimmable via software
Display size
222.72 x 125.28 mm
16:9
16:9
Display type
Anti-glare tempered glass without bezel
TFT
Color display, TFT, anti-glare
TFT
Color display, TFT, anti-glare
Luminance intensity
400 cd/m²
Number of colors of the display
16777216
Resolution
Screen size (diagonal)
7 in
Touch technology
Projected Capacitive Touch (PCT)
Capacitive multitouch
Multi-touch touch panel touch sensor
Capacitive multitouch
Multi-touch touch panel touch sensor
System
Backup time
10 years, typ. (time at zero voltage)
Memory
Flash: 1 GByte SLC
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
SD card, Type: SDSC, SDHC (external memory)
NVRAM: 128kByte Retain
DRAM: 512 MByte RAM
SD card, Type: SDSC, SDHC (external memory)
Memory capacity
512,000 kByte
Operating system
Windows Embedded Compact 7 Pro
Processor
ARM Cortex-A9 800 MHz
Design verification
Equipment heat dissipation, current-dependent Pvid
18 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
18 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| XV-313-10-CE0-A00-1C XV-313-10-CE0-A00-1C 191002 ES_179671.pdf | 2 Mbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
