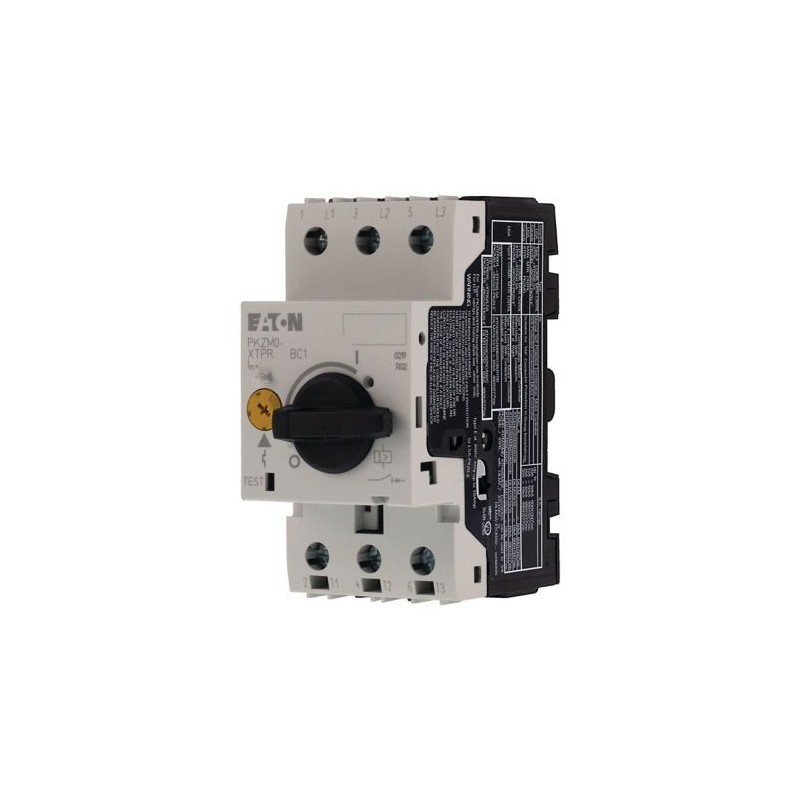

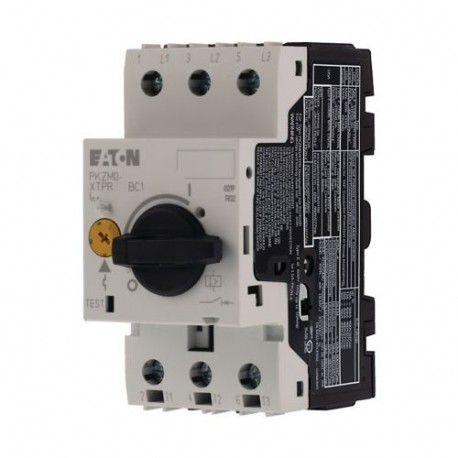

PKZM0-0,25-T 088908 Y7-88908 EATON ELECTRIC Disjoncteur de protection des transformateurs, 3p, Ir 0,16-0.25A..
PKZM0-0,25-T
088908
Y7-88908
EATON-MOELLER
Disjoncteur de protection des transformateurs, 3p, Ir=0,16-0.25A, borne à boulon
Interrupteur de protection de transformateur 3 pôles Ir = 0,16-0,25 A Connexion
Eaton Moeller® series PKZM0 Transformer-protective circuit-breaker, 3p, Ir=0.16-0.25A, screw connection
Disjoncteur à transformateur selon IEC/EN60947, 3 pôles PKZM0, avec surcharge réglable et déclenchement de court-circuit non retardé, sensible aux pannes de phase, raccord à vis et à encliquetage, avec borne à vis, dimension d’installation du capuchon 45mm, tension nominale de fonctionnement Ue 690V, degré de protection IP20, étanche aux doigts selon VDE 0106 T. 100, accessoires : contact auxiliaire, libération de tension
Appareillage industriel basse tension > Disjoncteur pour protection de transformateur, de générateur et d'installation
Interrupteurs de protection moteur
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series PKZM0 Transformer-protective circuit-breaker
Catalog Number
088908
Model Code
PKZM0-0,25-T
EAN
4015080889083
Product Length/Depth
76 mm
Product Height
93 mm
Product Width
45 mm
Product Weight
0.246 kg
Certifications
IEC/EN 60947
VDE 0660
VDE 0660
Features & Functions
Actuator type
Turn button
Features
Complete device with protection unit
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)
Fitted with:
Switched-off indicator
Functions
For the protection of transformers with a high inrush current
Transformer protection
Transformer protection
Number of poles
Three-pole
General
Lifespan, electrical
100,000 operations
Lifespan, mechanical
100,000 Operations
Mounting Method
DIN rail (top hat rail) mounting optional
Mounting position
Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.
Operating frequency
40 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
Transformer protective circuit breaker
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Suitable for
Also motors with efficiency class IE3
DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting
Temperature compensation
-5 - 40 °C to IEC/EN 60947, VDE 0660
≤ 0.25 %/K, residual error for T > 40°
-25 - 55 °C, Operating range
≤ 0.25 %/K, residual error for T > 40°
-25 - 55 °C, Operating range
Climatic environmental conditions
Altitude
Max. 2000 m
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity (flexible with ferrule)
1 x (1 - 6) mm², ferrule to DIN 46228
2 x (1 - 6) mm², ferrule to DIN 46228
2 x (1 - 6) mm², ferrule to DIN 46228
Terminal capacity (solid)
2 x (1 - 6) mm²
1 x (1 - 6) mm²
1 x (1 - 6) mm²
Terminal capacity (solid/stranded AWG)
18 - 10
Stripping length (main cable)
10 mm
Tightening torque
1 Nm, Screw terminals, Control circuit cables
1.7 Nm, Screw terminals, Main cable
1.7 Nm, Screw terminals, Main cable
Electrical rating
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Rated operational current (Ie)
0.25 A
Rated operational voltage (Ue) - min
690 V
Rated operational voltage (Ue) - max
690 V
Rated uninterrupted current (Iu)
0.25 A
Short-circuit rating
Short-circuit current
60 kA DC, up to 250 V DC, Main conducting paths
Short-circuit current rating (group protection)
50 kA, 600 V High Fault, Fuse, SCCR (UL/CSA) with 600 A, 600 V High Fault, Fuse, SCCR (UL/CSA)
50 kA, 600 V High Fault, CB, SCCR (UL/CSA) with 600 A, 600 V High Fault, CB, SCCR (UL/CSA)
50 kA, 600 V High Fault, CB, SCCR (UL/CSA) with 600 A, 600 V High Fault, CB, SCCR (UL/CSA)
Short-circuit release
± 20% tolerance, Trip blocks
Basic device, fixed 20 x Iu, Trip Blocks
4.25 A, Irm, Setting range max.
Basic device, fixed 20 x Iu, Trip Blocks
4.25 A, Irm, Setting range max.
Communication
Connection
Screw terminals
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Trip blocks
Overload release current setting - min
0.16 A
Overload release current setting - max
0.25 A
Design verification
Equipment heat dissipation, current-dependent Pvid
4.59 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.53 W
Rated operational current for specified heat dissipation (In)
0.25 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Courant permanent nominal Iu (EF001389) | 0.25 A |
| Tension assignée (EF003977) | 690 V |
| Courant de commutation de court-circuit limite nominal Icu à 400 V, 50 Hz (EF007048) | 150 kA |
| Réglage de courant du déclencheur de surcharge (EF002336) | 0.16 A |
| Plage de réglage du déclencheur de court-circuit retardé de courte durée (EF007129) | 0 A |
| Plage de réglage du déclencheur de court-circuit non retardé (EF007131) | 4.25 A |
| Puissance dissipée (EF005387) | 4.59 W |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Protection intégrée contre les mises à la terre accidentelles (EF007296) | Non |
| Type de raccordement du circuit principal (EF006819) | Borne à vis |
| Adapté à un montage de profilés chapeaux (EF007250) | Oui |
| Montage de profilés chapeaux en option (EF008904) | Oui |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 0 |
| Relais de signalisation de déclenchement disponible (EF007006) | Oui |
| Avec déclencheur à sous-tension intégré (EF001390) | Non |
| Nombre de pôles (EF001391) | 3 |
| Position du raccordement de circuit principal (EF006671) | Autre |
| Finition de l'élément d'actionnement (EF006976) | Type de dispositif d'actionnement |
| Appareil complet avec unité de protection (EF008906) | Oui |
| Commande motorisée intégrée (EF006697) | Non |
| Commande motorisée en option (EF007386) | Non |
| Classe de protection (IP) (EF005474) | IP20 |
