> EATON - MOELLER>Transformateurs >STZ1,6(*/*) 914773 Y7-914773 ELECTRIC Transformateur de commande, 1.6kVA, 1p, tension spéciale
ANUNCIAR
Produit précédent Produit suivant

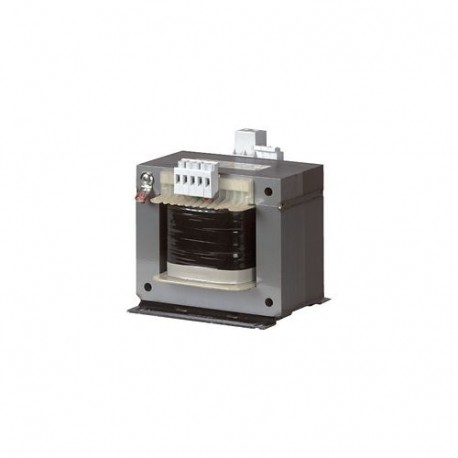

STZ1,6(*/*) 914773 Y7-914773 EATON ELECTRIC Transformateur de commande, 1.6kVA, 1p, tension spéciale Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

STZ1,6(*/*) 914773 Y7-914773 EATON ELECTRIC Transformateur de commande, 1.6kVA, 1p, tension spéciale

STZ1,6(*/*)

914773

Y7-914773

EATON-MOELLER

Transformateur de commande, 1.6kVA, 1p, tension spéciale

Transformateur de commande; 1.6.k VA; Monophasé; Tension personnalisable

Eaton Moeller® series STZ Control transformer, 1.6 kVA, Rated input voltage 50 – 950 ± 5 % V, Rated output voltage 12 – 1000 V

Plus de détails


Appareillage industriel basse tension > Transformateur de commande monophasé

Transformateurs

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $690.66
Prix unitaire: $690.66
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series STZ Control transformer
Catalog Number
914773
Model Code
STZ1,6(*/*)
Product Length/Depth
142 mm
Product Height
174 mm
Product Width
195 mm
Product Weight
17.4 kg
Certifications
UL 506
UL File No.: E167225
IEC/EN 61558-2-2/2-4/2-6
VDE 0570 Part 2‐6 (safety transformers)
CSA-C22.2 No. 66.2-06
UL Recognized
VDE 0113, VDE 0100 Part 410
IEC/EN 61558-2-2
UL5085-1
CE
UL Category Control No.: XPTQ2, XPTQ8
VDE 0570 Part 2-2
VDE 0570 Part 2-4 (isolating transformer)
CSA-C22.2 No. 66.1-06
UL report applies to both US and Canada
Certified by UL for use in Canada
IEC/EN 60204-1, ÖVE-EN 13
UL 5085-2
CSA-C22.2 No. 66
Catalog Notes
Electrical characteristics: all details for no-load loss, short-circuit loss (copper losses), short-circuit voltage and efficiency values relate to a temperature of 20 °C

Spécifications du produit

Type
Single-phase control, isolating and safety transformer
Features
Fully Vacuum-impregnated
Separate windings
Reinforced insulation
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Apparent power
1600 VA
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
No-load losses
21 W
Primary voltage 1 - max
950 V
Primary voltage 1 - min
50 V
Primary voltage 10 - max
0 V
Primary voltage 10 - min
0 V
Primary voltage 2 - max
950 V
Primary voltage 2 - min
50 V
Primary voltage 3 - max
950 V
Primary voltage 3 - min
50 V
Primary voltage 4 - max
950 V
Primary voltage 4 - min
50 V
Primary voltage 5 - max
950 V
Primary voltage 5 - min
50 V
Primary voltage 6 - max
950 V
Built as
Safety transformer
Isolating transformer
Conductor material
Copper
Degree of protection
IP00
Connection lug
Yes for < 63 A
Connection type
Terminations, < 63 A
Duty factor
100 %
Insulation material type (IEC 85)
B
Efficiency
96 %
Relative short-circuit voltage
2.4 %
Suitable for
Branch circuits, (UL/CSA)
Insulation class
B
Primary tapping
± 5 %
Primary voltage 6 - min
50 V
Primary voltage 7 - max
0 V
Primary voltage 7 - min
0 V
Primary voltage 8 - max
0 V
Primary voltage 8 - min
0 V
Primary voltage 9 - max
0 V
Primary voltage 9 - min
0 V
Rated frequency - max
60 Hz
Rated frequency - min
50 Hz
Rated operational current for specified heat dissipation (In)
0 A
Rated power
1.6 VA
Secondary voltage 1 - max
1000 V
Secondary voltage 1 - min
12 V
Secondary voltage 10 - max
0 V
Secondary voltage 10 - min
0 V
Secondary voltage 2 - max
1000 V
Secondary voltage 2 - min
12 V
Secondary voltage 3 - max
1000 V
Secondary voltage 3 - min
12 V
Secondary voltage 4 - max
1000 V
Product category
Single-phase control transformers ST
Secondary voltage 4 - min
12 V
Secondary voltage 5 - max
1000 V
Secondary voltage 5 - min
12 V
Secondary voltage 6 - max
1000 V
Secondary voltage 6 - min
12 V
Secondary voltage 7 - max
0 V
Secondary voltage 7 - min
0 V
Secondary voltage 8 - max
0 V
Secondary voltage 8 - min
0 V
Secondary voltage 9 - max
0 V
Secondary voltage 9 - min
0 V
Short-circuit losses
37 W
Short-time rating
5.5 kVA
Static heat dissipation, non-current-dependent Pvs
58 W
Voltage rating - max
600 V
Power consumption in standby mode
11 W

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON CONTROL TRANSFORMES EN.pdf 4 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
STZ1,6(*/*) Y7-914773 914773 FR_914773.pdf 117 Kbytes STZ1,6(*/*) Y7-914773 914773 FR_914773.pdf
