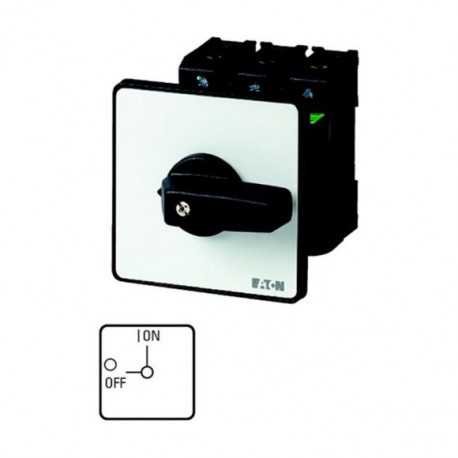

P3-63/Z 050591 Y7-50591 EATON ELECTRIC Interrupteurs Marche-Arrêt, tripolaire, 63 A, Encastrement / Montage ..
P3-63/Z
050591
Y7-50591
EATON-MOELLER
Interrupteurs Marche-Arrêt, tripolaire, 63 A, Encastrement / Montage encastré avec fixation arrière
Interrupteur de sectionneur ON-OFF; 3 pôles; 63 A; Montage en arrière-plan du panneau
Eaton Moeller® series P3 On-Off switch, P3, 63 A, rear mounting, 3 pole, with black thumb grip and front plate
Interrupteur On-Off, Gamme de produits : Interrupteur On-Off, Référence du groupe de pièces : P3, avec poignée noire et plaque frontale, Informations sur l’équipement fourni : Contact auxiliaire ou conducteur neutre monté par l’utilisateur., 3 pôles, Degré de protection : Avant IP65, Design : montage arrière, Puissance du moteur AC-23A, 50 - 60 Hz 400 V : P = 30 kW, Courant nominal sans interruption : Iu = 63 A, Normes : IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Interrupteur-sectionneur selon IEC/EN 60947-3
Appareillage industriel basse tension > Interrupteur-sectionneur
Sectionneurs et commutateurs à cames
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
050591
Model Code
P3-63/Z
EAN
4015080505914
Product Length/Depth
103 mm
Product Height
71.5 mm
Product Width
83 mm
Product Weight
0.36 kg
Certifications
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA Class No.: 3211-05
UL 60947-4-1
VDE 0660
CSA
UL File No.: E36332
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA Class No.: 3211-05
UL 60947-4-1
VDE 0660
CSA
UL File No.: E36332
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
Features & Functions
Fitted with:
Black thumb grip and front plate
Number of poles
Three-pole
General
Accessories
Auxiliary contact or neutral conductor fitted by user.
Degree of protection
NEMA 12
Degree of protection (front side)
IP65
Lifespan, mechanical
100,000 Operations
Mounting method
Rear mounting
Mounting position
As required
Operating frequency
1200 Operations/h
Overvoltage category
III
Pollution degree
3
Product Category
On-Off switch
Rated impulse withstand voltage (Uimp)
6000 V AC
Safe isolation
440 V AC, Between the contacts, According to EN 61140
Safety parameter (EN ISO 13849-1)
B10d values as per EN ISO 13849-1, table C.1
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Suitable for
Ground mounting
Intermediate mounting
Branch circuits, suitable as motor disconnect, (UL/CSA)
Intermediate mounting
Branch circuits, suitable as motor disconnect, (UL/CSA)
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity
14 - 2 AWG, solid or flexible with ferrule
2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228
1 x (2.5 - 35) mm², solid or stranded
2 x (2.5 - 10) mm², solid or stranded
1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228
2 x (1.5 - 6) mm², flexible with ferrules to DIN 46228
1 x (2.5 - 35) mm², solid or stranded
2 x (2.5 - 10) mm², solid or stranded
1 x (1.5 - 25) mm², flexible with ferrules to DIN 46228
Screw size
M5, Terminal screw
Tightening torque
26.5 lb-in, Screw terminals
3 Nm, Screw terminals
3 Nm, Screw terminals
Electrical rating
Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3)
640 A
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)
600 A
Rated breaking capacity at 500 V (cos phi to IEC 60947-3)
590 A
Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)
340 A
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
51 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
55 A
Rated operational current (Ie) at AC-3, 500 V
44 A
Rated operational current (Ie) at AC-3, 660 V, 690 V
22.1 A
Rated operational current (Ie) at AC-21, 440 V
63 A
Rated operational current (Ie) at AC-23A, 230 V
63 A
Rated operational current (Ie) at AC-23A, 400 V, 415 V
63 A
Rated operational current (Ie) at AC-23A, 500 V
63 A
Rated operational current (Ie) at AC-23A, 690 V
63 A
Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms
63 A
Rated operational current (Ie) at DC-23A, 24 V
50 A
Rated operational current (Ie) at DC-23A, 48 V
50 A
Rated operational current (Ie) at DC-23A, 60 V
50 A
Rated operational current (Ie) at DC-23A, 120 V
25 A
Rated operational power at AC-3, 380/400 V, 50 Hz
30 kW
Rated operational power at AC-3, 415 V, 50 Hz
30 kW
Rated operational power at AC-3, 690 V, 50 Hz
30 kW
Rated operational power at AC-23A, 220/230 V, 50 Hz
18.5 kW
Rated operational power at AC-23A, 400 V, 50 Hz
30 kW
Rated operational power at AC-23A, 500 V, 50 Hz
45 kW
Rated operational power at AC-23A, 690 V, 50 Hz
55 kW
Rated operational voltage (Ue) at AC - min
690 V
Rated operational voltage (Ue) at AC - max
690 V
Rated uninterrupted current (Iu)
63 A
Uninterrupted current
Rated uninterrupted current Iu is specified for max. cross-section.
Short-circuit rating
Rated conditional short-circuit current (Iq)
4 kA (Load side)
100 kA (Supply side)
100 kA (Supply side)
Rated short-time withstand current (Icw)
1.26 kA
Short-circuit current rating (basic rating)
10 kA, SCCR (UL/CSA)
150A, max. Fuse, SCCR (UL/CSA)
150A, max. Fuse, SCCR (UL/CSA)
Short-circuit protection rating
80 A gG/gL, Fuse, Contacts
Switching capacity
Load rating
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)
1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)
Number of contacts in series at DC-23A, 24 V
1
Number of contacts in series at DC-23A, 48 V
2
Number of contacts in series at DC-23A, 60 V
2
Number of contacts in series at DC-23A, 120 V
3
Switching capacity (main contacts, general use)
60 A, Rated uninterrupted current max. (UL/CSA)
Switching capacity (auxiliary contacts, general use)
10A, IU, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
P600 (UL/CSA)
A600 (UL/CSA)
A600 (UL/CSA)
Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3)
800 A
Voltage per contact pair in series
60 V
Motor rating
Assigned motor power at 115/120 V, 60 Hz, 1-phase
3 HP
Assigned motor power at 200/208 V, 60 Hz, 1-phase
7.5 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase
15 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase
10 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
15 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
40 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
50 HP
Contacts
Control circuit reliability
1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Actuator
Actuator color
Black
Actuator type
Door coupling rotary drive
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
4.5 W
Rated operational current for specified heat dissipation (In)
63 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
UV resistance only in connection with protective shield.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Finition interrupteur général (EF006981) | Non |
| Finition interrupteur de maintenance/réparation (EF006986) | Non |
| Finition interrupteur de sécurité (EF006985) | Non |
| Finition interrupteur de dispositif d'arrêt d'urgence (EF006959) | Non |
| Finition de l'inverseur (EF009408) | Non |
| Nombre de commutateurs (EF005586) | 1 |
| Tension de fonctionnement nominale max. Ue en CA (EF007355) | 690 V |
| Tension de fonctionnement normale (EF001435) | 690 V |
| Courant permanent nominal Iu (EF001389) | 63 A |
| Courant permanent nominal, CA-21, 400 V (EF011777) | 63 A |
| Courant permanent nominal , CA-21, 400 V (EF009165) | 63 A |
| Puissance de fonctionnement nominale, CA-3, 400 V (EF001364) | 30 kW |
| Courant nominal de courte durée admissible Icw (EF007050) | 1.26 kA |
| Puissance de fonctionnement nominale, CA-23, 400 V (EF007027) | 30 kW |
| Puissance de commutation à 400 V (EF009166) | 30 kW |
| Intensité de court-circuit nominale conditionnelle Iq (EF001444) | 100 kA |
| Nombre de pôles (EF001391) | 3 |
| Nombre de contacts auxiliaires à ouverture (EF001377) | 0 |
| Nombre de contacts auxiliaires à fermeture (EF001376) | 0 |
| Nombre de contacts auxiliaires à deux directions (EF003531) | 0 |
| Commande motorisée en option (EF007386) | Non |
| Commande motorisée intégrée (EF006697) | Non |
| Déclencheur voltmétrique en option (EF007491) | Non |
| Type de construction de l'appareil (EF008240) | Technique d'encastrement fixe pour appareil encastré |
| Adapté à une fixation frontale à 4 trous (EF007247) | Non |
| Adapté à une fixation frontale centrale (EF007248) | Non |
| Adapté à un montage en distributeur (EF007262) | Non |
| Adapté à un montage intermédiaire (EF007264) | Oui |
| Couleur de l'élément d'actionnement (EF007167) | Noir |
| Finition de l'élément d'actionnement (EF006976) | Commande rotative déportée sur porte |
| Verrouillable (EF006281) | Non |
| Type de raccordement du circuit principal (EF006819) | Borne à vis |
| Avec un câblage préparé (EF016444) | Non |
| Classe de protection (IP), face avant (EF003118) | IP65 |
| Classe de protection (NEMA) (EF011959) | 12 |
| Largeur (EF000008) | 87 mm |
| Hauteur (EF000040) | 87 mm |
| Profondeur (EF000049) | 140 mm |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| P3-63/Z Y7-50591 050591 ES_039243.pdf | 1 Mbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
