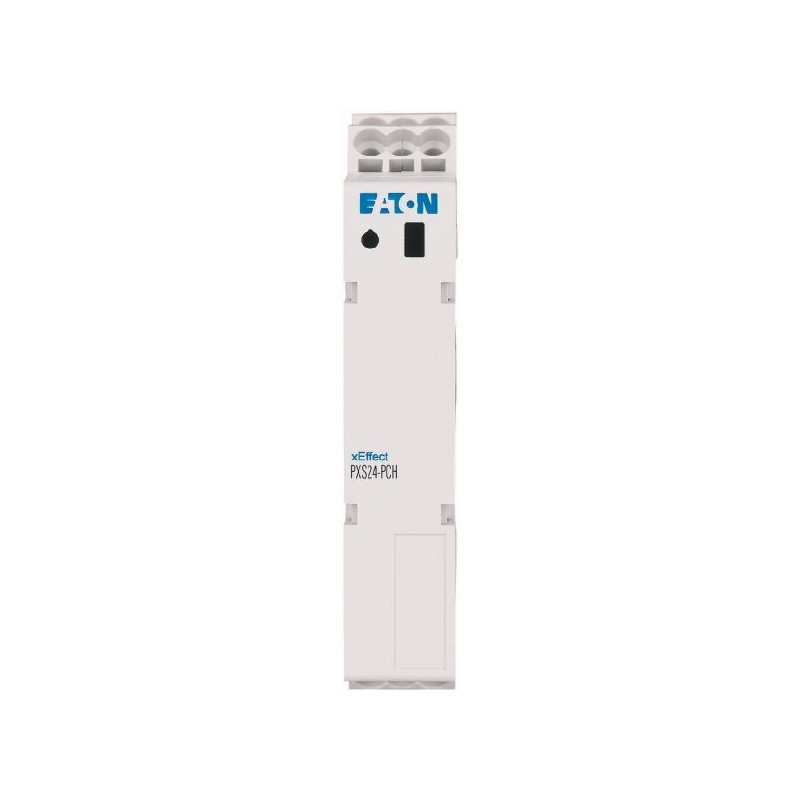

PXS24-PCH PXS24ACC0000 EATON ELECTRIC Module de reserve sans fonction électrique
PXS24-PCH
PXS24ACC0000
PXS24ACC0000
EATON-MOELLER
Module de reserve - sans fonction électrique
PXS24-PCH
Eaton Moeller series xEffect - PXS24 Electronic Protection Module. Placeholder for PXS24 series with no electrical function
Protection modulaire fiable contre les surintensités électroniques pour les systèmes 24V DC, solution de jeu de barres simple, ampérages fixes ou variables, en option avec entrée de commande et sortie de message déclenché, bornes enfichables (+ 24V et 0V) pour jusqu’à 3 charges, conception robuste, contrôlable à distance locale et (en option) à distance
Relais > Relais de surveillance de courant
Protection électronique contre surintensités
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Les plus vendus
▲En savoir plus
▲Spécifications générales
| Product Name | Eaton Moeller series xEffect - PXS24 current monitoring relay |
| Catalog Number | PXS24ACC0000 |
| Model Code | PXS24-PCH |
| EAN | 9010238011397 |
| UPC | 786689167424 |
| Product Length/Depth | 127 mm |
| Product Height | 93 mm |
| Product Width | 18 mm |
| Product Weight | 0.118 kg |
| Compliances | RoHS conform |
| Certifications | EN45545-2 IEC 61373 |
Delivery program
| Type | Automation engineering 24V |
Technical Data - Electrical
| Voltage type | DC |
| Voltage rating | 24 VDC (15 VDC - 30 VDC) |
| Rated control supply voltage (Us) at AC, 50 Hz - min | 0 V |
| Rated control supply voltage (Us) at AC, 50 Hz - max | 0 V |
| Rated control supply voltage (Us) at AC, 60 Hz - min | 0 V |
| Rated control supply voltage (Us) at AC, 60 Hz - max | 0 V |
| Rated control supply voltage (Us) at DC - min | 15 V |
| Rated control supply voltage (Us) at DC - max | 30 V |
| Electric connection type | Plug-in connection |
Technical Data - Mechanical
| Mounting method | Snap-fit on DIN rail (EN 60715) |
| Number of contacts (change-over contacts) | 0 |
| Number of contacts (normally closed contacts) | 0 |
| Number of contacts (normally open contacts) | 1 |
| Busbar type | LINE (+) and GND (-); max 60A in various lengths of up to 1m |
| Terminal capacity | 2.5 mm² (flexible with ferrules) 4 mm² (rigid) |
Design verification as per IEC/EN 61439 - technical data
| Ambient operating temperature details | -30° C - 55° C |
| Permitted storage and transport temperature - min | -40 °C |
| Permitted storage and transport temperature - max | 100 °C |
Design verification as per IEC/EN 61439
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Additional information
| Functions | DC-voltage over current |
| Protection | None |
| Text field type | 17.5 mm x 6 mm |
| Caractéristique | Valeur |
|---|---|
| Finition du raccordement électrique (EF003961) | Fiche |
| Avec pinces amovibles (EF003340) | Non |
| Alimentation externe requise (EF003292) | Non |
| Plage de mesure du courant (EF000417) | 0 A |
| Sous-intensité de courant monophasée possible (EF003405) | Non |
| Sous-intensité de courant triphasée possible (EF003406) | Non |
| Surintensité de courant monophasée possible (EF003407) | Non |
| Surintensité de courant triphasée possible (EF003408) | Non |
| Fenêtre monophasée possible (EF003394) | Non |
| Fenêtre triphasée possible (EF003395) | Non |
| Contient une fonction tension continue-sous-intensité de courant (EF003409) | Non |
| Contient une fonction tension continue-surintensité de courant (EF003410) | Oui |
| Fonction fenêtre de courant continu (EF003411) | Non |
| Délai de temporisation du déclenchement min. réglable (EF008190) | 0 s |
| Délai de temporisation du déclenchement max. admissible (EF008189) | 0 s |
| Délai de retardement du déclenchement min. réglable (EF008192) | 0 s |
| Délai de retardement du déclenchement max. admissible (EF008191) | 0 s |
| Transformateur de mesure de courant externe (EF001923) | Non |
| Nombre de contacts en tant que contacts à ouverture (EF008255) | 0 |
| Nombre de contacts en tant que contacts à fermeture (EF008256) | 1 |
| Nombre de contacts en tant qu'inverseurs (EF008257) | 0 |
| Largeur (EF000008) | 18 mm |
| Hauteur (EF000040) | 93 mm |
| Profondeur (EF000049) | 127 mm |
