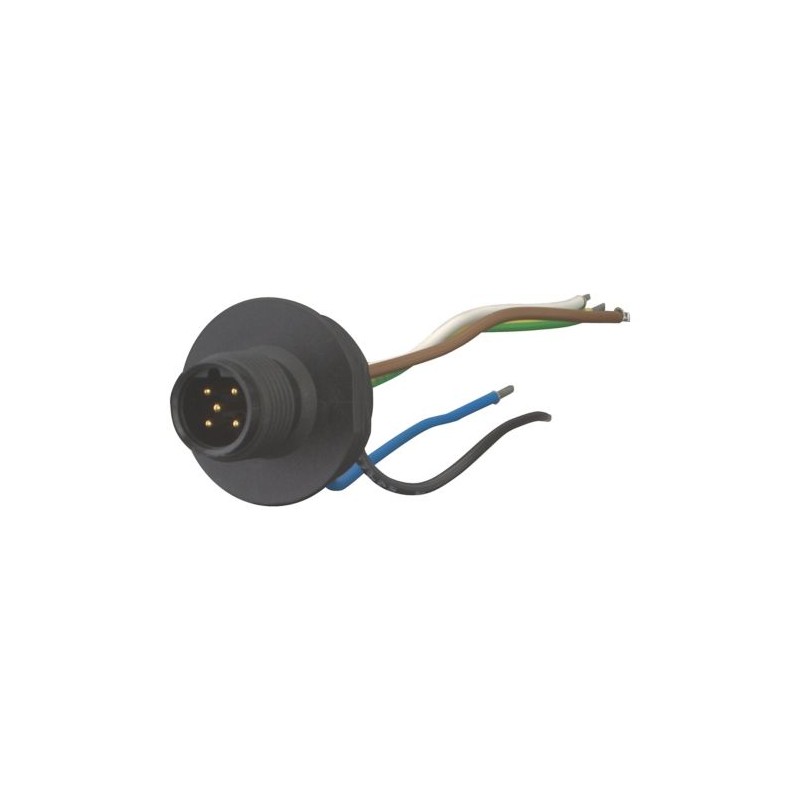

M12B5 272203 Y7-272203 EATON ELECTRIC Prise de raccordement, 5p, M12, codè 'B' Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

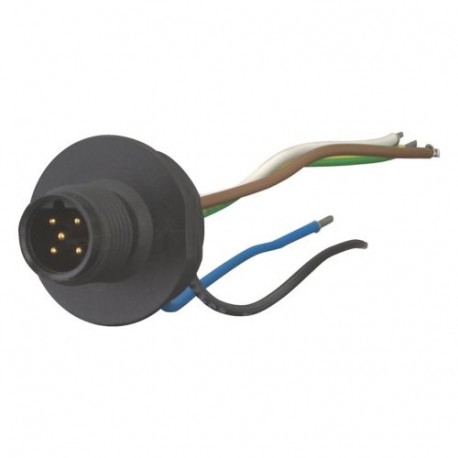

M12B5 272203 Y7-272203 EATON ELECTRIC Prise de raccordement, 5p, M12, codè 'B'

M12B5

272203

Y7-272203

EATON-MOELLER

Prise de raccordement, 5p, M12, codè 'B'

Réf. M12B5

Eaton Moeller® series M12 Terminal socket, 5p, M12, B coded

Accessoires, système modulaire LS-Titan

Plus de détails


Détecteurs > Accessoires pour commutateur de position

Interrupteurs de position

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $23.88
Prix unitaire: $23.88
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series M12 Accessory Connection socket
Catalog Number
272203
Model Code
M12B5
EAN
4015082722036
Product Length/Depth
22 mm
Product Height
90 mm
Product Width
23 mm
Product Weight
0.009 kg
Compliances
CE

Features & Functions

Material
Molded
Number Of Poles
Five-pole

General

Accessory/spare part type
Other
Degree of protection
IP66
Lifespan, mechanical
500 insertion cycles
Overvoltage category
II
Pollution degree
3
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C

Electrical rating

Conventional thermal current ith of auxiliary contacts (1-pole, open)
1 A
Rated operational current (Ie)
4 A
Rated operational voltage (Ue) at AC - max
125 V
Short-circuit protection rating
4 A gG/gL, Fuse, Contacts

Design verification

Heat dissipation capacity Pdiss
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 272203 Détecteurs (EC002594)
Caractéristique Valeur
Type d'accessoire (EF000215) Autre
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M12B5 Y7-272203 272203 FR_272203.pdf 109 Kbytes M12B5 Y7-272203 272203 FR_272203.pdf
