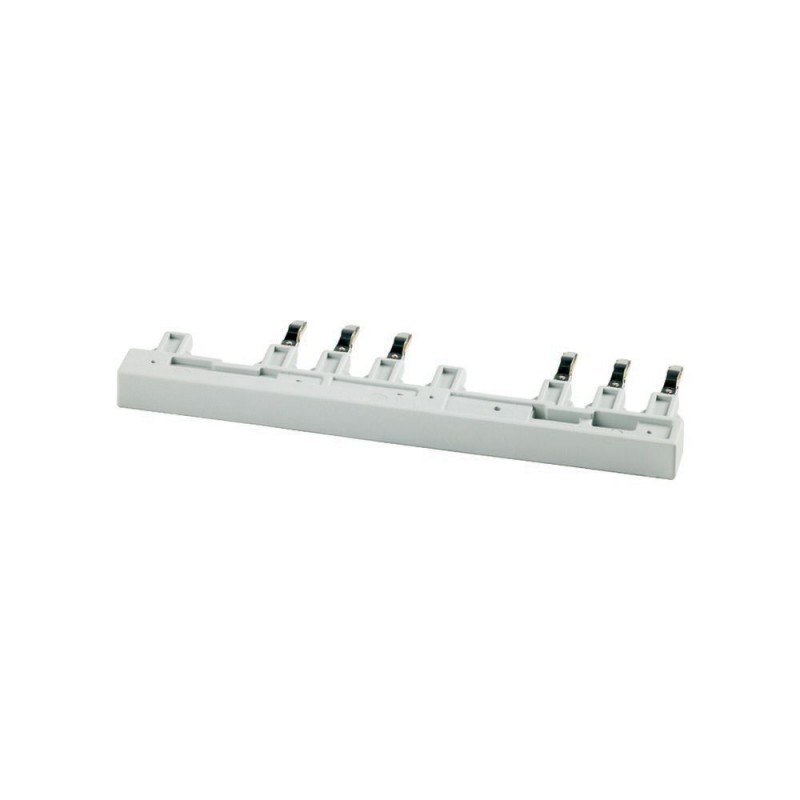

DILM12-XR 110099 Y7-110099 EATON ELECTRIC Pont d'inversion de phases, pour DILM7-M12 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DILM12-XR 110099 Y7-110099 EATON ELECTRIC Pont d'inversion de phases, pour DILM7-M12

DILM12-XR

110099

Y7-110099

EATON-MOELLER

20

Pont d'inversion de phases, pour DILM7-M12

DILM12-XR

Eaton Moeller® series DILM Reversing bridge, for DILM7-M12 DILM12-XR

Pont de câblage de courant principal enfichable pour un montage rapide et simple

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $142.41
Prix unitaire: $7.12
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series DILM reversing bridge
Catalog Number
110099
Model Code
DILM12-XR
EAN
4015081096657
Product Length/Depth
90 mm
Product Height
31 mm
Product Width
7 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
UL 508
EN 60947-4-1
CSA Std. C22.2 No. 14-05
IEC 60947-4-1
UL Category Control No.: NLRV
UL File No.: E36332
CSA Class No.: 3211-05
UL
CSA
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC/EN 60947-4-1
CE

Features & Functions

Functions
To assemble reversing starters with tool-less plug connection

General

Accessory/spare part type
Connecting bridge
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
6000 V AC
Type
Connection system SmartWire
Used with
DILM7-DILM12

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Electrical Rating

Rated operational voltage (Ue) at AC - min
230 V
Rated operational voltage (Ue) at AC - max
415 V

Design verification

Equipment heat dissipation, current-dependent Pvid
2.1 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.7 W
Rated operational current for specified heat dissipation (In)
22 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 110099 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Pont de liaison
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM12-XR Y7-110099 110099 ES_110099.pdf 744 Kbytes DILM12-XR Y7-110099 110099 ES_110099.pdf
