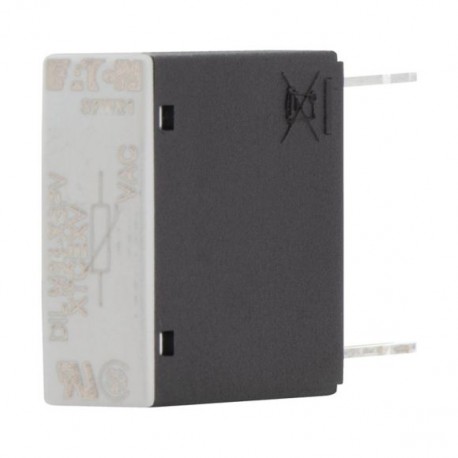

DILM95-XSPV130 281217 Y7-281217 EATON ELECTRIC Module à varistance, 48-130VAC, pour DILM40-95 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DILM95-XSPV130 281217 Y7-281217 EATON ELECTRIC Module à varistance, 48-130VAC, pour DILM40-95

DILM95-XSPV130

281217

Y7-281217

EATON-MOELLER

Module à varistance, 48-130VAC, pour DILM40-95

DILM95-XSPV130

Eaton Moeller® series DILM Varistor suppressor circuit, 48 - 130 AC V, For use with: DILM40 - DILM95, DILK33 - DILK50, DILMP63 - DILMP200

Circuit suppresseur de varistance, Accessoires : Circuit suppresseur, Tension : Us 48 - 130 AC V, À utiliser avec : DILM40 - DILM95, DILK33 - DILK50, DILMP63 - DILMP200

Plus de détails


Appareillage industriel basse tension > Limiteur de surtension

Contacteurs jusqu'à 170A

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $20.10
Prix unitaire: $20.10
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series DILM varistor suppressor circuit
Catalog Number
281217
Model Code
DILM95-XSPV130
EAN
4015082812171
Product Length/Depth
43 mm
Product Height
25 mm
Product Width
9 mm
Product Weight
0.005 kg
Certifications
CSA
UL 508
CE
CSA Class No.: 3211-07
CSA File No.: 256465
IEC/EN 60947-4-1
UL Category Control No.: NKCR2, NKCR8
CSA-C22.2 No. 14-05
UL File No.: E29184
UL Recognized
Catalog Notes
With DC operated contactors and with DILM115 and DILM150 the suppressor is integrated.

Features & Functions

Functions
Varistor (voltage-sensitive resistor)

General

Product category
Accessories
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Magnet system

Rated control supply voltage (Us) at AC, 50 Hz - min
48 V
Rated control supply voltage (Us) at AC, 50 Hz - max
130 V
Rated control supply voltage (Us) at AC, 60 Hz - min
48 V
Rated control supply voltage (Us) at AC, 60 Hz - max
130 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 281217 Appareillage industriel basse tension (EC000683)
Caractéristique Valeur
Fonction (EF000030) Varistance
Type de tension de fonctionnement (EF005294) CA
Tension de fonctionnement CA 50 Hz (EF008206) 230 V
Tension de fonctionnement CA 60 Hz (EF008207) 230 V
Tension de fonctionnement CC (EF008208) 0 V
Avec affichage LED (EF005950) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM95-XSPV130 Y7-281217 281217 ES_235910.pdf 1 Mbytes DILM95-XSPV130 Y7-281217 281217 ES_235910.pdf
