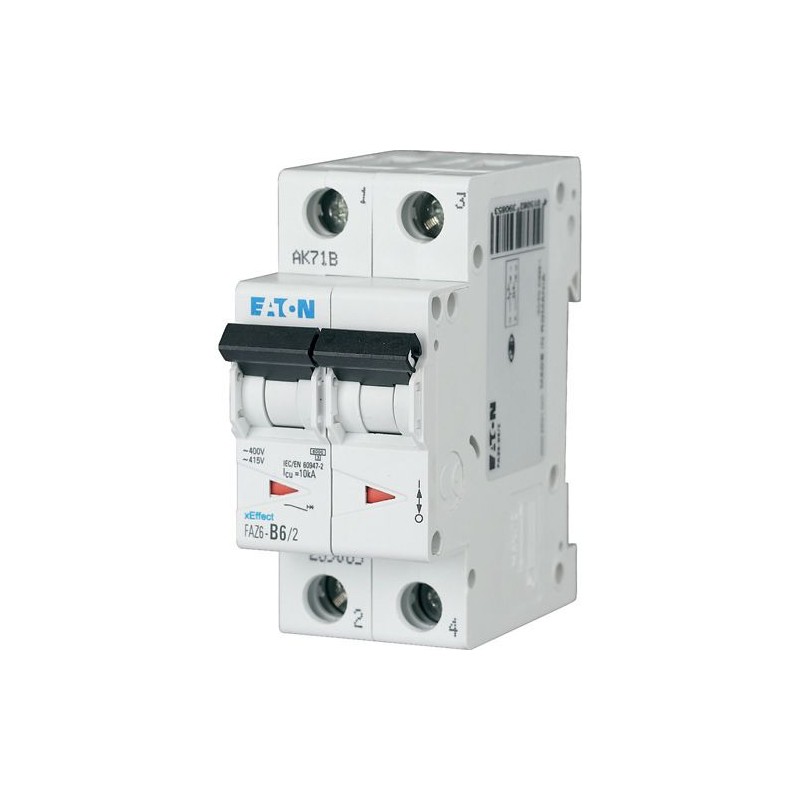

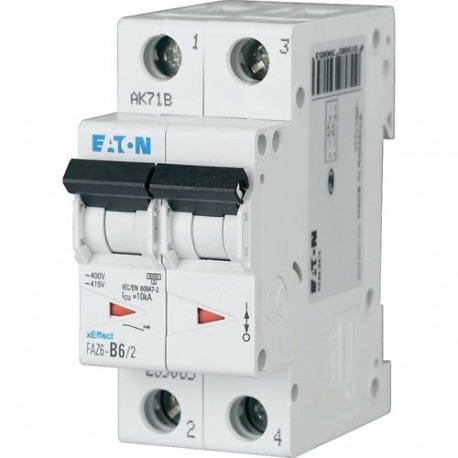

FAZ6-C5/2 177559 Y7-177559 EATON ELECTRIC Disjoncteur modulaire, 5A, 2p, courbe C, 6kA
FAZ6-C5/2
177559
Y7-177559
EATON-MOELLER
Disjoncteur modulaire, 5A, 2p, courbe C, 6kA
Int. disjoncteur FAZ6, 5A, 2P, la courbe C
FAZ6-C5/2. Miniature circuit breaker (MCB), 5 A, 2p, characteristic: C, 6 kA
Disjoncteur miniature de haute qualité pour les applications industrielles et les applications résidentielles, indicateur de position de contact rouge - vert, guide pour une connexion terminale sécurisée, prise de glissière tri-stable - permet de retirer du système de barres omnibus existant, gamme complète d’accessoires adaptés à une installation ultérieure, courants assignés jusqu’à 63 A, caractéristiques de déclenchement B, C, D
Appareils de protection des installations, des équipements et des personnes > Disjoncteur
Appareillage Modulaire - Tertiaire
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Achetés habituellement ensemble
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
| Product Name | Eaton Moeller series xEffect - FAZ6 MCB |
| Catalog Number | 177559 |
| Model Code | FAZ6-C5/2 |
| EAN | 4015081720194 |
| Product Length/Depth | 72.6 mm |
| Product Height | 80 mm |
| Product Width | 36 mm |
| Product Weight | 0.226 kg |
| Compliances | CE Marked RoHS conform |
Delivery program
| Number of poles (total) | 2 |
| Number of poles (protected) | 2 |
| Release characteristic | C |
| Amperage Rating | 5 A |
Technical Data - Electrical
| Voltage type | AC |
| Voltage rating (IEC/EN 60898-1) | 415 V |
| Voltage rating (IEC/EN 60947-2) | 400 |
| Rated operational voltage (Ue) - max | 400 V |
| Operational voltage (IEC/EN 60947-2) - max | 400 V |
| Operational voltage at DC (EC/EN 60947-2) - max | 60 V |
| Rated insulation voltage (Ui) | 440 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Frequency rating - min | 50 Hz |
| Frequency rating - max | 60 Hz |
| Rated switching capacity (IEC/EN 60947-2) | 7.5 kA |
| Overvoltage category | III |
| Pollution degree | 2 |
Technical Data - Mechanical
| Width in number of modular spacings | 2 |
| Built-in depth | 70.5 mm |
| Connectable conductor cross section (solid-core) - min | 1 mm² |
| Connectable conductor cross section (solid-core) - max | 25 mm² |
| Connectable conductor cross section (multi-wired) - min | 1 mm² |
| Connectable conductor cross section (multi-wired) - max | 25 mm² |
Design verification as per IEC/EN 61439 - technical data
| Rated operational current for specified heat dissipation (In) | 5 A |
| Equipment heat dissipation, current-dependent | 3.8 W |
| Ambient operating temperature - min | -25 °C |
| Ambient operating temperature - max | 75 °C |
Design verification as per IEC/EN 61439
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Additional information
| Current limiting class | 3 |
| Features | Additional equipment possible |
| Caractéristique | Valeur |
|---|---|
| Profondeur d'encastrement (EF000218) | 70.5 mm |
| Caractéristique de déclenchement (EF000889) | C |
| Nombre de pôles (total) (EF008618) | 2 |
| Nombre de pôles protégés (EF005548) | 2 |
| Courant nominal assigné (EF000227) | 5 A |
| Tension assignée (EF000228) | 400 V |
| Tension d'isolation assignée Ui (EF001366) | 440 V |
| Tension nominale de tenue aux chocs Uimp (EF011980) | 4 kV |
| Pouvoir de coupure assigné Icn selon EN 60898 à 230 V (EF009556) | 6 kA |
| Type de tension (EF000187) | CA |
| Pouvoir de coupure assigné Icn selon EN 60898 à 400 V (EF009555) | 6 kA |
| Pouvoir de coupure assigné Icu selon IEC 60947-2 à 230 V (EF009557) | 10 kA |
| Pouvoir de coupure assigné Icu selon IEC 60947-2 à 400 V (EF009558) | 10 kA |
| Fréquence (EF000416) | 50 Hz |
| Puissance dissipée (EF005387) | 3.2 W |
| Classe de limitation d'énergie (EF002568) | 3 |
| Montage encastré (EF007517) | Non |
| Conducteur neutre branché simultanément (EF005997) | Non |
| Catégorie de surtension (EF002569) | 3 |
| Degré de pollution (EF002570) | 2 |
| Dispositifs auxiliaires possibles (EF008148) | Oui |
| Largeur dans les unités de partition (EF002950) | 2 |
| Classe de protection (IP) (EF005474) | IP20 |
| Température ambiante en fonctionnement (EF007515) | -25 °C |
| Section de conducteur connectable multifilaire (EF007343) | 1 mm² |
| Section de conducteur connectable monofilaire (EF007337) | 1 mm² |
| Antidéflagration (EF004663) | Non |
