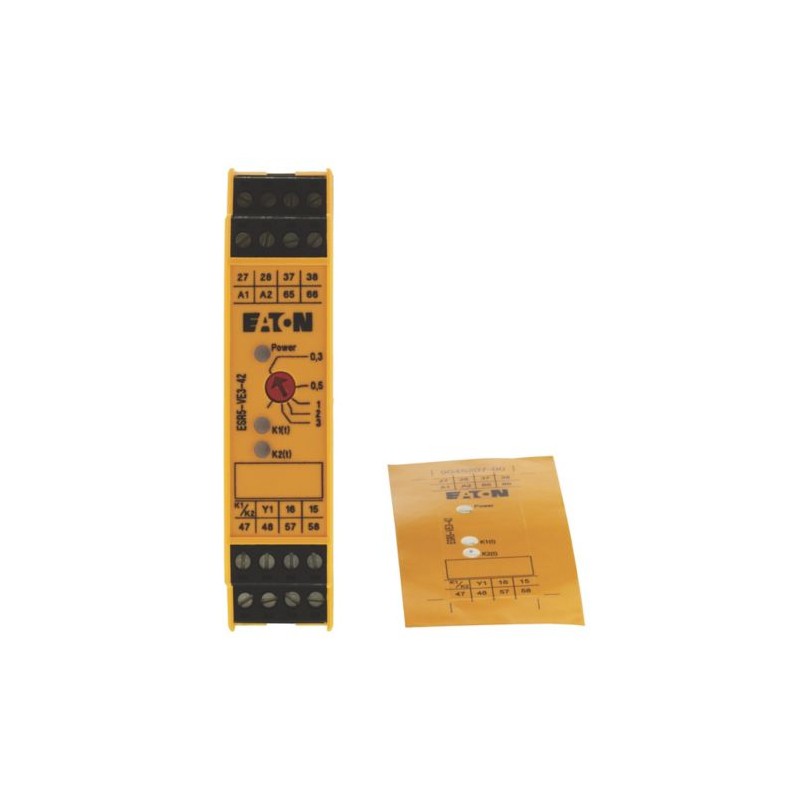

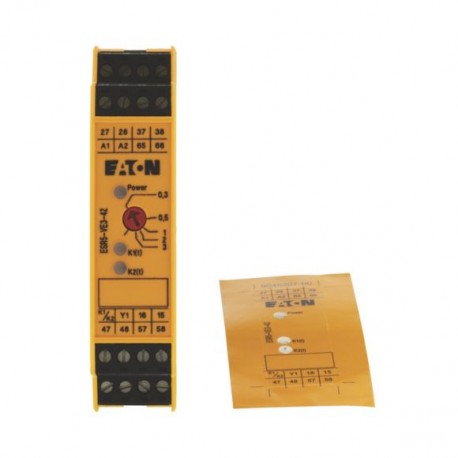

ESR5-VE3-42 118706 Y7-118706 EATON ELECTRIC Augmentation du nombre de contacts, 24VDC/AC, 4 circuits de vali..
ESR5-VE3-42
118706
Y7-118706
EATON-MOELLER
Augmentation du nombre de contacts, 24VDC/AC, 4 circuits de validation retard à la chute
ESR5-VE3-42
Eaton ESR5 Contact expansion module, 24VDC/AC, 4 enabling paths off-delayed
Module d’extension de contact, non retardé, pour l’extension des contacts sur les modules logiques de sécurité et la fonction de synchronisation, tension d’alimentation 24VDC, 4 chemins de courant d’activation (IEC/EN 60204 Catégorie d’arrêt 1) - l’unité de base détermine la classe de sécurité maximale selon IEC 61508 et IEC 60204, 2 chemins de courant de signal, carénage d’étiquette de jeu de barres selon EN 50274 avec actionnement vertical à l’abri des doigts et du dos de la main, Convient pour cat. 3 selon EN 954-1 / PL d selon EN ISO 13849-1 / SILCL3 selon IEC 62061 / SIL3 selon IEC61508, degré de protection IP20, emplacement d’installation IP54 minimum, testé TÜV, tension d’impulsion nominale 4 kV / isolation de base (isolation de sécurité isolation renforcée et 6 kV entre le circuit de courant d’entrée/contacts N/C et contacts d’activation.
Relais > Appareil de surveillance de circuit électrique à sécurité intrinsèque
Relais temporisés (KETR, KEMR, KESR)
Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER
Related products
▲Les plus vendus
▲En savoir plus
▲Spécifications générales
Product Name
Eaton ESR5 Contact expansion module
Catalog Number
118706
Model Code
ESR5-VE3-42
EAN
4015081168460
Product Length/Depth
114.5 mm
Product Height
99 mm
Product Width
22.5 mm
Product Weight
0.173 kg
Certifications
UL File No.: E29184
Certified by UL for use in Canada
CSA Class No.: 3211-83; 3211-03
UL
2014/30/EU
IEC 62061
UL 508
IEC/EN 60204
EN 50178
CE
UL report applies to both US and Canada
UL Category Control No.: NKCR; NKCR7
EN ISO 13849-1
CSA-C22.2 No. 14-95
IEC 61508, Parts 1-7
Machines 2006/42/EG
Certified by UL for use in Canada
CSA Class No.: 3211-83; 3211-03
UL
2014/30/EU
IEC 62061
UL 508
IEC/EN 60204
EN 50178
CE
UL report applies to both US and Canada
UL Category Control No.: NKCR; NKCR7
EN ISO 13849-1
CSA-C22.2 No. 14-95
IEC 61508, Parts 1-7
Machines 2006/42/EG
Catalog Notes
The base unit determines the maximum stop category according to IEC 61508 and IEC 60204
Feature & Functions
Electric connection type
Screw connection
Features
Feedback current path
Safe insulation
6 kV between input circuit / NC contacts, and enable current paths
Basic insulation
Reinforced insulation
Safe insulation
6 kV between input circuit / NC contacts, and enable current paths
Basic insulation
Reinforced insulation
Fitted with:
Approval for TÜV
Detachable clamps
Approval according to UL
Feedback circuit
Detachable clamps
Approval according to UL
Feedback circuit
Functions
1-channel
Time function
Time function
Material
Contacts: silver tin oxide, gold plated (AgSnO2, 0.2 µm Au)
Enclosure: Polyamide (PA), not reinforced
Enclosure: Polyamide (PA), not reinforced
General information
Connection type
M3 screw terminals
Current consumption
94 mA, DC
94 mA, AC
94 mA, AC
Degree of protection
IP20
Installation location: ≥ IP54
Enclosure: IP20
Terminals: IP20
Installation location: ≥ IP54
Enclosure: IP20
Terminals: IP20
Duty factor
100 %
Emitted interference
According to EN 61000-6-4
Interference immunity
According to EN 61000-6-2
LED indicator
Status indication of SmartWire-DT network: Green LED
Lifespan, mechanical
10,000,000 Operations
Model
Expansion device
Mounting method
Rail mounting possible
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Top-hat rail fixing (according to IEC/EN 60715, 35 mm)
Mounting width
22.5 mm
Overvoltage category
III
Pollution degree
2
Power loss
Normally 4.52 W
Product category
Electronic safety relays
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
4000 V AC
Recovery time
1000 ms
Safety performance level (EN ISO 13849-1)
Level d
Safety parameter (IEC 62061)
SIL 3, Safety integrity level, In accordance with IEC 61508
SILCL 3, Safety integrity level claim limit
SILCL 2, Safety integrity level claim limit
SIL 2, Safety integrity level, In accordance with IEC 61508
13.5 x 10-10, PFHd, Probability of failure per hour
Cat. 3, Category
SILCL 3, Safety integrity level claim limit
SILCL 2, Safety integrity level claim limit
SIL 2, Safety integrity level, In accordance with IEC 61508
13.5 x 10-10, PFHd, Probability of failure per hour
Cat. 3, Category
Stop category (IEC 60204)
1
Suitable for
Safety relay contact expansion block per DIN EN60204-1/VDE 0113 Part 1 for contact multiplication
Monitoring of position switches
Monitoring of emergency-stop circuits
The expansion unit can be used for contact multiplication for emergency stop relays and two-hand controls
Monitoring of position switches
Monitoring of emergency-stop circuits
The expansion unit can be used for contact multiplication for emergency stop relays and two-hand controls
Switching frequency
Max. 0.5 Hz, Input data
Type
Contact expansions
Voltage type
DC
Ambient conditions, mechanical
Mounting position
As required
Prooftest
67 Months (Low Demand)
240 Months (High Demand)
240 Months (High Demand)
Switching capacity
3 A at 3600 O/h, AC-15 at 230 V, Outputs
In accordance with IEC 60947-5-1, Outputs
0.4 W
3 A at 3600 O/h, DC-13 at 24 V, Outputs
In accordance with IEC 60947-5-1, Outputs
0.4 W
3 A at 3600 O/h, DC-13 at 24 V, Outputs
Vibration resistance
10 - 150 Hz, Amplitude: 0.15 mm, Acceleration: 2 g, (IEC/EN 60068-2-6)
Climatic environmental conditions
Air pressure
795 - 1080 hPa (operation)
Altitude
Max. 2000 m
Ambient operating temperature - min
-20 °C
Ambient operating temperature - max
55 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-3
Dry heat to IEC 60068-2-2
Dry heat to IEC 60068-2-2
Environmental conditions
Condensation: Non-condensing
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95
Clearance in air and creepage distances according to EN 50178, UL 508, CSA C22.2, No. 14-95
Operating temperature - min
-20 °C
Operating temperature - max
55 °C
Relative humidity
< 75 %
Terminal capacities
Terminal capacity
1 x (0.2 – 2.5) mm², solid
1 x (0.25 – 2.5) mm², flexible with ferrule
2 x (0.25 – 1) mm², flexible with ferrule
24 - 12 AWG, solid or stranded
2 x (0.2 – 1) mm², solid
1 x (0.25 – 2.5) mm², flexible with ferrule
2 x (0.25 – 1) mm², flexible with ferrule
24 - 12 AWG, solid or stranded
2 x (0.2 – 1) mm², solid
Stripping length (main cable)
7 mm
Screwdriver size
0.6 x 3.5 mm, Terminal screws
2, Terminal screw, Pozidriv screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
0.6 Nm, Screw terminals
Electrical rating
Inrush current
0.025 - 6 A (N/O)
0.025 - 3 A (N/C)
0.025 - 3 A (N/C)
Power supply circuit
2 W (DC operated)
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
26.4 V
Rated control supply voltage (Us) at AC, 60 Hz - min
20.4 V
Rated control supply voltage (Us) at AC, 60 Hz - max
26.4 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated insulation voltage (Ui)
250 V
Rated operational voltage
24 V DC (power supply)
230 V AC
230 V AC
Short-circuit protection
Fuse 4 A gL/gG (Signal current paths), For output circuits, External
Fuse 10 A gL/gG (Enable current paths), For output circuits, External
Fuse 10 A gL/gG (Enable current paths), For output circuits, External
Short-circuit protection rating
10A gL/gG, NEOZED (N/O), Output fuse, External, Output data
4A gL/gG, NEOZED (N/C), Output fuse, External, Output data
4A gL/gG, NEOZED (N/C), Output fuse, External, Output data
Input/Output
Breaking power
1500 VA max., Output data, resistive load (τ = 0 ms), at 250 V AC (for N/C contacts 65 - 66)
288 W max., Output data, resistive load (τ = 0 ms), at 48 V DC (for N/C contacts 65 - 66)
40 W max., Output data, inductive load (τ = 40 ms), at 48 V DC
35 W max., Output data, inductive load (τ = 40 ms), at 110 V DC
144 W max. resistive load (τ = 0 ms), at 24 V DC (for N/C contacts 65 - 66)
33 W max., Output data, inductive load (τ = 40 ms), at 220 V DC
77 W max., Output data, resistive load (τ = 0 ms), at 110 V DC
88 W max., Output data, resistive load (τ = 0 ms), at 220 V DC
48 W max., Output data, inductive load (τ = 40 ms), at 24 V DC
288 W max., Output data, resistive load (τ = 0 ms), at 48 V DC (for N/C contacts 65 - 66)
40 W max., Output data, inductive load (τ = 40 ms), at 48 V DC
35 W max., Output data, inductive load (τ = 40 ms), at 110 V DC
144 W max. resistive load (τ = 0 ms), at 24 V DC (for N/C contacts 65 - 66)
33 W max., Output data, inductive load (τ = 40 ms), at 220 V DC
77 W max., Output data, resistive load (τ = 0 ms), at 110 V DC
88 W max., Output data, resistive load (τ = 0 ms), at 220 V DC
48 W max., Output data, inductive load (τ = 40 ms), at 24 V DC
Feedback current path
Delayed feedback current path
Input
∞ ms, Simultaneity for inputs 1/2
Nominal current
84 A
Number of inputs
1-channel
Number of outputs (safety related, delayed) with contact
4
Number of outputs (safety related, undelayed) with contact
0
Number of outputs (signaling function, delayed) with contact
1
Number of outputs (signaling function, undelayed) with contact
0
Off-delay
0.3 - 3 s (± 50 %)
Pick-up time
20 ms typ. (K1, K2 - for UN automatic mode)
20 ms typ. (at Uₑ in automatic mode)
20 ms typ. (K1, K2 - for UN manual operation)
20 ms typ. (at Uₑ in manual mode)
20 ms typ. (at Uₑ in automatic mode)
20 ms typ. (K1, K2 - for UN manual operation)
20 ms typ. (at Uₑ in manual mode)
Quadratic summation current
50 A² (ITH² = I1² + I2² + I3² + I4²)
Switching voltage
250 V
Uninterrupted current
3 A N/C, Limiting continuous current
6 A N/O, Limiting continuous current
6 A N/O, Limiting continuous current
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
4.52 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Caractéristique | Valeur |
|---|---|
| Modèle (EF000010) | Appareil d'extension |
| Montage possible sur barres profilées (EF003972) | Oui |
| Avec pinces amovibles (EF003340) | Oui |
| Finition du raccordement électrique (EF003961) | Borne à vis |
| Type de tension d'alimentation (EF002991) | CC |
| Tension d'alimentation CA 50 Hz (EF007532) | 0 V |
| Tension d'alimentation CA 60 Hz (EF007533) | 0 V |
| Tension d'alimentation CC (EF007534) | 24 V |
| Adapté à la surveillance de commutateurs de position (EF007270) | Oui |
| Adapté à la surveillance de circuits d'arrêt d'urgence (EF007268) | Oui |
| Adapté à la surveillance de vannes (EF007272) | Non |
| Adapté à la surveillance d'équipements de protection optoélectroniques (EF007269) | Non |
| Adapté à la surveillance de capteurs tactiles (EF007271) | Non |
| Adapté à la surveillance de commutateurs magnétiques (EF007266) | Non |
| Adapté à la surveillance de commutateurs de proximité (EF007267) | Non |
| Évaluation des entrées (EF008245) | À un canal |
| Puissance absorbée (EF000346) | 4.52 W |
| Avec entrée de démarrage (EF003342) | Non |
| Avec fonction silence (EF004057) | Non |
| Avec boucle de retour (EF003343) | Oui |
| Retardement du déclenchement (EF001129) | 0 s |
| Type de tension de commande 1 (EF002954) | CC |
| Tension de commande 1 (EF002952) | 24 V |
| Type de tension de commande 2 (EF002955) | CC |
| Tension de commande 2 (EF002953) | 24 V |
| Nombre de sorties, orientées sur la sécurité, non retardées, avec contact (EF003344) | 0 |
| Nombre de sorties, orientées sur la sécurité, retardées, avec contact (EF003345) | 4 |
| Nombre de sorties, orientées sur la sécurité, non retardées, semiconducteur (EF003346) | 0 |
| Nombre de sorties, orientées sur la sécurité, retardées, semiconducteur (EF003347) | 0 |
| Nombre de sorties, fonction de signalisation, non retardées, avec contact (EF003348) | 0 |
| Nombre de sorties, fonction de signalisation, retardées, avec contact (EF003349) | 1 |
| Nombre de sorties, fonction de signalisation, non retardées, semiconducteur (EF003350) | 0 |
| Nombre de sorties, fonction de signalisation, retardées, semiconducteur (EF003351) | 0 |
| Type de tension de fonctionnement (EF005294) | CC |
| Tension de fonctionnement CA 50 Hz (EF008206) | 0 V |
| Tension de fonctionnement CA 60 Hz (EF008207) | 0 V |
| Tension de fonctionnement CC (EF008208) | 24 V |
| Courant de commutation assigné (EF006706) | 6 A |
| Type de sécurité selon IEC 61496-1 (EF004105) | Sans |
| Catégorie d'arrêt selon IEC 60204 (EF007498) | 1 |
| Niveau de performance selon EN ISO 13849-1 (EF007399) | Niveau d |
| SIL conformément à IEC 61508 (EF009889) | 3 |
| Avec homologation BG BIA (EF004145) | Non |
| Avec homologation selon UL (EF001783) | Oui |
| Largeur (EF000008) | 22.5 mm |
| Hauteur (EF000040) | 99 mm |
| Profondeur (EF000049) | 114.5 mm |
| With approval for TÜV (EFDE0031) | Oui |
Datasheet - PDF
▲| Titre: | Taille: | Type: |
|---|---|---|
| PDF EATON EMR ERT EMT EN.pdf | 3 Mbytes |
|
| PDF EATON SAFETY RELAYS ESR5 EN.pdf | 1 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| ESR5-VE3-42 Y7-118706 118706 ES_118706.pdf | 1007 Kbytes |
|
Commentaires: (0) ▲
Aucun commentaire sur le produit encore.
Écrire commentaire
Sous forme de peau
| Score: |
|
| Nom: | |
| Email: | |
| Titre: | |
| Commentaire: | |
| Recommandez-vous acheter ce produit? | |
|
|
|
| Écrire commentaire | |
Toutes les évaluations que nous recevons des articles que nous proposons sont réels et vérifiés. Un petit geste, mais très précieux. Je vous remercie pour cette minute que vous passez à nous laisser votre avis et note sur les produits, car il nous aide à continuer à améliorer et à offrir encore plus la qualité de service.
