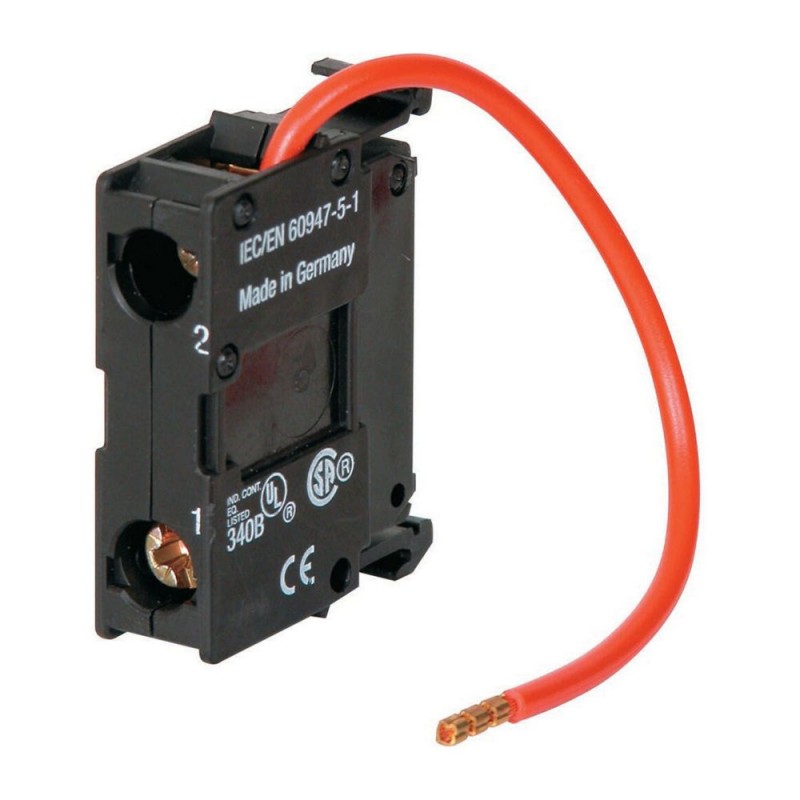

M22-XLED60 231078 Y7-231078 EATON ELECTRIC Élément amont, 42-60VAC/DC, pour LED 12-30V Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

M22-XLED60 231078 Y7-231078 EATON ELECTRIC Élément amont, 42-60VAC/DC, pour LED 12-30V

M22-XLED60

231078

Y7-231078

EATON-MOELLER

10

Élément amont, 42-60VAC/DC, pour LED 12-30V

M22-XLED60

Eaton Moeller® series M22 Series element, 42-60VAC/DC, for LED 12-30V

Les éléments avant brillent avec les éléments lumineux à LED RMQ-Titan !

Plus de détails


Appareillage industriel basse tension > Accessoires pour appareils de commande

Moyens de contrôle et de signalisation

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $86.79
Prix unitaire: $8.68
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Achetés habituellement ensemble

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series M22 Accessory LED
Catalog Number
231078
Model Code
M22-XLED60
EAN
4015082310783
Product Length/Depth
37 mm
Product Height
30 mm
Product Width
10 mm
Product Weight
0.011 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
UL 508
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
UL Category Control No.: NKCR
CSA Class No.: 3211-03
CE
IEC/EN 60947-5
UL
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA
UL File No.: E29184
CSA-C22.2 No. 94-91
Catalog Notes
LED resistor

Features & Functions

Functions
For connecting 12 - 30 V LED elements

General

Accessory/spare part type
Accessory
Degree of protection
IP20
Used with
12-30 V LED elements

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
80 °C

Electrical rating

Rated operational voltage
42 - 60 V AC/DC

Communication

Connection to SmartWire-DT
No

Contacts

Force for positive opening - min
0 N

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 231078 Appareillage industriel basse tension (EC002024)
Caractéristique Valeur
Type d'accessoire électrique (EF005722) Bloc de résistance
Type d'accessoire mécanique (EF005994) Autre
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-XLED60 Y7-231078 231078 ES_231078.pdf 988 Kbytes M22-XLED60 Y7-231078 231078 ES_231078.pdf
