DS7-34DSX032N0-D 134950 Y7-134950 EATON ELECTRIC Démarreurs progressifs, 32 A, 200 480 V AC, 24 V DC, Taille.. Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

DS7-34DSX032N0-D 134950 Y7-134950 EATON ELECTRIC Démarreurs progressifs, 32 A, 200 480 V AC, 24 V DC, Taille..

DS7-34DSX032N0-D

134950

Y7-134950

EATON-MOELLER

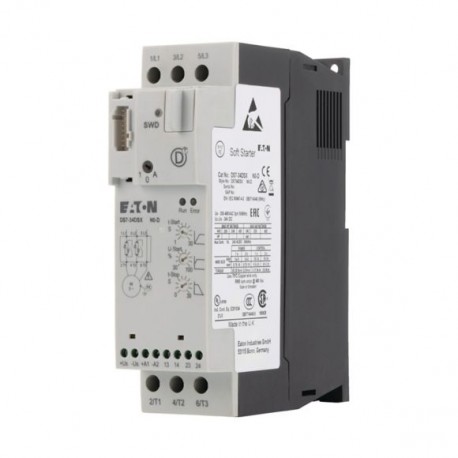

Démarreurs progressifs, 32 A, 200 - 480 V AC, 24 V DC, Taille: FS2, Interfaces de communication: SmartWire-DT

DS7-34DSX032N0-D

Eaton DS7 Soft starter, 32 A, 200 - 480 V AC, 24 V DC, Frame size: FS2, Communication Interfaces: SmartWire-DT

Démarreur progressif, Gamme de produits : SmartWire-DT esclave, Description : Avec contacts de dérivation internes, Fonction : Démarreurs progressifs pour charges triphasées, Tension d’alimentation secteur (50/60 Hz) : ULN= 200 - 480 V AC, Tension d’alimentation : Us= 24 V DC, Tension de commande : UC= 24 V DC, Puissance nominale du moteur (raccordement standard, In-Line) à 400 V, 50 Hz : P= 15 kW, à 460 V, 60 Hz : P= 25 CV, Courant nominal de fonctionnement AC-53 : Ie= 32 A, Tension nominale de fonctionnement : Ue= 200 V, 230 V, 400 V, 480 V, Connexion à SmartWire-DT : oui, Taille du cadre : FS2, Normes : IEC/EN 60947-4-2, UL 508, CSA22.2-14

Plus de détails


Appareillage industriel basse tension > Démarreur progressif

Démarreurs progressifs standard

* Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $497.54
Prix unitaire: $497.54

Quantité Prix
1+$497.54
2+$461.98
3+$459.42
4+$459.42
*Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton DS7 Soft starter
Catalog Number
134950
Model Code
DS7-34DSX032N0-D
EAN
4015081317653
Product Length/Depth
126 mm
Product Height
150 mm
Product Width
45 mm
Product Weight
0.4 kg
Certifications
IEC/EN 60947-4-2
UL 508
CSA-C22.2 No 14-05
CSA
CSA-C22.2 No 0-M91
GB 14048.6
UkrSEPRO
CSA22.2-14
UL
C-Tick
CE

Features & Functions

Fault memory
8 Faults
Fitted with:
Internal bypass
Internal bypass contacts
Functions
Current limitation, with PKE
Min. ramp time 1 s - fast switching (semiconductor contactor)
Suppression of closing transients
Soft start function
Potential isolation between power and control sections
Single direction
Suppression of DC components for motors
Interfaces
SmartWire-DT (built-in)

General

Class
Other
Connection to SmartWire-DT
Yes
Degree of protection
NEMA 1
IP20
Frame size
FS2
Mains voltage - max
480 V
Mains voltage - min
200 V
Overvoltage category
II
Pollution degree
2
Product category
SmartWire-DT slave
Radio interference class
Class B (EN 55011)
Suitable for
Branch circuits, (UL/CSA)
Type
Soft starter for three-phase loads
Voltage type
DC

Ambient conditions, mechanical

Mounting position
Vertical
Shock resistance
8 g, 11 ms, Mechanical
Vibration resistance
2M2 to EN 60721-3-2

Climatic environmental conditions

Altitude
Above 1000 m with 1 % derating per 100 m
Max. 2000 m
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-3

Main conducting paths

Overload cycle
AC-53a: 3 - 5: 75 - 10
Rated operational current (Ie) at AC-53
32 A
Rated operational voltage (Ue) - max
480 V
Rated operational voltage (Ue) - min
230 V
Short-circuit protection rating
3 x 170M1366, Type „2“ coordination (additional with the fuses for coordination type „1“), Main conducting paths
PKM0-32 (+ CL-PKZ0), Type “1” coordination, Main conducting paths
Supply frequency
50/60 Hz, fLN, Main circuit
Voltage rating - max
480 V

Motor rating

Assigned motor power at 200/208 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 220/230 V, 60 Hz, 3-phase
10 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
25 HP
Rated operational power at 220/230 V, 50 Hz
7.5 kW
Rated operational power at 400 V, 50 Hz
15 kW

Terminal capacities

Terminal capacity (flexible with ferrule)
2 x (0.5 - 0.75) mm², Control circuit cables
1 x (0.5 - 1.5) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
Terminal capacity (solid)
2 x (0.5 - 1.0) mm², Control circuit cables
1 x (0.75 - 16) mm², Main cables
2 x (0.75 - 10) mm², Main cables
1 x (0.5 - 2.5) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
18 - 6, Main cables
18 - 14, Control circuit cables
Terminal capacity (stranded)
1 x 16 mm², Main cables
Screwdriver size
PZ2, 1 x 6 mm, Terminal screw, Standard screwdriver
0.6 x 5.5 mm/1 x 6 mm, Terminal screws, Control circuit cables
Tightening torque
3.2 Nm
1.2 Nm, Screw terminals, Control circuit cables

Control circuit

Current consumption
50 mA, Control circuit, Regulator supply
1.6 mA, Control circuit, Digital inputs, External 24 V
Drop-out time
350 ms, Control circuit, Digital Inputs, DC operated
Drop-out voltage
0 - 3 V, DC operated
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
24 V
Rated control supply voltage (Us) at DC - min
24 V

Input/Output

Number of outputs
2 Relay Outputs (TOR, Ready)
Output voltage
250 V AC (relay outputs)
Protection
Finger and back-of-hand proof, Protection against direct contact
Rated control voltage (Uc)
24 V DC
24 V DC (-15 %/+10 %) or via SmartWire-DT
Rated operational current (Ie) at AC-11
1 A

Soft start function

Application
Current limitation
(0 - 8) x Ie, Soft start function
Delay time
0 - 30 s, Soft start function, Ramp times
Ramp/run-up time
1 - 30 s
Start voltage
Min. 30 %, Soft start function, Start voltage = turn-off voltage
Max. 100 %, Soft start function, Start voltage = turn-off voltage

Design verification

Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
1.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 134950 Appareillage industriel basse tension (EC000640)
Caractéristique Valeur
Courant de fonctionnement nominal Ie 40 °C Tu (EF007039) 32 A
Tension de fonctionnement nominale Ue (EF002418) 230 V
Puissance nominale de moteur triphasé, commutation standard, à 230 V (EF007053) 7.5 kW
Puissance nominale de moteur triphasé, commutation standard, à 400 V (EF007054) 15 kW
Puissance nominale de moteur triphasé, commutation étoile-triangle, à 230 V (EF007055) 0 kW
Puissance nominale de moteur triphasé, commutation étoile-triangle, à 400 V (EF007056) 0 kW
Fonction (EF000030) Sens de rotation unique
Shunt interne (EF009214) Oui
Avec affichage (EF000458) Non
Régulation du couple de rotation (EF009215) Non
Température ambiante nominale sans déclassement (EF007074) 40 °C
Tension d'alimentation de courant nominal à CA 50 Hz (EF003978) 0 V
Tension d'alimentation de courant nominal à CA 60 Hz (EF003979) 0 V
Tension d'alimentation de courant nominal CC (EF003980) 24 V
Type de tension d'actionnement (EF008242) CC
Protection intégrée contre les surcharges du moteur (EF007297) Non
Classe de déclenchement (EF006668) Autre
Classe de protection (IP) (EF005474) IP20
Classe de protection (NEMA) (EF011959) 1
