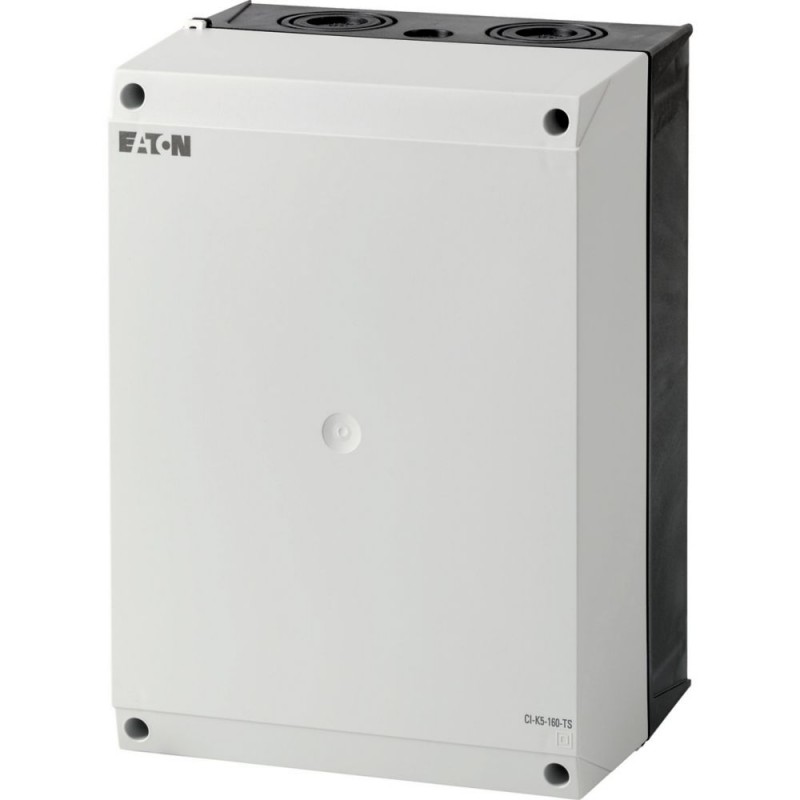

CI-K5-160-TS 206892 Y7-206892 EATON ELECTRIC Coffret isolant, HxLxP 280x200x160mm, +profilé-support Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

CI-K5-160-TS 206892 Y7-206892 EATON ELECTRIC Coffret isolant, HxLxP 280x200x160mm, +profilé-support

CI-K5-160-TS

206892

Y7-206892

EATON-MOELLER

Coffret isolant, HxLxP=280x200x160mm, +profilé-support

CI-K5-160-TS

Eaton Moeller® series CI-K Insulated enclosure, HxWxD=280x200x160mm, +mounting rail

Boîtier isotherme, Avec rail de montage selon IEC/EN 60715, (poids des composants montés max. 0,65 kg), Gamme de produits : Petits boîtiers CI-K, Boîtiers de base, Unité unique, Degré de protection : Avant IP65, IP65, avec entrée de câble traversante, Matériau : Polycarbonate renforcé de fibres de verre, Couleur : Base de boîtier RAL 9005, noir, Opérateur uniquement RAL 7035, gris clair, Description : Entrées de câbles métriques défonçables sur le dessus, fond et dans la plaque arrière, Entrée du câble de commande, Indicateur de lampe L‐... peut être monté dans la base défonçable M20/M25, Entrée de câble : version défonçable dure, Dimensions Largeur : 200 mm, Hauteur : 280 mm, Profondeur : 160 mm , Profondeur de montage pour rail de montage 7,5 mm Hauteur : 128 mm, Normes : IEC/EN 60529, DIN EN 62208
