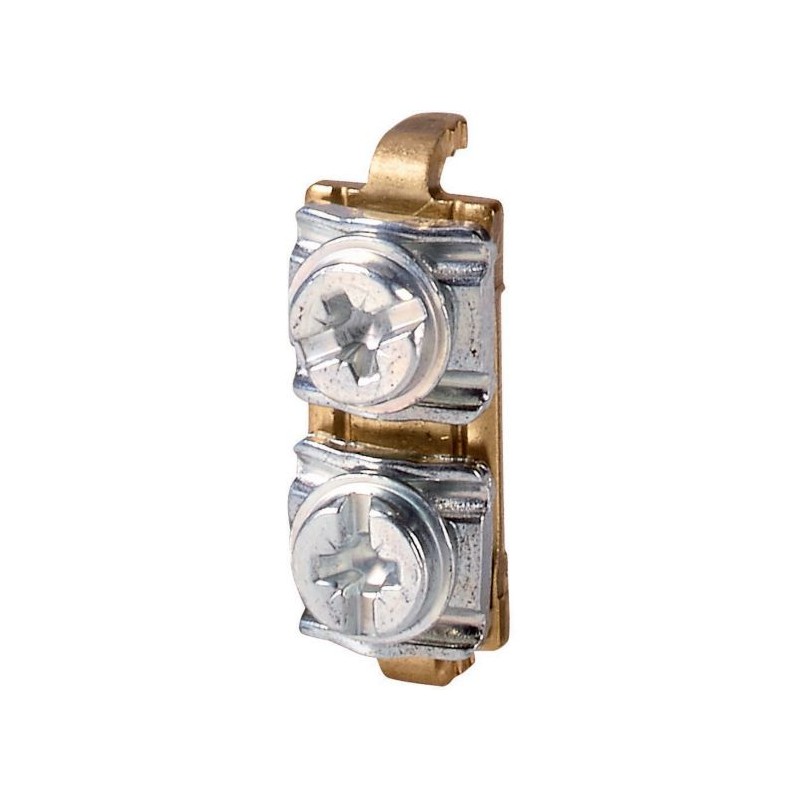

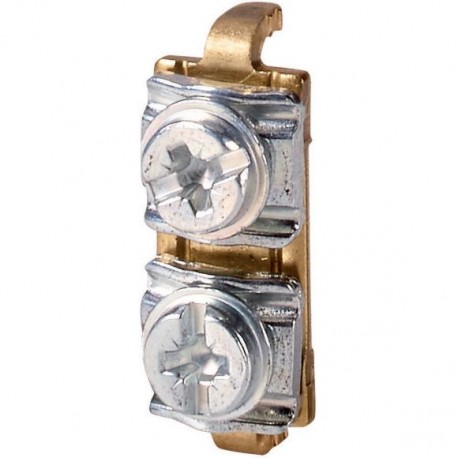

K-CI-K1/2 207451 Y7-207451 EATON ELECTRIC Borne N N, pour taille K1/2 Agrandir l'image
Les images sont à titre illustratif. Svp, révisez la fiche technique.

K-CI-K1/2 207451 Y7-207451 EATON ELECTRIC Borne N N, pour taille K1/2

K-CI-K1/2

207451

Y7-207451

EATON-MOELLER

20

Borne N N, pour taille K1/2

K-CI-K1/2

Eaton Moeller® series K-CI Neutral terminal, for size K1/2

Borne neutre, Pour le raccordement d’un 5ème conducteur, Pour utilisation avec : CI-K1-T0, CI-K2-T3, P1-.../I2

Plus de détails


Appareillage industriel basse tension > Accessoires pour connectique basse tension

Boites isolantes

Produit neuf dans son emballage d'origine avec toutes les garanties et les certifications émises par EATON-MOELLER

Prix total: $63.73
Prix unitaire: $3.19
Ce prix est par unité et montre la valeur nette (excluant les taxes indirectes le cas échéant) .

Si notre prix n'est pas le meilleur, demandez-nous un devis. Demander un devis

Related products

▲

Les plus vendus

▲

En savoir plus

▲


Spécifications générales

Product Name
Eaton Moeller® series K-CI Accessory Neutral terminal
Catalog Number
207451
Model Code
K-CI-K1/2
EAN
4015082074517
Product Length/Depth
27 mm
Product Height
13 mm
Product Width
10 mm
Product Weight
0.007 kg
Certifications
UL/CSA certification not required
Catalog Notes
Screwed onto support bosses in the enclosure base plate

Spécifications du produit

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Connector
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.8 W
Rated operational current for specified heat dissipation (In)
32 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
CI-K small enclosures
Functions
Connection of a 5th conductor
Terminal capacity
1 - 4 mm², flexible

ETIM for 207451 Appareillage industriel basse tension (EC002498)
Caractéristique Valeur
Type d'accessoire (EF000215) Connecteur
Accessoire (EF013236) Oui
Pièce détachée (EF013237) Non

Datasheet - PDF

▲
Titre: Taille: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
K-CI-K1/2 Y7-207451 207451 FR_207451.pdf 109 Kbytes K-CI-K1/2 Y7-207451 207451 FR_207451.pdf
