Photoelectrics, Fibre Optic Sensor
Plastic Fibres
Type PD 60 CNX 20 BP .. T
• Range: Fibre dependent
- Diffuse Reflective typ. 80 mm
- Through Beam typ. 200 mm
• Teach-In (keyboard or remote setup)
• Microprocessor controlled and EEPROM parameter storage
• Operational voltage 10 - 30 V DC
• Output 100 mA, NPN and PNP
• Light or dark switching selectable
• IP65 proctection
• Timer: ON-delay or OFF-delay
Product Description
Ordering Key
PD 60 CNX 20 BP M5 T

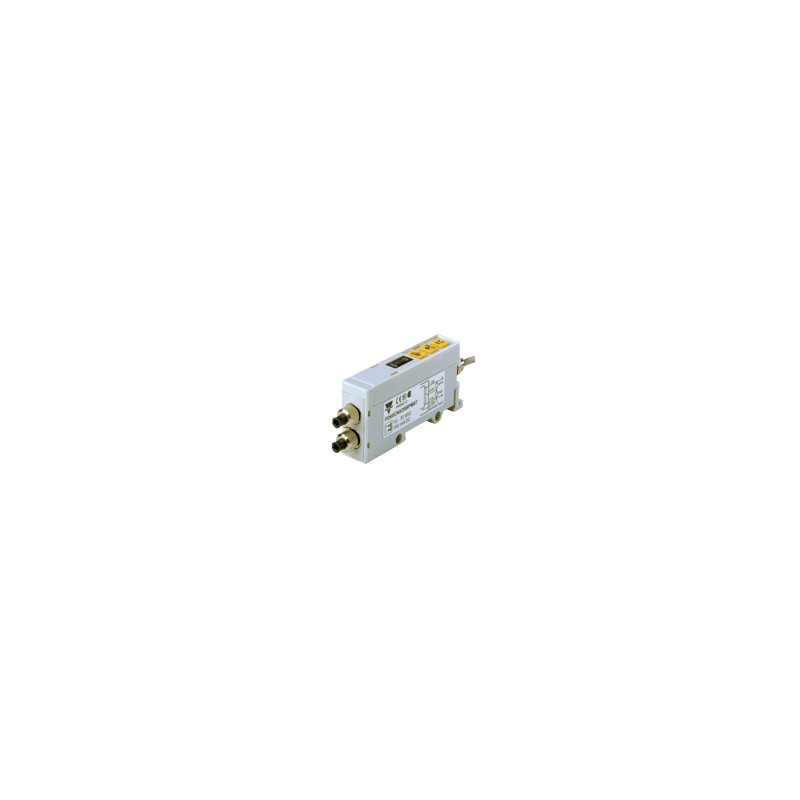

The PD60CNX20BP.. T is a fibre optic amplifier made spe- cific for plastic fibres. The sen- sor is microprocessor based and has a buildin pro- grammable functions such as Teach-In function for fast sensing distance optimising, NO or NC output, Time delay Onor OFF. The sensor output is build as a Push-pull output that performs both a NPN and PNP output which are fully protected against short-cir-
cuit, transients and wrong polarity. The sensor is build in a strong 13 x 30 x 60 mm polycarbonate housing for DIN-rail mounting.
The sensors are suitable for applications that require little space and high accuracy such as: Small part detection, tight locations, checking parts, counting, precise part positioning, material handling and assembly and robotics
Type
Housing style Housing size Housing material Not Used
Plastic fibres
Sensing distance cm
Output type
Output configuration Connection type Teach-In mode
Type Selection
Housing Range Ordering no. Ordering no.
W x H x D Sn (Fibre dependent) NPN and PNP cable NPN and PNP plug
Make or break switching Make or break switching
13 x 30 x 60 mm 80 mm diffuse mode PD 60 CNX 20 BP T PD 60 CNX 20 BP M5 T
200 mm through beam mode
Specifications
Rated operating distance (Sn) See optical fibre table
Diffuse mode Up to 80 mm
Through beam mode Up to 200 mm
Sensitivity
Teach-In Automatic threshold set-up
Manual fine tune Sensitivity increase or sen- sitivity decrease
Temperature drift < 0,4%/C°
Hysteresis (H)
Differential travel ≤ 5%
Rated operational volt. (UB ) 10 to 30 VDC (ripple included)
Ripple (Urpp ) ≤ 10%
Output current
Continuous (Ie) 100 mA Short-time (I) 100 mA
No load supply current (Io) ≤ 40 mA
Voltage drop (Ud )
IL = 100 mA ≤ 2 VDC IL = 10 mA ≤ 1 VDC
Remote input
ON ≤ 1.4 VDC OFF ≥ 3.0 VDC
Timer
Range programmable 0 to 5 s in 11 steps
First step 40 ms
Following step 500 ms
Protection Short-circuit, reverse pola- rity, transients
Light source GaAIAs, LED 660 nm Light type Red modulated Ambient light
Incandescent light 10’000 Lux
Sunlight 20’000 Lux
Specifications are subject to change without notice (15.06.2010) 1
