HR301CA230
LOVATO ELECTRIC
1

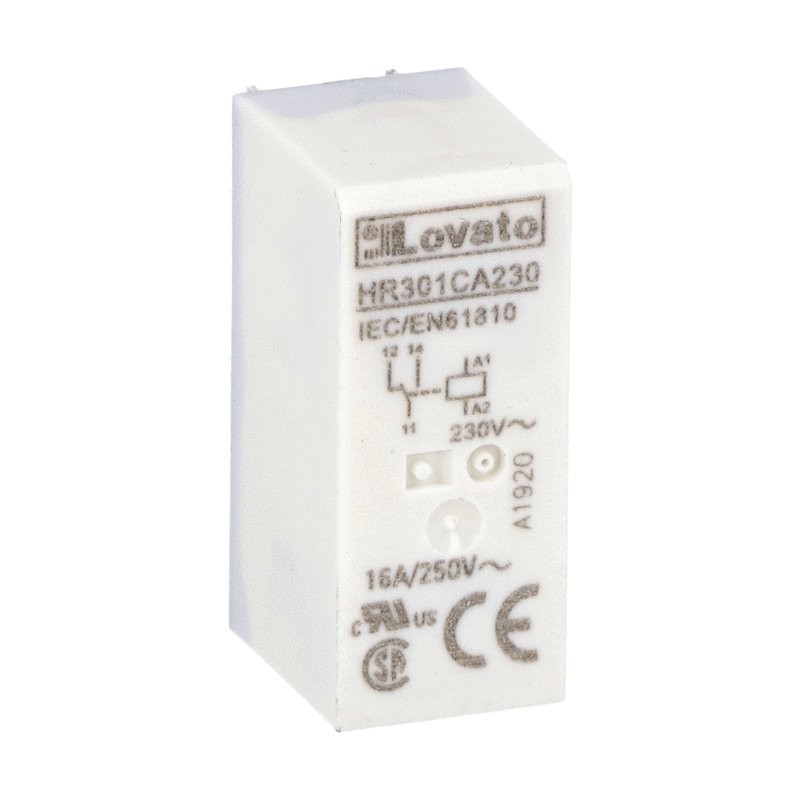

Relé miniatura 1 Conmutado 16A, 230VAC
Relé en miniatura, 230VAC, 16A, contacto 1C/O. Montaje en el zócalo 20 HR5XS2... (máx. 10A)
Relés industriales
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Gracias por su interés en nuestros productos, esperamos que el plazo indicado sea conveniente para usted.
Durante la tramitación del pedido podrá seleccionar el tipo de envío que mejor se adapte a sus necesidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Código de pedido | HR301CA230 |
Peso [g] | 15.51 |
Unidades de embalaje | 20 |
Cantidad de pedido multi-embalaje | 20 |
Dimensiones de embalaje [mm] | 315X260X240 |
Volumen [cm³] | 19.656 |
Código de barras [EAN13] | 8013975233313 |
Código HS | 85365080 |
Product designation | MINIATURE RELAYS | |||
Product type designation | HR301C | |||
Contact characteristics | ||||
Contact configuration | 1 C/O | |||
Rated insulation voltage Ui IEC/EN | V | 250 | ||
Rated impulse withstand voltage Uimp | kV | 6 | ||
IEC Conventional free air thermal current Ith | A | 16 | ||
Maximum instantaneous current | A | 60 | ||
Rated current (In) | A | 16 | ||
Relay control voltage | V | 230VAC | ||
Max contrallable power in | ||||
AC-1 | W | 4000 | ||
AC-15 | VA | 300 | ||
Rated operating power AC-1 | ||||
VA | 4000 | |||
Rated operating power AC-15 | ||||
230 VAC | VA | 300 | ||
Single-phase motor control | ||||
230VAC | kW | 0.4 | ||
Rated operating current DC-1 | ||||
30V | A | 12 | ||
110V | A | 0.3 | ||
220V | A | 0.1 | ||
Minimum switching load | V / mA | 5 / 100 | ||
Contact impedance | mΩ | 100 | ||
Contact material | AgSnO2 | |||
Operating times | ||||
Closing | ms | 10 | ||
Opening | ms | 5 | ||
Operations | ||||
Mechanical life | cycles | 10000000 | ||
Electrical life AC1 | cycles | 50000 | ||
Coil characteristics | ||||
Average coil consumption AC at 20°C | VA | 0.9 | ||
Average coil consumption DC at 20°C | W | 0.45 | ||
Operating range | ||||
Closing | % Un | 70…110 | ||
Opening | % Un | 20…55 | ||
Maximum cycle frequency | cycles/h | 3600 | ||
Mechanical features | ||||
Max socket terminal tightening torque | Nm | 0.6 | ||
Socket screw tightening tool (cross / flat blade) | PH1 / 4.5mm | |||
Conductor section | ||||
AWG/Kcmil | ||||
min | 20 | |||
max | 14 | |||
IEC | ||||
min | mm² | 0.5 | ||
max | mm² | 2.5 | ||
Operating position | ||||
normal | Any | |||
Fixing | On 35mm DIN rail and with screw | |||
Ambient conditions | ||||
Temperature | ||||
Operating temperature | ||||
min | °C | -40 | ||
max | °C | +85 | ||
Storage temperature | ||||
min | °C | -40 | ||
max | °C | +85 | ||
Other features | ||||
Indication | No | |||
Mechanical contact position indicator | No | |||
Mechanical test actuator | No | |||
ETIM classification | ||||
ETIM 8.0 | EC001437 - Switching relay |
