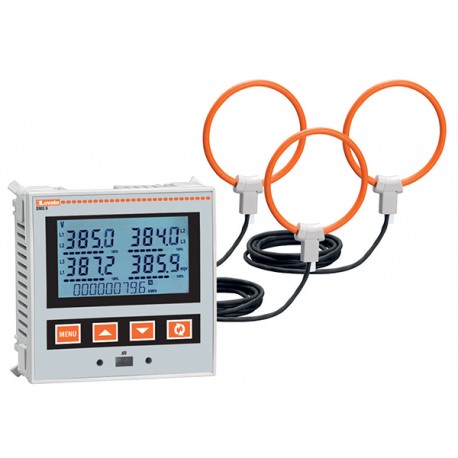

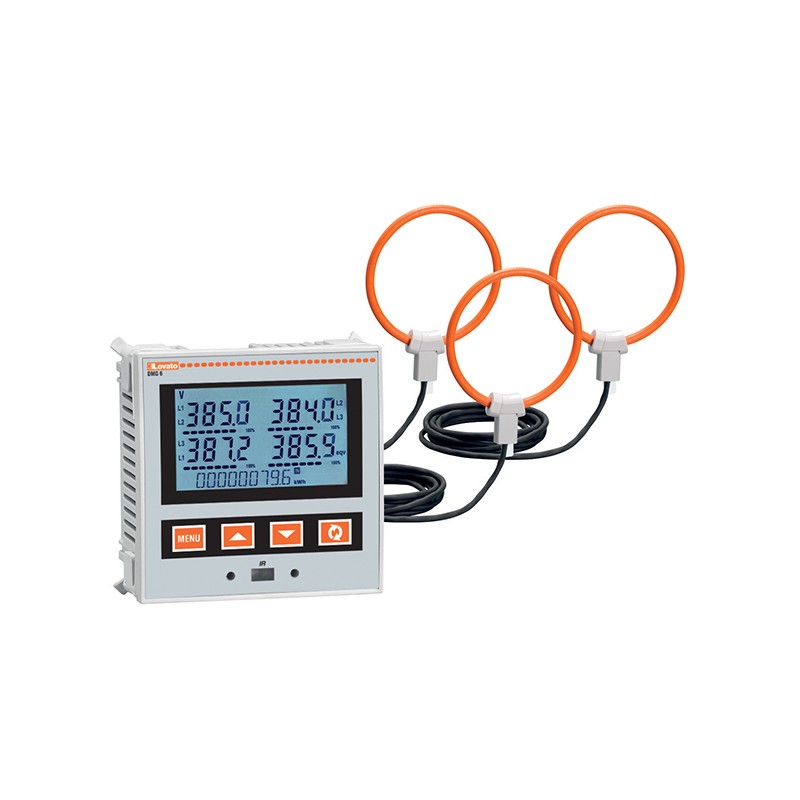

DMG611R0500 LOVATO Multímetro digital LDC con icono, con RS485 + 3 bobinas Rogowski incluidas, corriente máx..
DMG611R0500
LOVATO ELECTRIC
Multímetro digital LDC con icono, con RS485 + 3 bobinas Rogowski incluidas, corriente máxima de 500A
Multímetro LCD de montaje empotrado, ampliable, pantalla LCD con icono de retroiluminación, 72X46mm / 2.8X1.8", fuente auxiliar 100-440VAC / 120-250VDC, puerto óptico frontal y puertos RS485. Lectura de corriente a través de 3 bobinas Rogowski incluidas, corriente máxima 500A
Instrumentos de Medida y Transformadores de Intensidad - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más Información
▲| Código de pedido | DMG611R0500 |
| Peso [g] | 800 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 1 |
| Dimensiones de embalaje [mm] | 245X168X105 |
| Volumen [cm³] | 4321 |
| Código de barras [EAN13] | 8013975238370 |
| Código HS | 90303100 |
EAC
IEC/EN 61010-1
IEC/EN 61010-2-030
IEC/EN 61000-6-2
IEC/ EN 61000-6-3
| Product designation | Flush-mount LCD multimeters. expandable | |||
| Product type designation | DMG611 | |||
| Type | Three-phase + neutral | |||
| Auxiliary supply Us | ||||
| Auxiliary rated supply voltage AC | VAC | 100…440 | ||
| Auxiliary rated supply voltage DC | VDC | 120…250 | ||
| Auxiliary operating voltage range | ||||
| AC | ||||
| min | VAC | 90 | ||
| Max | VAC | 484 | ||
| DC | ||||
| min | VDC | 93.5 | ||
| Max | VDC | 300 | ||
| Operational frequency | ||||
| min | Hz | 45 | ||
| max | Hz | 66 | ||
| Power consumption | ||||
| Max | VA | 9.5 | ||
| Power dissipation Max | W | 3.5 | ||
| Measuring voltage inputs | ||||
| Rated voltage (Ue) | ||||
| phase-phase | VAC | 600 | ||
| phase-neutral | VAC | 300 | ||
| Operating voltage range | ||||
| phase-phase | VAC | 50…720 | ||
| phase-neutral | VAC | 30…360 | ||
| Voltage inputs operational frequency | ||||
| min | Hz | 45 | ||
| max | Hz | 66 | ||
| Voltage inputs measurement method | True RMS | |||
| Connection method | Single. two. three-phase with or without neutral. balanced three-phase system | |||
| Current inputs | ||||
| Rated current (Ie) | A | 1A/5A | ||
| Current reading through Rogowski coils | A | 20…6300 | ||
| Measurement range | 0.01…1.2 / 0.01…6 | |||
| Measurement method | TRMS | |||
| Overload capacity | +20% Ie by external CT with 5A secondary | |||
| Overload peak | A | 50A for 1s | ||
| Accuracy | ||||
| Measurement conditions (T +23°C ±1°C / Rel. Humidity 45 ±15% R.H.) | ||||
| VLN voltage | ±0.5% | |||
| VLL voltage | ±0.5% | |||
| current | ±0.5% | |||
| frequency | ±0.05% | |||
| active power | ±0.5% | |||
| active energy | Class 1 (IEC/EN 62053-21) | |||
| reactive energy | Class 2 (IEC/EN 62053-23) | |||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 600 | ||
| Rated impulse withstand voltage Uimp | kV | 9.5 | ||
| Operating frequency withstand voltage | kV | 5.2 | ||
| Mechanical features | ||||
| Housing type | Polyamide | |||
| Terminals type | Removable | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| min | AWG | 24 | ||
| Max | AWG | 12 | ||
| Tightening torque (Max) | ||||
| Nm | 0.5 | |||
| lbin | 4.5 | |||
| Fixing | Flush-mounting | |||
| Weight | g | 350 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +60 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <90 | ||
| Maximum Pollution degree | 2 | |||
| Protection degree | IP54 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002301 - Multifunction measuring instrument | |||
