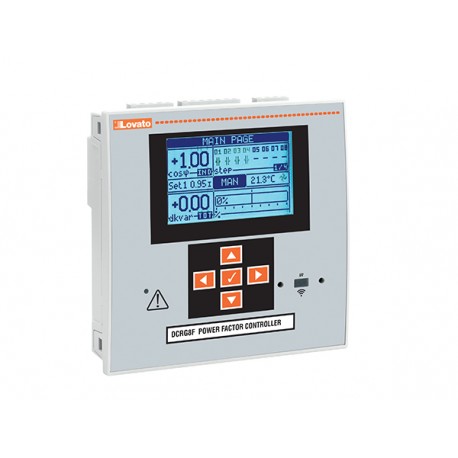

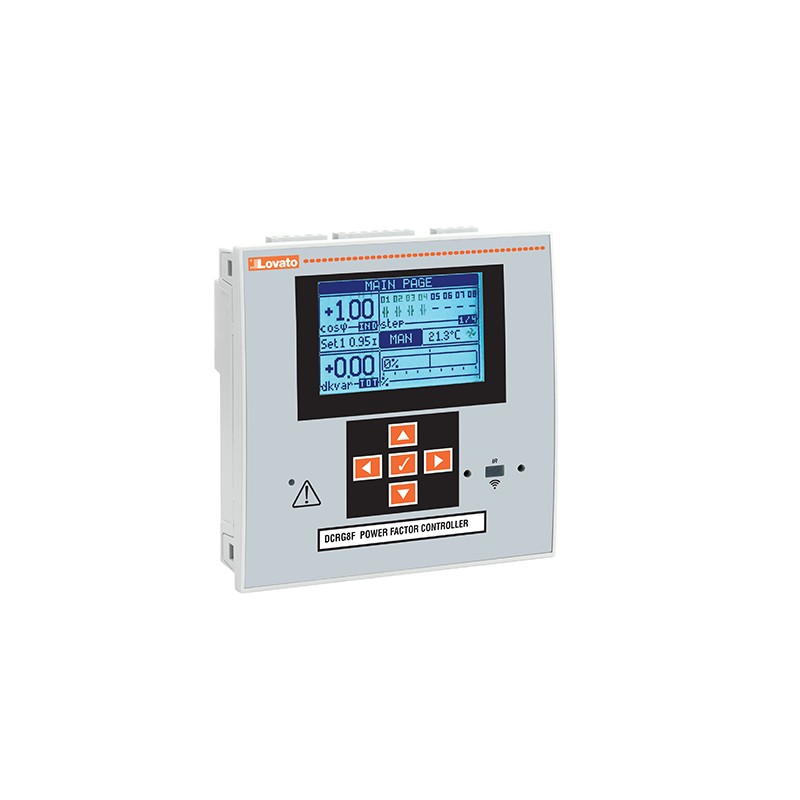

DCRG8F LOVATO Regulador de factor de potencia 8 pasos estaticos 220-480V 144X144
DCRG8F
LOVATO ELECTRIC
Regulador de factor de potencia 8 pasos estaticos 220-480V 144X144
Controlador automático dinámico de factor de potencia, 8 pasos estáticos, ampliable, fuente auxiliar 100...415VAC
Reguladores de Factor de Potencia y Módulos de Tiristores - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más vendidos
▲Más Información
▲| Código de pedido | DCRG8F |
| Peso [g] | 680 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 1 |
| Dimensiones de embalaje [mm] | 185X176X084 |
| Volumen [cm³] | 2735.04 |
| Código de barras [EAN13] | 8013975234655 |
| Código HS | 85389091 |
Dimensiones
Esquemas eléctricos
Homologaciones:
cULus
EAC
RCM
cULus
EAC
RCM
Conformidad:
IEC/EN 61010-1
IEC/EN 61000-6-2
IEC/EN 61000-6-4
UL508
CSA C22.2 N°14
IEC/EN 61010-1
IEC/EN 61000-6-2
IEC/EN 61000-6-4
UL508
CSA C22.2 N°14
| Product designation | Automatic dynamic power factor controller, 8 static steps, graphic display | |||
| Product type designation | DCRG8F | |||
| Auxiliary supply | ||||
| Rated auxiliary supply voltage Us | ||||
| AC | ||||
| min | VAC | 100 | ||
| Max | VAC | 415 | ||
| DC | ||||
| min | VDC | 110 | ||
| Max | VDC | 250 | ||
| Auxiliary operating range | 90…484VAC / 93.5…300VDC | |||
| Auxiliary rated frequency | Hz | 50/60 ±10% | ||
| Power consumption Max | VA | 27 (with 4 EXP modules) | ||
| Power dissipation Max | W | 10.5 (with 4 EXP modules), 2.5 (with no EXP modules) | ||
| Immunity time for microbreakings | ms | ≥35ms (110VAC); ≥80ms (220…415VAC) | ||
| Voltage inputs | ||||
| Rated voltage (Ue) | VAC | 600VAC L-L (rated max) | ||
| Operating range | 50…720VAC L-L (415VAC L-N) | |||
| Frequency range | Hz | 45…65 Hz / 360…440 Hz | ||
| Type of measure | True RMS value | |||
| No-voltage release | ms | ≥8 | ||
| Measurement input impedance | kΩ | >1.10MΩ L-L, >0.55MΩ L-N | ||
| Type of connection | Single phase, two phase, three phase with or without neutral or balanced three phase system | |||
| Current inputs | ||||
| Number of current input | Nr. | 3 | ||
| Type of input | Shunt supplied by external current transformer (low voltage). Max 5A | |||
| Measurement range | 0.025...6A~ for 5A scale; 0.025...1.2A~ for 1A scale | |||
| Measurement method | True RMS value | |||
| Constant overload | Ie | 1.2 Ie | ||
| Overload peak | A | 50A for 1s | ||
| Burden per phase | W | <0.6VA | ||
| Measurement data | ||||
| Type of voltage and current measurement | True RMS value | |||
| Power factor adjustment | 0.5ind…0.5cap. | |||
| Type of temperature sensor | Internal + PT100 with EXP1004 | |||
| Temperature measurement range | °C | 0…+212 | ||
| Relay outputs | ||||
| Number of relay output | Nr. | 0 (up to 10 with EXP10 06 - EXP10 07) | ||
| UL/CSA and IEC/EN 60947-5-1 designation | B300 | |||
| Static Outputs | ||||
| Number of static output | 8 (up to 24 with EXP1001) | |||
| Rated current | 120mA max 40VDC/30VAC | |||
| Insulations | ||||
| Rated insulation voltage Ui IEC/EN | V | 600 | ||
| Rated impulse withstand voltage Uimp | kV | 9.5 | ||
| Operating frequency withstand voltage | kV | 5.2 | ||
| Connections | ||||
| Type of terminal | Plug-in, removable | |||
| Conductor cross section | ||||
| min | mm² | 0.2 | ||
| Max | mm² | 2.5 | ||
| min | AWG | 24AWG (18AWG according to UL/CSA) | ||
| Max | AWG | 12 | ||
| Tightening torque (Max) | ||||
| Nm | 0.56 | |||
| lbin | 5Ibin (4-5Ibin according to UL/CSA) | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +70 | ||
| Storage temperature | ||||
| min | °C | -30 | ||
| max | °C | +80 | ||
| Relative humidity | % | <80% | ||
| Maximum Pollution degree | 2 | |||
| Overvoltage category | 3 | |||
| Measurement category | III | |||
| Climatic sequence | Z/ABDM (IEC/EN 60068-2-61) | |||
| Shock resistance | 15g (IEC/EN 60068-2-27) | |||
| Vibration resistance | 0.7g (IEC/EN 60068-2-6) | |||
| Housing | ||||
| Execution | Flush mount | |||
| Material | Polycarbonate | |||
| Mounting | Flush-mount 144x144mm (5.67x5.67”) | |||
| Degree of protection | IP65 on front, IP20 terminals | |||
| Dimensions (W x H x D) | mm | 144 x 144 x 53.2 | ||
| Weight | g | 980 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC001443 - Effective power (cos phi) monitoring relay | |||
Datasheet - PDF
