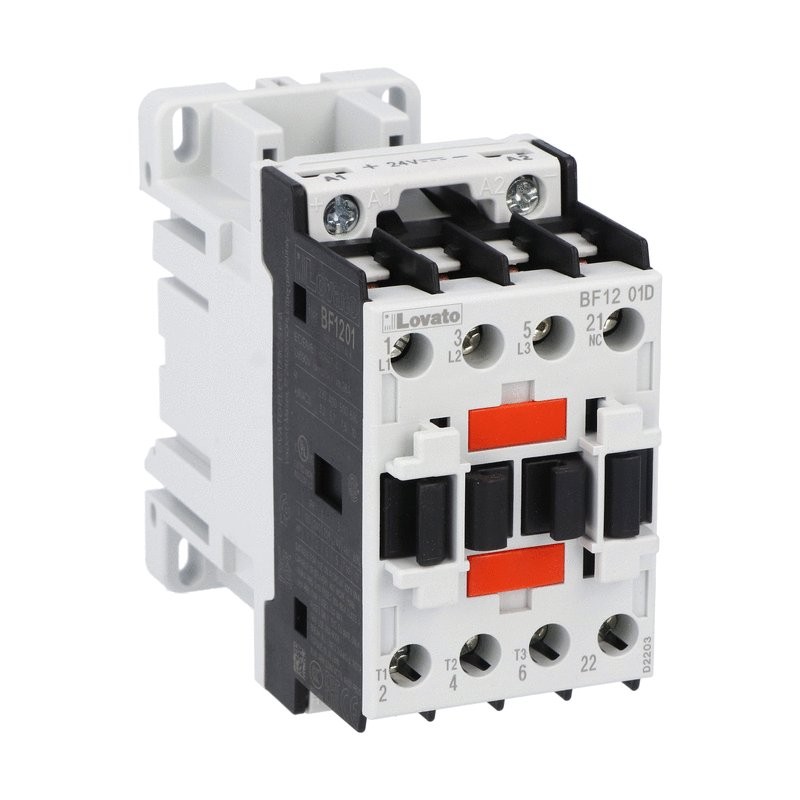

BF1201D048 LOVATO Contactor Tripolar 12A AC3 1 NC Bobina 48V DC
BF1201D048
LOVATO ELECTRIC
Contactor Tripolar 12A AC3 1 NC Bobina 48V DC
CONTACTOR DE TRES POLOS, CORRIENTE DE FUNCIONAMIENTO IEC IE (AC3) = 12A, BOBINA DE CC, 48VDC, CONTACTO AUXILIAR DE 1NC
Contactores Industriales y accesorios - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más vendidos
▲Más Información
▲| Código de pedido | BF1201D048 |
| Peso [g] | 494 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 1 |
| Dimensiones de embalaje [mm] | 093X048X110 |
| Volumen [cm³] | 491.04 |
| Código de barras [EAN13] | 8013975166130 |
| Código HS | 85365080 |
Dimensiones
Esquemas eléctricos
Homologaciones:
CCC
EAC
cULus
CCC
EAC
cULus
Conformidad:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BF12 | |||
| Contact characteristics | ||||
| Number of poles | Nr. | 3 | ||
| Rated insulation voltage Ui IEC/EN | V | 690 | ||
| Rated impulse withstand voltage Uimp | kV | 6 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 28 | ||
| Operational current Ie | ||||
| AC-1 (≤40°C) | A | 28 | ||
| AC-1 (≤55°C) | A | 23 | ||
| AC-1 (≤70°C) | A | 20 | ||
| AC-3 (≤440V ≤55°C) | A | 12 | ||
| AC-4 (400V) | A | 7.9 | ||
| Rated operational power AC-3 (T≤55°C) | ||||
| 230V | kW | 3.2 | ||
| 400V | kW | 5.7 | ||
| 415V | kW | 6.2 | ||
| 440V | kW | 6.2 | ||
| 500V | kW | 7.5 | ||
| 690V | kW | 10 | ||
| Rated operational power AC-1 (T≤40°C) | ||||
| 230V | kW | 10 | ||
| 400V | kW | 18 | ||
| 500V | kW | 23 | ||
| 690V | kW | 32 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
| ≤24V | A | 17 | ||
| 48V | A | 15 | ||
| 75V | A | 13 | ||
| 110V | A | 6 | ||
| 220V | A | – | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
| ≤24V | A | 20 | ||
| 48V | A | 20 | ||
| 75V | A | 18 | ||
| 110V | A | 13 | ||
| 220V | A | 1 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
| ≤24V | A | 22 | ||
| 48V | A | 22 | ||
| 75V | A | 20 | ||
| 110V | A | 16 | ||
| 220V | A | 11 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
| ≤24V | A | 20 | ||
| 48V | A | 20 | ||
| 75V | A | 20 | ||
| 110V | A | 16 | ||
| 220V | A | 12 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
| ≤24V | A | 12 | ||
| 48V | A | 11 | ||
| 75V | A | 10 | ||
| 110V | A | 2 | ||
| 220V | A | – | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
| ≤24V | A | 15 | ||
| 48V | A | 13 | ||
| 75V | A | 12 | ||
| 110V | A | 8 | ||
| 220V | A | 2 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
| ≤24V | A | 18 | ||
| 48V | A | 18 | ||
| 75V | A | 15 | ||
| 110V | A | 12 | ||
| 220V | A | 6 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
| ≤24V | A | 15 | ||
| 48V | A | 15 | ||
| 75V | A | 15 | ||
| 110V | A | 16 | ||
| 220V | A | 7 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 150 | ||
| Protection fuse | ||||
| gG (IEC) | A | 32 | ||
| aM (IEC) | A | 12 | ||
| Making capacity (RMS value) | A | 120 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 96 | ||
| 500V | A | 96 | ||
| 690V | A | 94 | ||
| Resistance per pole (average value) | mΩ | 2.5 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 2 | ||
| AC3 | W | 0.4 | ||
| Tightening torque for terminals | ||||
| min | Nm | 1.5 | ||
| max | Nm | 1.8 | ||
| min | Ibin | 1.1 | ||
| max | Ibin | 1.5 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | 0.8 | ||
| max | Ibin | 0.74 | ||
| Max number of wires simultaneously connectable | Nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1 | ||
| max | mm² | 6 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1 | ||
| max | mm² | 4 | ||
| Flexible with insulated spade lug conductor section | ||||
| min | mm² | 1 | ||
| max | mm² | 4 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 when wired | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 494 | ||
| Auxiliary contact characteristics | ||||
| Thermal current Ith | A | 10 | ||
| IEC/EN 60947-5-1 designation | A600 - P600 | |||
| Operating current AC15 | ||||
| 230V | A | 3 | ||
| 400V | A | 1.9 | ||
| 500V | A | 1.4 | ||
| Operating current DC12 | ||||
| 110V | A | 5.7 | ||
| Operating current DC13 | ||||
| 24V | A | 5.7 | ||
| 48V | A | 2.9 | ||
| 60V | A | 2.3 | ||
| 110V | A | 1.25 | ||
| 125V | A | 1.1 | ||
| 220V | A | 0.55 | ||
| 600V | A | 0.2 | ||
| Operations | ||||
| Mechanical life | cycles | 20000000 | ||
| Electrical life | cycles | 2000000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | cycles | 2000000 | ||
| mechanical load | cycles | 20000000 | ||
| Mirror contats according to IEC/EN 609474-4-1 | yes | |||
| EMC compatibility | yes | |||
| DC coil operating | ||||
| DC rated control voltage | V | 48 | ||
| DC operating voltage | ||||
| pick-up | ||||
| min | %Us | 70 | ||
| max | %Us | 125 | ||
| drop-out | ||||
| min | %Us | 10 | ||
| max | %Us | 40 | ||
| Average coil consumption ≤20°C | ||||
| in-rush | W | 5.4 | ||
| holding | W | 5.4 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 3600 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 8 | ||
| max | ms | 24 | ||
| Opening NO | ||||
| min | ms | 10 | ||
| max | ms | 20 | ||
| Closing NC | ||||
| min | ms | 14 | ||
| max | ms | 28 | ||
| Opening NC | ||||
| min | ms | 7 | ||
| max | ms | 18 | ||
| in DC | ||||
| Closing NO | ||||
| min | ms | 54 | ||
| max | ms | 66 | ||
| Opening NO | ||||
| min | ms | 14 | ||
| max | ms | 17 | ||
| Closing NC | ||||
| min | ms | 24 | ||
| max | ms | 30 | ||
| Opening NC | ||||
| min | ms | 47 | ||
| max | ms | 57 | ||
| UL technical data | ||||
| Full-load current (FLA) for three-phase AC motor | ||||
| at 480V | A | 11 | ||
| at 600V | A | 11 | ||
| Yielded mechanical performance | ||||
| for single-phase AC motor | ||||
| 110/120V | HP | 1 | ||
| 230V | HP | 2 | ||
| for three-phase AC motor | ||||
| 200/208V | HP | 5 | ||
| 220/230V | HP | 5 | ||
| 460/480V | HP | 7.5 | ||
| 575/600V | HP | 10 | ||
| General USE | ||||
| Contactor | ||||
| AC current | A | 28 | ||
| Auxiliary contacts | ||||
| AC voltage | V | 600 | ||
| AC current | A | 10 | ||
| DC voltage | V | 250 | ||
| DC current | A | 1 | ||
| Short-circuit protection fuse, 600V | ||||
| High fault | ||||
| Short circuit current | kA | 100 | ||
| Fuse rating | A | 30 | ||
| Fuse class | J | |||
| Standard fault | ||||
| Short circuit current | kA | 5 | ||
| Fuse rating | A | 70 | ||
| Contact rating of auxiliary contacts according to UL | A600 - P600 | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | 80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000066 - Power contactor, AC switching | |||
