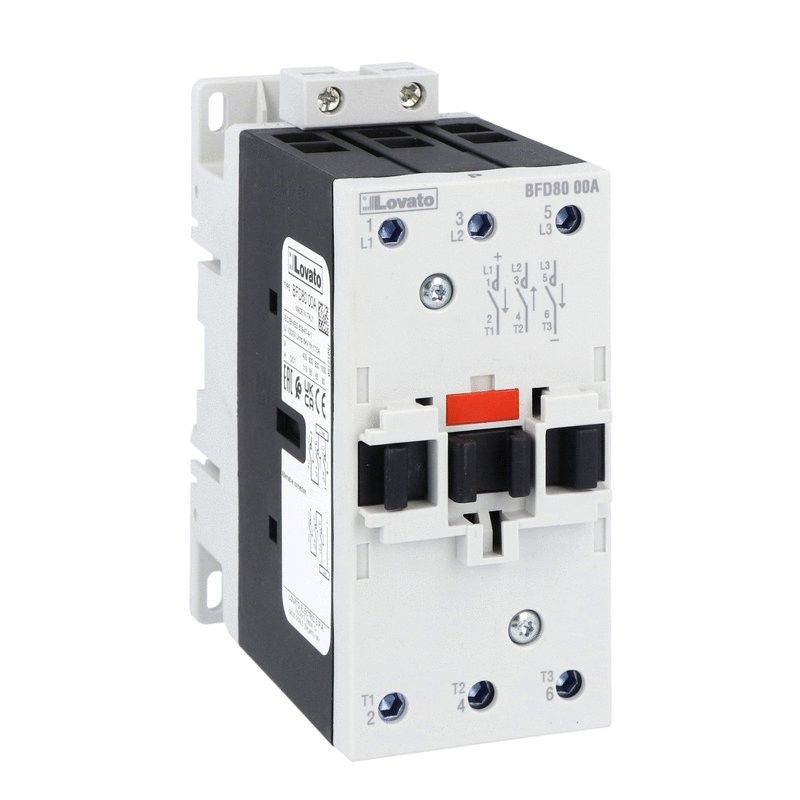

BFD8000A110 LOVATO Contactor Tetrapolar 80A DC1 600V Bobina 110V AC
BFD8000A110
LOVATO ELECTRIC
Contactor Tetrapolar 80A DC1 600V Bobina 110V AC
CONTACTOR DE TRES POLOS, 60A/1000V DC1, BOBINA DE CA, 110VAC 50/60HZ
Contactores Industriales y accesorios - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más vendidos
▲Más Información
▲| Código de pedido | BFD8000A110 |
| Peso [g] | 1020 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 1 |
| Dimensiones de embalaje [mm] | 141X063X120 |
| Volumen [cm³] | 1066 |
| Código de barras [EAN13] | 8013975270875 |
| Código HS | 85365080 |
Dimensiones
Esquemas eléctricos
Homologaciones:
Conformidad:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1.
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1.
| Product designation | Power contactor | |||
| Product type designation | BFD80 | |||
| Contact characteristics | ||||
| Number of poles | Nr. | 3 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 115 | ||
| Operational current Ie | ||||
| AC-1 (≤55°C) | A | 130 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
| 400V | A | 100 | ||
| 600V | A | 100 | ||
| 800V | A | 76 | ||
| 1000V | A | 60 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 640 | ||
| Protection fuse | ||||
| gG (IEC) | A | 125 | ||
| aM (IEC) | A | 80 | ||
| Resistance per pole (average value) | mΩ | 0.6 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 7.9 | ||
| Tightening torque for terminals | ||||
| min | Nm | 4 | ||
| max | Nm | 5 | ||
| min | Ibin | 2.95 | ||
| max | Ibin | 3.69 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | 0.8 | ||
| max | Ibin | 0.74 | ||
| Max number of wires simultaneously connectable | Nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 35 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 35 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 front | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 1240 | ||
| Operations | ||||
| Mechanical life | cycles | 15000000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| mechanical load | cycles | 15000000 | ||
| EMC compatibility | yes | |||
| AC coil operating | ||||
| Rated AC voltage at 50/60Hz | V | 110 | ||
| AC operating voltage | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| pick-up | ||||
| min | %Us | 80 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 20 | ||
| max | %Us | 55 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 85 | ||
| max | %Us | 110 | ||
| drop-out | ||||
| min | %Us | 20 | ||
| max | %Us | 55 | ||
| AC average coil consumption at 20°C | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| in-rush | VA | 210 | ||
| holding | VA | 15 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| in-rush | VA | 195 | ||
| holding | VA | 13 | ||
| of 60Hz coil powered at 60Hz | ||||
| in-rush | VA | 210 | ||
| holding | VA | 15 | ||
| Dissipation at holding ≤20°C 50Hz | W | 5 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 3600 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 12 | ||
| max | ms | 28 | ||
| Opening NO | ||||
| min | ms | 8 | ||
| max | ms | 22 | ||
| in DC | ||||
| Closing NO | ||||
| min | ms | 40 | ||
| max | ms | 85 | ||
| Opening NO | ||||
| min | ms | 20 | ||
| max | ms | 55 | ||
| UL technical data | ||||
| General USE | ||||
| Contactor | ||||
| AC current | A | 115 | ||
| 4 poles in series DC1 | ||||
| 600V | A | 100 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -50 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -60 | ||
| max | °C | 80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC002552 - Power contactor, DC switching | |||
Datasheet - PDF
