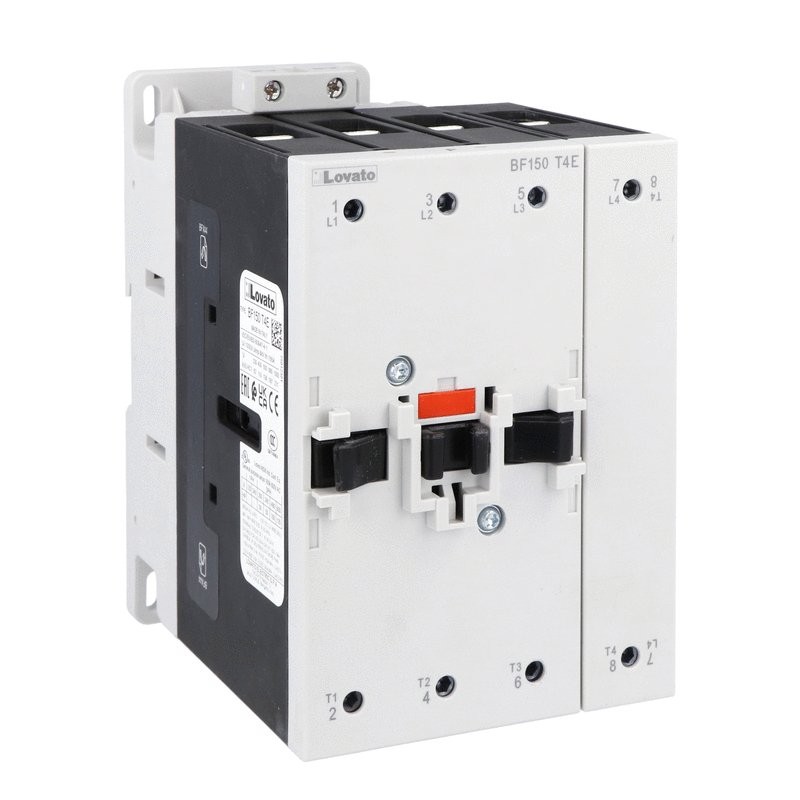

BF150T4E230 LOVATO Contactor Tetrapolar 165A AC1 Bobina 100…250V AC/DC
BF150T4E230
LOVATO ELECTRIC
Contactor Tetrapolar 165A AC1 Bobina 100…250V AC/DC
Contactor de cuatro polos, corriente de funcionamiento IEC Ith (AC1) = 160A, bobina AC/DC, 230VAC/DC
Contactores Industriales y accesorios - LOVATO ELECTRIC
* Producto nuevo en su embalaje original con todas las garantías y certificaciones de LOVATO ELECTRIC
Más vendidos
▲Más Información
▲| Código de pedido | BF150T4E230 |
| Peso [g] | 2780 |
| Unidades de embalaje | 1 |
| Cantidad de pedido multi-embalaje | 1 |
| Dimensiones de embalaje [mm] | 173X082X145 |
| Volumen [cm³] | 2056 |
| Código de barras [EAN13] | 8013975241660 |
| Código HS | 85365080 |
Dimensiones
Homologaciones:
CCC
EAC
cULus
CCC
EAC
cULus
Conformidad:
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
CSA C22.2 n° 60947-1
CSA C22.2 n° 60947-4-1
| Product designation | Power contactor | |||
| Product type designation | BF150 | |||
| Contact characteristics | ||||
| Number of poles | Nr. | 4 | ||
| Rated insulation voltage Ui IEC/EN | V | 1000 | ||
| Rated impulse withstand voltage Uimp | kV | 8 | ||
| Operational frequency | ||||
| min | Hz | 25 | ||
| max | Hz | 400 | ||
| IEC Conventional free air thermal current Ith | A | 165 | ||
| Operational current Ie | ||||
| AC-1 (≤40°C) | A | 165 | ||
| AC-1 (≤55°C) | A | 135 | ||
| AC-1 (≤70°C) | A | 118 | ||
| AC-3 (≤440V ≤55°C) | A | 150 | ||
| AC-4 (400V) | A | 70 | ||
| Rated operational power AC-1 (T≤40°C) | ||||
| 230V | kW | 62 | ||
| 400V | kW | 110 | ||
| 500V | kW | 136 | ||
| 690V | kW | 187 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 165 | ||
| 75V | A | 150 | ||
| 110V | A | 10 | ||
| 220V | A | – | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 165 | ||
| 75V | A | 165 | ||
| 110V | A | 150 | ||
| 220V | A | 14 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 165 | ||
| 75V | A | 165 | ||
| 110V | A | 160 | ||
| 220V | A | 150 | ||
| IEC max current Ie in DC1 with L/R ≤ 1ms with 4 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 165 | ||
| 75V | A | 165 | ||
| 110V | A | 165 | ||
| 220V | A | 165 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 1 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 60 | ||
| 75V | A | 44 | ||
| 110V | A | 6 | ||
| 220V | A | – | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 2 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 82 | ||
| 75V | A | 70 | ||
| 110V | A | 80 | ||
| 220V | A | 7 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 3 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 195 | ||
| 75V | A | 110 | ||
| 110V | A | 120 | ||
| 220V | A | 120 | ||
| IEC max current Ie in DC3-DC5 with L/R ≤ 15ms with 4 poles in series | ||||
| ≤24V | A | 165 | ||
| 48V | A | 130 | ||
| 75V | A | 130 | ||
| 110V | A | 150 | ||
| 220V | A | 150 | ||
| Short-time allowable current for 10s (IEC/EN60947-1) | A | 1200 | ||
| Protection fuse | ||||
| gG (IEC) | A | 250 | ||
| aM (IEC) | A | 160 | ||
| Making capacity (RMS value) | A | 1500 | ||
| Breaking capacity at voltage | ||||
| 440V | A | 1200 | ||
| 500V | A | 1025 | ||
| 690V | A | 905 | ||
| Resistance per pole (average value) | mΩ | 0.45 | ||
| Power dissipation per pole (average value) | ||||
| Ith | W | 12 | ||
| AC3 | W | 10.1 | ||
| Tightening torque for terminals | ||||
| min | Nm | 6 | ||
| max | Nm | 7 | ||
| min | Ibin | 35.4 | ||
| max | Ibin | 44.3 | ||
| Tightening torque for coil terminal | ||||
| min | Nm | 0.8 | ||
| max | Nm | 1 | ||
| min | Ibin | 0.59 | ||
| max | Ibin | 0.74 | ||
| Max number of wires simultaneously connectable | Nr. | 2 | ||
| Conductor section | ||||
| Flexible w/o lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 70 | ||
| Flexible c/w lug conductor section | ||||
| min | mm² | 1.5 | ||
| max | mm² | 70 | ||
| Power terminal protection according to IEC/EN 60529 | IP20 front | |||
| Mechanical features | ||||
| Operating position | ||||
| normal | vertical plan | |||
| allowable | ±30° | |||
| Fixing | Screw / DIN rail 35mm | |||
| Weight | g | 2460 | ||
| Operations | ||||
| Mechanical life | cycles | 15000000 | ||
| Electrical life | cycles | 800000 | ||
| Safety related data | ||||
| Performance level B10d according to EN/ISO 13489-1 | ||||
| rated load | cycles | 800000 | ||
| Mirror contats according to IEC/EN 609474-4-1 | yes | |||
| EMC compatibility | yes | |||
| AC coil operating | ||||
| Rated AC voltage at 50/60Hz, 60Hz | ||||
| min | V | 100 | ||
| max | V | 250 | ||
| AC operating voltage | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| pick-up | ||||
| min | %Us | 80 Us min | ||
| max | %Us | 110 Us max | ||
| drop-out | ||||
| max | %Us | ≤70 Us min | ||
| of 50/60Hz coil powered at 60Hz | ||||
| pick-up | ||||
| min | %Us | 80 Us min | ||
| max | %Us | 110 Us max | ||
| drop-out | ||||
| max | %Us | ≤70 Us min | ||
| AC average coil consumption at 20°C | ||||
| of 50/60Hz coil powered at 50Hz | ||||
| in-rush | VA | 70…175 | ||
| holding | VA | 1.7…3.5 | ||
| of 50/60Hz coil powered at 60Hz | ||||
| in-rush | VA | 70…175 | ||
| holding | VA | 1.7…3.5 | ||
| of 60Hz coil powered at 60Hz | ||||
| in-rush | VA | 70…175 | ||
| holding | VA | 1.7…3.5 | ||
| Dissipation at holding ≤20°C 50Hz | W | 1.3…1.5 | ||
| DC coil operating | ||||
| DC rated control voltage | ||||
| min | V | 100 | ||
| max | V | 250 | ||
| DC operating voltage | ||||
| pick-up | ||||
| min | %Us | 80 Us min | ||
| max | %Us | 110 Us max | ||
| drop-out | ||||
| max | %Us | ≤70 Us min | ||
| Average coil consumption ≤20°C | ||||
| in-rush | W | 70…80 | ||
| holding | W | 1.3…1.5 | ||
| Max cycles frequency | ||||
| Mechanical operation | cycles/h | 2000 | ||
| Operating times | ||||
| Average time for Us control | ||||
| in AC | ||||
| Closing NO | ||||
| min | ms | 45 | ||
| max | ms | 90 | ||
| Opening NO | ||||
| min | ms | 24 | ||
| max | ms | 60 | ||
| in DC | ||||
| Closing NO | ||||
| min | ms | 45 | ||
| max | ms | 90 | ||
| Opening NO | ||||
| min | ms | 24 | ||
| max | ms | 60 | ||
| UL technical data | ||||
| Yielded mechanical performance | ||||
| for three-phase AC motor | ||||
| 200/208V | HP | 50 | ||
| 220/230V | HP | 50 | ||
| 460/480V | HP | 100 | ||
| 575/600V | HP | 125 | ||
| General USE | ||||
| Contactor | ||||
| AC current | A | 165 | ||
| Short-circuit protection fuse, 600V | ||||
| High fault | ||||
| Short circuit current | kA | 100 | ||
| Fuse rating | A | 200 | ||
| Fuse class | J | |||
| Standard fault | ||||
| Short circuit current | kA | 10 | ||
| Fuse rating | A | 250 | ||
| Fuse class | RK5 | |||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -40 | ||
| max | °C | 70 | ||
| Storage temperature | ||||
| min | °C | -50 | ||
| max | °C | 80 | ||
| Max altitude | m | 3000 | ||
| Resistance & Protection | ||||
| Pollution degree | 3 | |||
| ETIM classification | ||||
| ETIM 8.0 | EC000066 - Power contactor, AC switching | |||
